Thank for the heads-up @deville_56 , I don't understand how OEM can't train their personnel to maintain uniform standard of information, intelligence and processes across dealerships, no wonder they loose customers to FNGs. Now I need to scout all KTM SVCs in Bengaluru for this 1.7L bottle.
SVCs are driving school for freshers. They hire as apprentice from ITIs, let them learn on our bikes and they move on to better options like their own garage or a mechanic with premium brand. Those who stick back gets promoted and still be underpaid and frustrated due to pressure. End result, ruining our machines and bad reputation for the company.

I'd still go for 2 one litre bottles as there would be enough to top up, 390s are oil drinkers. Ours takes approximately 100-150 mL every 1000 km.

Joined
Jul 23, 2020
Messages
273
Likes
446
Location
Coimbatore
I'd still go for 2 one litre bottles as there would be enough to top up, 390s are oil drinkers.
Thats the best choice.
SVCs are driving school for freshers. They hire as apprentice from ITIs, let them learn on our bikes and they move on to better options like their own garage or a mechanic with premium brand. Those who stick back gets promoted and still be underpaid and frustrated due to pressure. End result, ruining our machines and bad reputation for the company.
The biggest problem with ktm is spares availability outside the showroom. Or else most would be doing their service outside.

Thread Starter #228

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,799
Likes
4,219
Location
Trivandrum
The biggest problem with ktm is spares availability outside the showroom. Or else most would be doing their service outside.
Surprisingly, most of the FNGs servicing KTMs have routine parts in stock and they source rest of the parts in no time. Also the insta guy from whom I source spares also got most parts with him. And we have Bajaj showrooms for mechanical parts [cheers].

Joined
Jul 23, 2020
Messages
273
Likes
446
Location
Coimbatore
Surprisingly, most of the FNGs servicing KTMs have routine parts in stock and they source rest of the parts in no time. Also the insta guy from whom I source spares also got most parts with him. And we have Bajaj showrooms for mechanical parts [cheers].
That is not the case here. Oil Services are fine. But any major work is difficult unless the FNG has some ties with the service centre.

Thread Starter #230

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,799
Likes
4,219
Location
Trivandrum
December 2021 - Seat Cover

OE seat cover has been developing cracks for some time and sponge started exposing. Thought of replacing the seats, but thankfully, KTM guys had no clue as usual. @varun2910 suggested redoing it and has done a couple for client bikes while he was working at the SBK garage.

2021-10-02 11-25-27.jpg


Done at A. Balan Upholstery Works. That shop has been there for over 50 years and I have been seeing their name embossed in seats as far as I can remember of. Experience speaks and evident in the outcome, close to original. Price was very, very nominal, just ₹ 450.00.

2021-12-06 12-25-21.jpg


How it looks on bike.

2021-12-06 13-21-43.jpg

Thread Starter #231

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,799
Likes
4,219
Location
Trivandrum
December 2021 - Oil Change

Bought Motul 7100 10W50 1.5 L. MRP ₹ 1,340.00, got for ₹ 1,180.00, from Ex-Jawan. Made in India with new label.

2021-12-03 15-49-21.jpg
2021-12-03 15-49-28.jpg


Oil Filter - JG571014 - ₹ 76.00
Got from Prime Motors.

2021-12-06 12-23-56.jpg


Box inside the box and wrapped in plastic cover.

2021-12-06 12-24-10.jpg


Draining the oil.

2021-12-12 12-53-45.jpg
2021-12-12 12-53-51.jpg


18 mm socket.

2021-12-12 12-54-17.jpg


Strainer.

2021-12-12 12-55-19.jpg

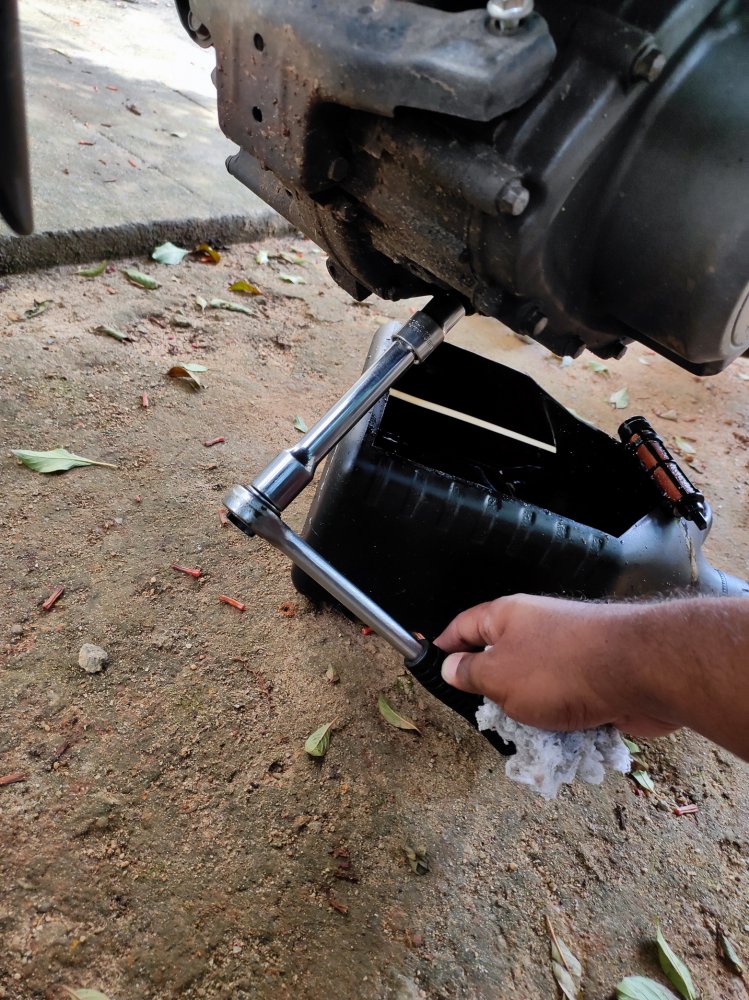

Second drain bolt.

2021-12-12 13-01-19.jpg


13-mm bolt.

2021-12-12 13-01-24.jpg
2021-12-12 13-02-16.jpg


Max drain.

2021-12-12 13-36-46.jpg


Cleaned the strainers with Magsol throttle body cleaner.

2021-12-12 14-47-42.jpg


Had left over 7100 for the extra 200 ml.

2021-12-12 14-47-48.jpg


Cleaned the oil filter chamber.

2021-12-12 14-48-45.jpg


New filter.

2021-12-12 14-49-28.jpg
2021-12-12 14-49-33.jpg
2021-12-12 14-49-36.jpg


Soaked in oil and installed.

2021-12-12 14-51-44.jpg
2021-12-12 14-51-58.jpg
2021-12-12 14-52-31.jpg


Strainers installed.

2021-12-12 15-52-01.jpg
2021-12-12 15-56-58.jpg


Strainer cap needs replacement next time.

2021-12-12 15-57-01.jpg
2021-12-12 15-56-58_1.jpg


Ready to pour.

2021-12-12 16-01-17.jpg
2021-12-12 16-02-57.jpg


This is how 1.5 L looks on the bike.

2021-12-12 16-18-40.jpg


Resetting the service reminder. Select odo mode and service reminder on the top and press hold the set button till it resets back to 5000 km.

2021-12-12 16-36-24.jpg
2021-12-12 16-36-29.jpg


Checked on air filter. Less than 5k km run.

2021-12-06 13-01-40.jpg

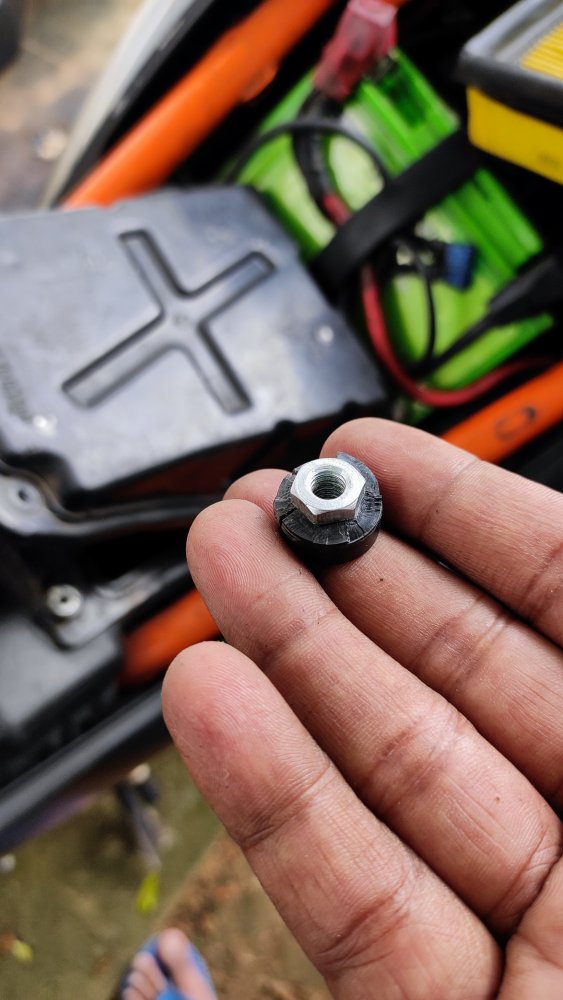

Air filter box nut/mounts broken.

2021-12-06 13-03-11.jpg
2021-12-06 13-03-27.jpg


Fixed with superglue.

2021-12-06 13-07-09.jpg

Joined
Feb 17, 2017
Messages
45
Likes
79
Location
Kollam, Kerala
Once a service advisor from KTM told me that they increased the engine oil quantity to 1.8L.
In my 2017 D390, the oil level won't be correct even if i fill 1.8L

Thread Starter #235

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,799
Likes
4,219
Location
Trivandrum
Yes, but the glass window will be empty. I think some oil is getting stuck between the pumps. (Suction pump and Force pump)
When we faced similar issue, I added 300 ml and corrected the level. Everything was fine until it showed overfilled and the level didn't go down after starting. Drained 300 ml and level was correct again. Then again it showed low. Friend's RC390 had same issue, which resolved by cleaning the pumps, so we did the same.

Joined
Feb 17, 2017
Messages
45
Likes
79
Location
Kollam, Kerala
When we faced similar issue, I added 300 ml and corrected the level. Everything was fine until it showed overfilled and the level didn't go down after starting. Drained 300 ml and level was correct again. Then again it showed low. Friend's RC390 had same issue, which resolved by cleaning the pumps, so we did the same.
Exactly.
Cleaning the pumps as in opening the engine and cleaning the oil pumps?
Here is the link to the official e-manual from KTM for the Duke 390 where they have written the Engine Oil Capacity as 1.8L.

Last edited:
Thread Starter #237

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,799
Likes
4,219
Location
Trivandrum
Exactly.
Cleaning the pumps as in opening the engine and cleaning the oil pumps?
Here is the link to the official e-manual from KTM for the Duke 390 where they have written the Engine Oil Capacity as 1.8L.
Can be cleaned by opening both side casings.
Done at Motonerdz. There was some blockage/debris that resulted in vague oil levels.

1.8 L capacity mentioned is the total capacity. 1.65 L is mentioned as service capacity, which is what is evacuated during regular oil changes and refilled. 1.8 needed only when the engine is fully disassembled. This is where they used to fill 1.5 L.

Thread Starter #239

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,799
Likes
4,219
Location
Trivandrum
KTM in our area has started a standalone spare parts outlet now. The service center no longer sell parts over the counter.
However, we can order any part from their Spare Parts Store even if it's not in stock.

View attachment 301878
Welcome move. Most of the workshops here used to get spares from KTM Kollam as the dealer here wasn't in good terms with anyone, be it the garages, be it the customers.

Meanwhile, found another online vendor selling KTM parts, KTM SPARES. Don't know how good they are, based in Kanyakumari and provided shipping across.

BTB, KTM started their third service centre in Trivandrum near Technopark. If it's Deedi again, nothing to be positive about.
