PowerPig! KTM Duke 390 - October 2014


Thread Starter #211

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,971
Likes
4,807
Location
Trivandrum
August 2021 - ABS Controller Shopping

Pinged MySpareMarket guy for ABS module and he replied with the list of available models and pictures. Offer price was even cheaper this time. Unfortunately, older versions were not available.

Available options were:
93342031000 - 2017-18 Duke 390.
93542031000 - 2017-18 RC390
93512031100 - 2018 Duke/RC 390
JF131815 - Dominar



Went ahead and ordered the Duke 2017 model's unit. He agreed to replace if incompatible.

2021-08-11 17-47-52.jpg
2021-08-11 17-47-57.jpg
2021-08-11 17-48-01.jpg
2021-08-11 17-48-04.jpg
2021-08-11 17-48-12.jpg
2021-08-11 17-48-19.jpg


Installed and tested. No signs of life.

2021-08-13 14-26-59.jpg


Sent back and he replaced with another unit.

2021-08-30 13-37-21.jpg
2021-08-30 13-37-27.jpg
2021-08-30 13-37-30.jpg
2021-08-30 13-37-32.jpg
2021-08-30 13-37-36.jpg


Returned that and he refunded the amount. Wanted to try other part numbers as well, but didn't want to waste his time and money.

Compared to the 2014-15 controller, removed from Fayad's RC.

2021-08-31 17-46-55.jpg

Thread Starter #212

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,971
Likes
4,807
Location
Trivandrum
September 2021 - Small, Yet Significant Hack

Visited the dealer a couple of times for 2017 model clutch lever boot, but they seemed the least interested in procuring one. Only hope now is Bajaj launching adjustable levers on Dominar soon and ordering one via Bajaj dealer. Part number is JG161009, in case anyone wanna try with their KTM dealer.

This is how non-adjustable model's boot messing with the adjustable lever. Sometimes, it's so much irritating and feels as of gonna jam between the lever.

2021-09-06 10-52-13.jpg


Grabbed the detailing knife and made a cut.

2021-09-06 10-56-59.jpg

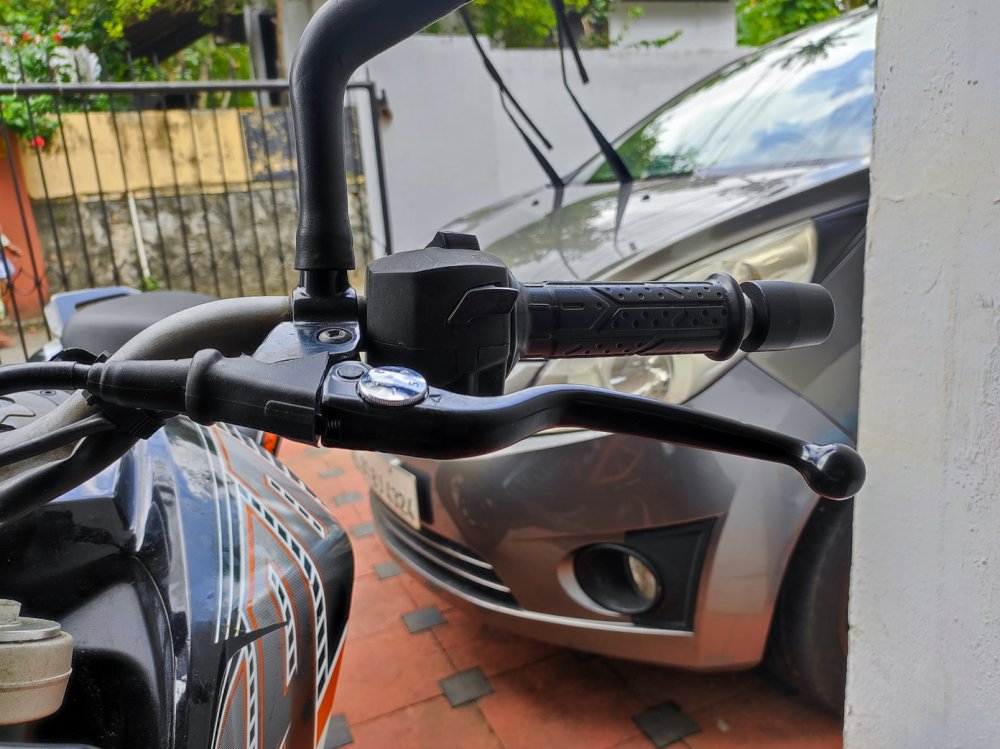

Decent cut and made life a bit easy.

2021-09-06 10-57-03.jpg
2021-09-06 10-57-21.jpg

Thread Starter #213

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,971
Likes
4,807
Location
Trivandrum
September 2021 - Messing with the Donor ABS Controller

Had the ABS controller removed from the RC390. It was an already repaired unit, so breaking open wasn't a hard.

2021-09-13 12-25-57.jpg


90142031000 - The controller is same as ours.

2021-08-31 17-56-26.jpg


September 2013 make.

2021-08-31 17-56-20.jpg


Found out the issue was with the rear section, but further diagnosis and repair was beyond my capacity. Friend of mine (read, his dad) runs a ECU and auto electronics repair shop and contacted him, and he said it can be repaired but procuring parts would take due to the pandemic, may be months. So, decided not to repair for the time being.

2021-09-13 12-26-07.jpg


Board sits on one side and motor on the opposite side.

2021-09-13 12-27-56.jpg


Motor side is secured with inverted torx bolts.

2021-08-16 10-13-02.jpg


There was so much itch to open that side, so ended up ordering a set of Yato YT-0520. I don't think there would be use with this after this madness. ₹499 + ₹40 shipping from Flipkart.

2021-09-13 12-29-54.jpg


Yato is a Polish brand with their biggest manufacturing unit in Shanghai, but no mention of country of origin anywhere.

2021-09-13 12-30-01.jpg


Smaller bits for 1/4" drive and bigger ones for 3/8" drive. Also included is a 1/4"-3/8" conversion bit. Ordered a Stanley 3/8"-1/2" conversion bit to complete this convertor collection [lol]

2021-09-13 12-30-13.jpg
2021-09-13 12-30-21.jpg


Just needed this E5 bit.

2021-09-13 12-31-09.jpg


Unbolted.

2021-09-13 12-29-09.jpg


Speciality torx bolts.

2021-09-13 12-31-53.jpg


Inside the cover. Magnet and bearing and a lot of brush dust.

2021-09-13 12-32-19.jpg


Motor armature and winding. Seven-pole motor.

2021-09-13 12-32-26.jpg


Brush sits under. spring loaded.

2021-09-13 12-43-03.JPG


Lift the spring to release the brush.

2021-09-13 12-45-13.JPG


Brush wear difference.

2021-09-13 12-45-43.JPG


Number K69. It's copper carbon brush for hard and slow wearing. Tried sourcing, toured the entire tool repairing stretches of Trivandrum, majority have not eeven seen them. One veteran guy asked not to go for regular carbon brush as it will vanish in no time.

2021-09-13 14-49-26.JPG


Dirt inside the cover, before cleaning.

2021-09-13 12-49-56.JPG

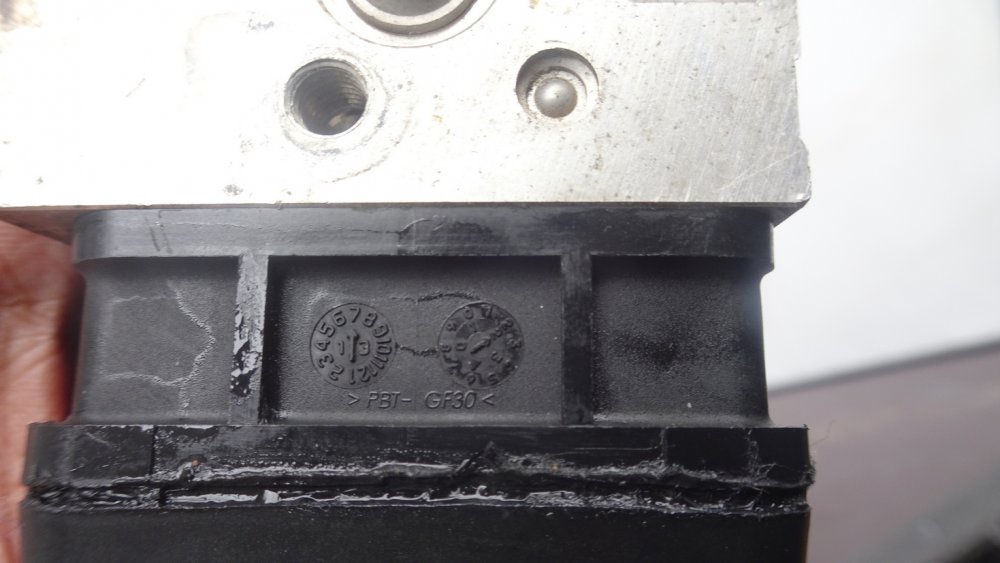

Back to square one. Closed and sealed with gasket maker.

2021-09-13 14-49-03.JPG

2021-09-15 22-06-10.jpg


Testing.

2021-09-13 13-04-46.jpg


Speedo and odo working fine. No ABS.

2021-09-13 13-45-41.jpg


Decided to install this unit for the time being. Will get another one or repair this at a later time. Prime motive is to keep track of the miles clocked.

2021-10-02 11-03-39.jpg

Thread Starter #214

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,971
Likes
4,807
Location
Trivandrum
October 2021 - ABS Replacement - Parts

ABS Control Unit. Sealed and tie shut.

2021-10-02 12-53-48.jpg
2021-10-02 12-53-52.jpg
2021-10-02 12-53-57.jpg
2021-10-02 12-54-08.jpg


Copper Washer for bango bolts. Needs 8 of them, in case all damaged. Bought from KTM Probiking Service.

DE191010 - ₹ 5.40/piece (₹ 27.00 for pack of 5).

2021-08-02 16-19-35.jpg

2021-08-02 16-19-25.jpg


Got 5 more from Bajaj spares (A-One). Same for most Bajaj model front brake banjos. Went there in search for another copper washer and bought these as there were 2 bikes being worked on.



KTM and Bajaj packing.



KBX Super 5 DOT-4 Brake Fluid - 250 ml - MRP ₹ 110.00, got for ₹ 105.00 from Spark Automobiles.

250 ml more than enough to bleed both brakes.

2021-10-02 14-33-02.jpg
2021-10-02 14-33-08.jpg
2021-10-02 14-33-11.jpg


An old rug or kitchen towel. Need to deal with a lot of fluid spill.

2021-10-02 12-21-59.jpg


Bonus - Coolant change

Motul Motocool Expert - ₹ 385.00 (Got for ₹ 350.00 from Ex-Jawan)

2021-10-02 17-10-15.jpg


Copper Washer for Water Pump - 39166511 - ₹ 3.00/piece.
All liquid-cooled Bajaj models got the same part, but Bajaj spare guys have never seen'em.

2021-10-02 17-03-35.jpg

Thread Starter #215

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,971
Likes
4,807
Location
Trivandrum
October 2021 - ABS Replacement - Disassembly - Part 1

Disconnect battery before the start.

2021-10-02 11-26-13.jpg

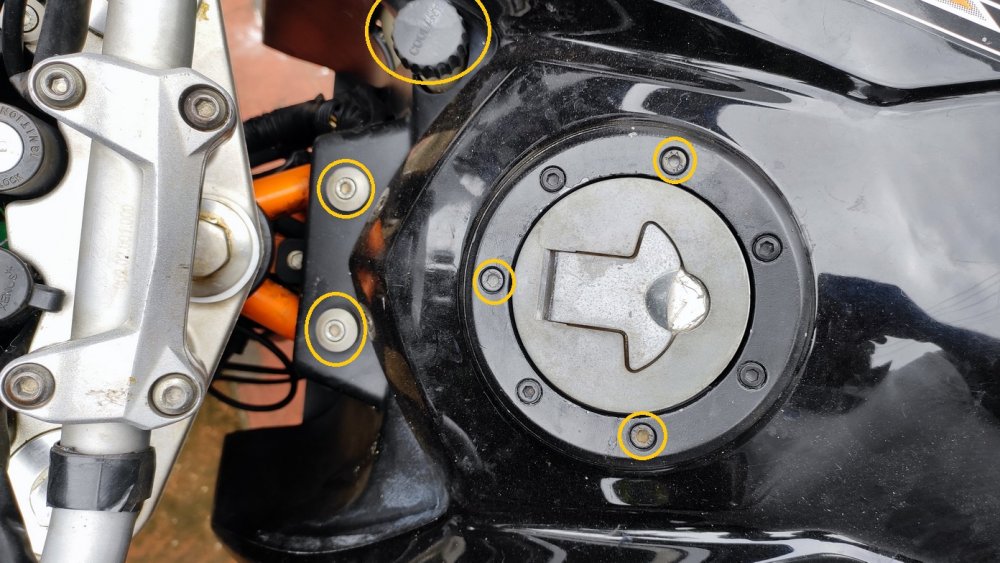

Remove all encircled bolts and coolant tank cap.

2021-10-02 11-35-39.jpg
2021-10-02 11-38-28.jpg
2021-10-02 11-39-03.jpg


Pop open the fuel lid and remove the tank cover.

2021-10-02 11-44-34.jpg


Lock the tank to prevent evaporation.

2021-10-02 11-45-56.jpg

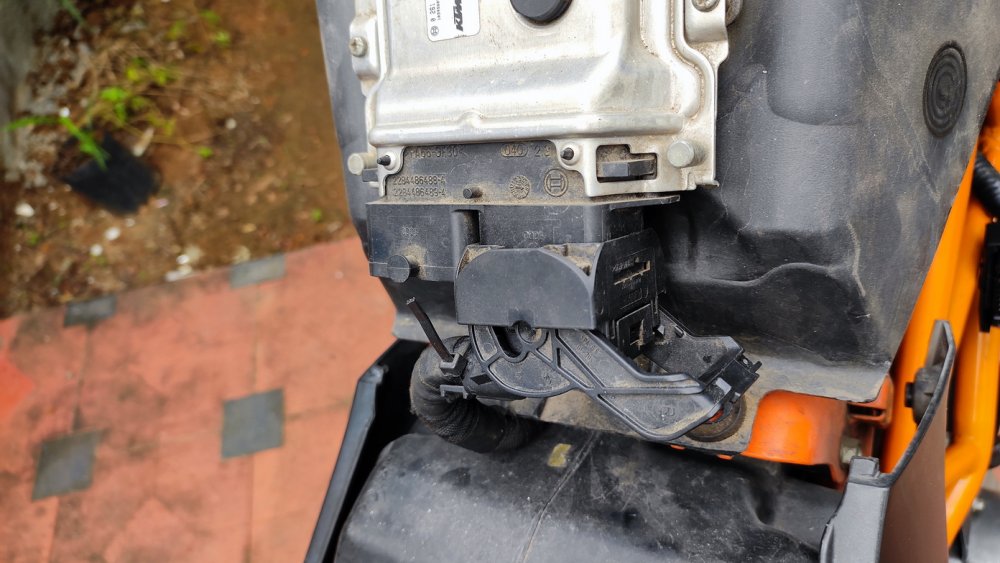

Disconnect ECU.

2021-10-02 11-47-20.jpg
2021-10-02 11-47-27.jpg


Connector to fuel tank for fuel pump and float.

2021-10-02 11-48-16.jpg


Fuel line to throttle body. Disconnect both of them and remove the tank.

2021-10-02 11-48-18.jpg


Secure the fuel line above fuel level. Plug the end if there is too much fuel.

2021-10-02 11-51-25.jpg


First visual of the ABS unit. RR unit and flasher unit hinders access.

2021-10-02 11-51-49.jpg


Remove the Allen bolt

2021-10-02 11-51-53.jpg


and flasher assembly comes off with the clamp. Flasher alone can be removed by just pulling, but better with everything removed.

2021-10-02 11-53-47.jpg


DC Flasher - JG402002 - Common for all Bajaj/KTM models with LED indicator.

2021-10-02 11-53-57.jpg


Connector side.

2021-10-02 11-54-01.jpg


RR unit. Off two bolts and it comes off. Don't forget the ground connection during reinstall.

2021-10-02 11-56-44.jpg


RR unit, front view. Negative out is grounded.

2021-10-02 11-57-07.jpg


Positive out coupler. Disconnect that. Other connector is the previously disconnected tank connector.

2021-10-02 11-58-27.jpg


Stator connector. Disconnect this as well.

2021-10-02 11-58-41.jpg


RR unit is all yours.

2021-10-02 11-59-16.jpg


Part number JG402003.

2021-10-02 12-00-03.jpg

Thread Starter #216

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,971
Likes
4,807
Location
Trivandrum
October 2021 - ABS Replacement - Disassembly - Part 2

2021-10-02 12-42-30.jpg


The shot ABS unit. Three 10-mm bolts, middle and LH ones easily accessible.

2021-10-02 12-13-38.jpg


RH side hindered by coolant tank and ignition coil. Both need to be removed.

2021-10-02 12-17-45.jpg
2021-10-02 12-19-22.jpg


Access to RH side bolt. Tricky and only an open-ended wrench will fit in.

2021-10-02 12-20-59.jpg


Brake hoses needs to be removed before removing the unit, but make sure all mounting bolts can be undone before that. Make a note of the hose positions before removing them.

2021-10-02 12-22-04.jpg

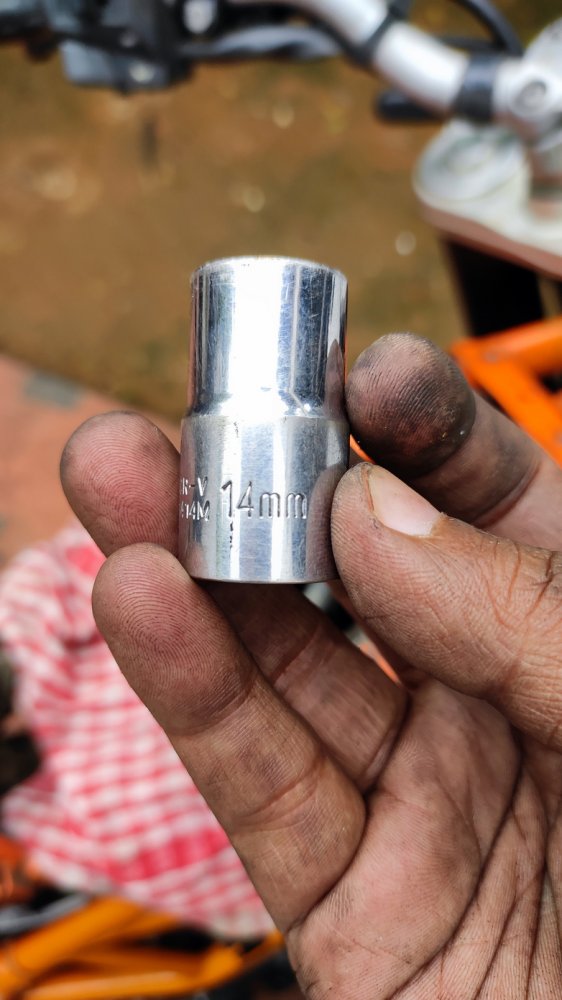

14-mm socket.

2021-10-02 12-23-04.jpg


Remove one by one. Use the rug to prevent spillage everywhere.

2021-10-02 12-26-03.jpg


Collect the fluid.

2021-10-02 12-28-54.jpg


Banjo bolt and copper washers.

2021-10-02 12-28-20.jpg
2021-10-02 12-28-24.jpg


Once all 4 hoses are disconnected and drained, wrap with the towel and clear if off the field.

2021-10-02 12-33-51.jpg


Gotta remove spark plug cap to make room to pull the unit out.

2021-10-02 13-04-12.jpg


ABS controller with clamp.

2021-10-02 12-37-22.jpg


Install location.

2021-10-02 12-37-18.jpg


Divorcing the clamp. Two 8 mm M6 bolts.

2021-10-02 12-50-14.jpg
2021-10-02 12-50-17.jpg


Comes free. Think the explosion was due to short circuit because of water entry due to poor sealing. 2017 model ABS unit bought previously had a sealed cover.

2021-10-02 12-51-19.jpg


Old dead vs partially working old.

2021-10-02 12-53-40.jpg


Bullet hole [lol]

2021-10-02 12-54-15.jpg

Thread Starter #217

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,971
Likes
4,807
Location
Trivandrum
October 2021 - ABS Replacement - Install

Cleaning the mess.

2021-10-02 12-59-43.jpg


Clamp.

2021-10-02 12-59-48.jpg


Mounted on clamp.

2021-10-02 13-02-05.jpg


Ready to install.

2021-10-02 13-03-21.jpg


Squeeze in.

2021-10-02 13-04-17.jpg


En position.

2021-10-02 13-06-17.jpg


Three 10-mm bolts and washers.

2021-10-02 13-07-59.jpg


Bolted down.

2021-10-02 13-12-23.jpg


Spark plug hole.

2021-10-02 13-14-44.jpg

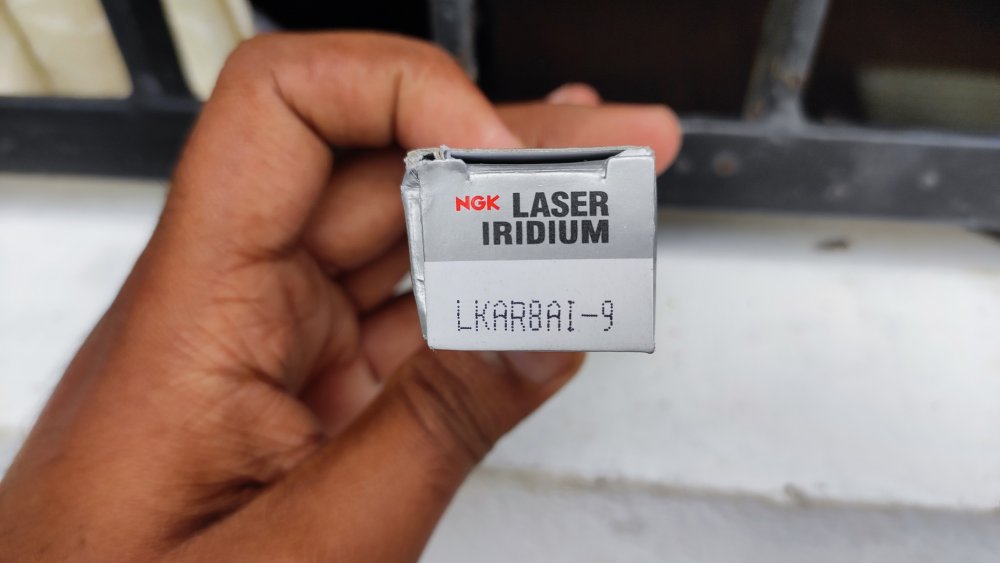

Bonus - can check the plug condition. Decent condition, but installed long back.

2021-10-02 13-18-13.jpg


Connector for ABS unit. Originally had locking latch, broken by one of the morons who worked on the bike.

2021-10-02 13-23-00.jpg
2021-10-02 13-23-04.jpg


Cover that fell off.

2021-10-02 13-23-23.jpg
2021-10-02 13-23-41.jpg


Covered and tied.

2021-10-02 13-25-49.jpg


Plug in the unit as well as the spark plug connector.

2021-10-02 16-17-22.jpg


Bango bolts and copper washers. Dirty ones are for rear ones. Rear fluid tends to rot early.

2021-10-02 13-28-39.jpg


Old vs new. Old one was thicker and in good shape, so retained the old ones. The ones on RC390 were in pretty bad shape and fluid was leaking, and so replaced them.

2021-10-02 13-32-42.jpg
2021-10-02 13-32-51.jpg


A washer on either side of the hose.

2021-10-02 13-33-55.jpg


Inner one tends to fall off, so better to install washer first and then the banjo.

2021-10-02 13-43-47.jpg


Plumbing done.

2021-10-02 14-35-27.jpg


Bleeding. Tap the bolt lightly before undoing. First time changing fluid in 7 years.

2021-10-02 16-10-04.jpg


Fill it, pump it.

2021-10-02 15-58-47.jpg


Went well without any drama, took less than 5 mins, straight.

2021-10-02 15-58-42.jpg


Rear bleeding. Break loose using a 6-point socket as spanner tend to slip and damage the bleeding screw.

2021-10-02 14-40-02.jpg


11 mm for rear. 8 mm for front.

2021-10-02 14-40-07.jpg


Rear wasn't pumping.

2021-10-02 14-40-25.jpg


Rear brake fluid reservoir.

2021-10-02 14-41-00.jpg


Old dirty fluid. Very much foul smelling.

2021-10-02 14-41-08.jpg


Tried reverse bleeding. Nothing budged. Tried removing the rear MC, but the bolt was stuck and hardly accessible, only an open-ended straight spanner will fit, but kept slipping, rounding the nut.

2021-10-02 15-58-38.jpg


Removed the hose from the MC and this black muck fell off, indicating there was even more inside the MC. Ordered a 10-mm combination spanner from Amazon right away.

2021-10-02 16-14-11.jpg


Clean the garage and mess.

2021-10-02 16-18-45.jpg


Assemble everything in reverse order. Plug all connectors and better. Do a test drive to see everything is in working. While installing, tumbled the tank losing all the petrol [cry].

2021-10-03 10-12-24.jpg

Thread Starter #218

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,971
Likes
4,807
Location
Trivandrum
October 2021 - Coolant Change (Bonus Track)

Continuation from the ABS job. Bike wasn't assembled back, still stripped.

The water Pump and drain bolt.

2021-10-02 16-24-55.jpg


Used an 8-mm socket to remove the drain bolt and drained the coolant.

2021-10-02 16-26-34.jpg


Drain bolt with gasket aka copper crush washer.

2021-10-02 16-28-17.jpg


Old coolant collected.

2021-10-02 16-27-50.jpg


Radiator cap removed. Needed some extra effort to remove as it was jammed. Used the old school jumbo pipe wrench.

2021-10-02 16-27-21.jpg


The exact opposite side of the radiator cap on the LH side is the air vent.

2021-10-02 16-29-02.jpg


Removed the bolt to open up the vent. .

2021-10-02 16-29-51.jpg


No need to remove the bolt completely, it's slotted on the side, so will work even with half or one third way out.

2021-10-02 16-30-02.jpg


Flushed the radiator. Let the water flow freely, didn't force it. Might get the impeller damaged, very sensitive.

2021-10-02 16-32-13.jpg


Let the water drain completely.

2021-10-02 16-33-23.jpg


Coolant tank. Removed and cleaned the coolant tank since it was accessible.

2021-10-02 16-58-59.jpg


Coolant tank is mounted on this rubber grommet and secured with a 10-mm bolt.

2021-10-02 17-00-36.jpg


Retained the old washer since it was in good shape.

2021-10-02 17-03-52.jpg


Secured back the coolant drain bolt.

2021-10-02 17-06-51.jpg


Old vs new, both Motocool Expert, 4 year 20-25k km old.

2021-10-02 17-11-46.jpg


Installed the reservoir and used a funnel to fill up coolant.

2021-10-02 17-12-53.jpg


Don't spill the coolant, I said don't [lol]

2021-10-02 17-14-41.jpg


Keep an eye on the air vent. It will reach the brim the same time it's about to overflow. Install the vent bolt back.

2021-10-02 17-14-47.jpg


Radiator cap. Install them too.

2021-10-02 17-15-04.jpg
2021-10-02 17-15-15.jpg


Fill the reservoir to the max, it will take exactly 1 L coolant till this point, and won't end there.

2021-10-02 17-16-29.jpg


Start up and idle (or ride or rev)

2021-10-02 17-53-16.jpg


till the temperature gauge shoots up

2021-10-02 18-05-07.jpg

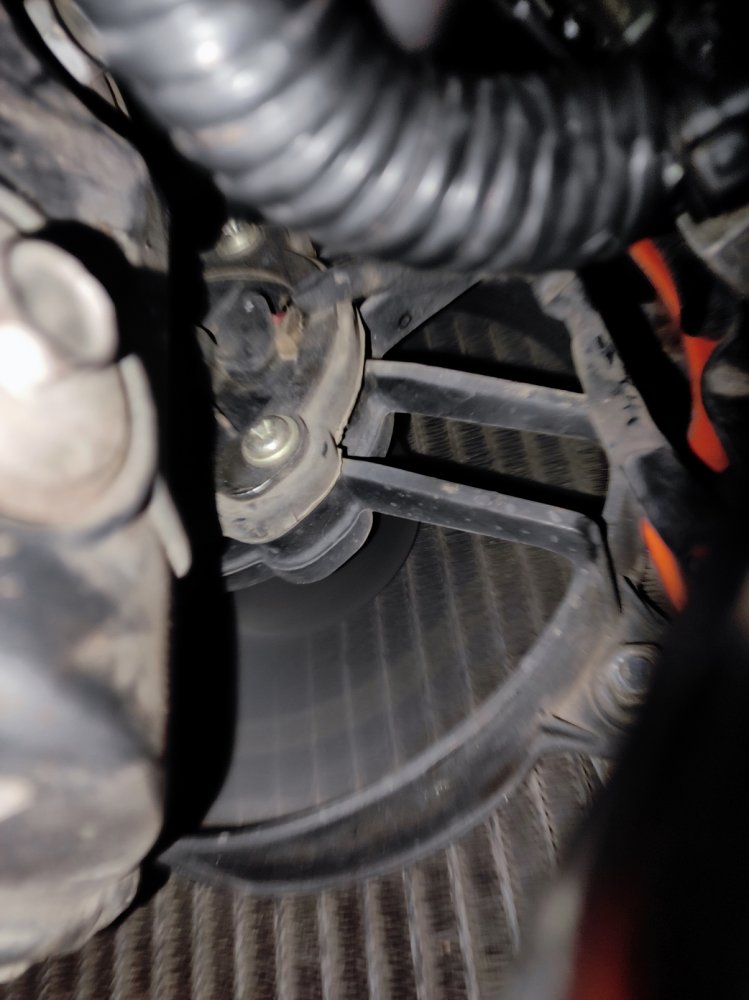

and the radiator fan kicks in. Took a good 15 minutes. With old coolant it took less than 10 minutes. (Check once in a while whether the fan is functional, fail rate high with initial KTM fans).

2021-10-02 18-05-38.jpg


Corrected coolant level.

2021-10-03 09-59-51.JPG


Had some left from another change. Manual says 1.1 L.

2021-10-03 09-51-39.jpg


Topped up to max level.

2021-10-03 10-03-24.JPG


Reassembled everything and done (without rear brakes [evil]).

2021-10-03 19-38-31.jpg

Thread Starter #220

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,971
Likes
4,807
Location
Trivandrum
Kindly wear a gloves bro , when working with brake fluid.
Want to, but forgets every time. Doc warned one time. I developed skin sensitivity to most of these stuffs over time. Brake fluid causes burning sensation, and anything with aerosol causes itching and redness. Just last Friday went to dermatologist after accidentally spraying throttle body cleaner on left hand. After all these, I advise every one to be cautious [frustration].

Thread Starter #221

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,971
Likes
4,807
Location
Trivandrum
October 2021 - Rear Brake Master Replacement

Combination spanner arrived. ₹ 39.00 with free shipping from Amazon. Only tool that fits in the space. Open-ended will slip and rings won't accommodate in the right space.

2021-10-06 11-40-34.jpg
2021-10-06 11-41-53.jpg


Due to impatience, ended up breaking the head of one of the bolts. Removed the second one without issue. No photos of bolt location due to this bizarre incident. MC connected to pedal via a pin, secured with split pin.

2021-10-08 15-33-53.jpg


MC finally free.

2021-10-08 15-34-07.jpg


All muck inside. No surprise it is jammed.

2021-10-08 15-34-33.jpg
2021-10-08 15-34-36.jpg


Rust as well.

2021-10-08 15-34-44.jpg

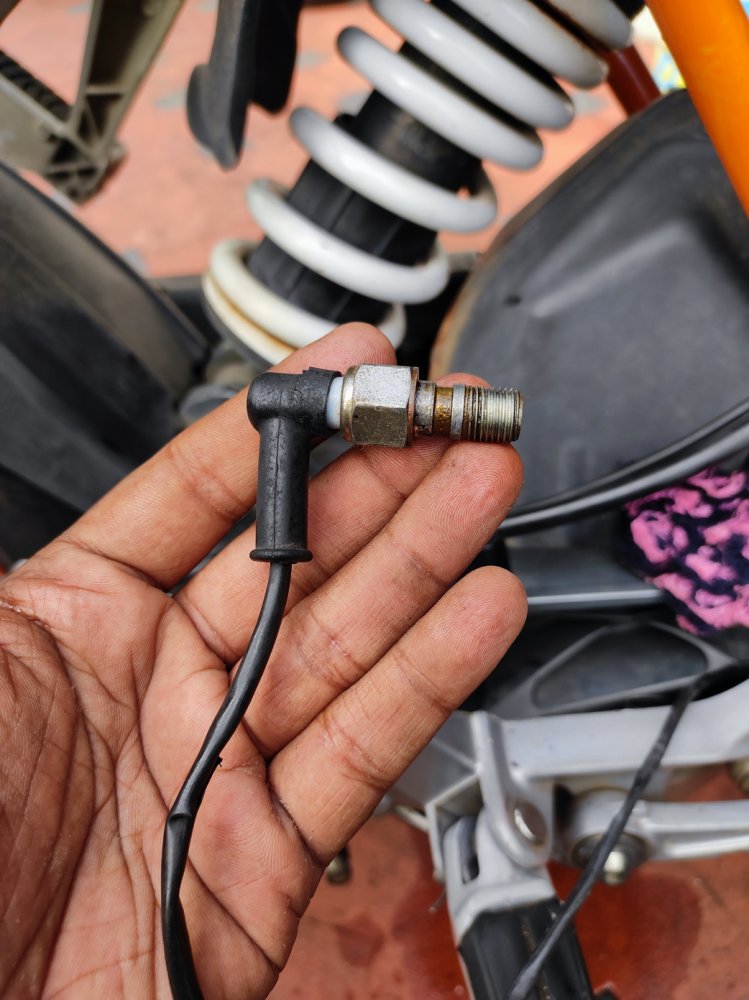

Brake light switch was integrated into the banjo bolt, pressure type. It's a bit tricky to remove without removing the MC from the bike.

2021-10-08 15-39-27.jpg
2021-10-08 15-40-31.jpg


The rear master cylinder.

2021-10-08 15-40-40.jpg
2021-10-08 15-40-44.jpg


Tried repairing.

2021-10-08 15-40-50.jpg


Circlip pliers and the circlip.

2021-10-08 16-42-44.jpg
2021-10-10 15-44-22.jpg


Disassembled and cleaned.

2021-10-10 15-37-28.jpg


Still jammed.

2021-10-10 15-41-10.jpg


Went to Prime Motors, the neighbourhood Bajaj/KTM service centre. Compared Duke MC with Dominar's and both were same (as expected).

Rear Master Cylinder - DK151031 - ₹ 740.00

2021-10-12 14-22-21.jpg


New vs old.

2021-10-12 14-22-37.jpg


Other views. Rubber cover was Brembo part.

2021-10-12 14-22-46.jpg
2021-10-12 14-23-18.jpg
2021-10-12 14-23-40.jpg
2021-10-12 14-23-43.jpg


Bajaj Brake Fluid DOT4 (100 ml) - 36DH4061 - ₹ 65.00

2021-10-12 14-24-06.jpg
2021-10-12 14-24-11.jpg
2021-10-12 14-24-15.jpg


Installed the MC with single bolt. Broken shaft piece of the second bolt prevents moving around. Removing the broken piece is a mess, have to remove the foot rest holder, which needs removing the swingarm axle, which needs the bike to be suspended on rope.

2021-10-12 14-36-35.jpg


Banjo bolt cleaned.

2021-10-12 15-02-00.jpg
2021-10-12 15-03-03.jpg


Replaced the split pins with retaining R clips, Honda part, ₹ 2.50/piece.

2021-10-12 16-10-52.jpg
2021-10-12 16-11-28.jpg


Everything put back and bled. It was a cakewalk, took very little time.

2021-10-12 15-13-49.jpg


Filled to level.

2021-10-12 15-13-52.jpg


Deformed diaphragm.

2021-10-12 15-27-22.jpg


Can be put back to shape easily.

2021-10-12 15-28-03.jpg


All done.

2021-10-12 15-28-57.jpg


Finally, a proper test ride to check everything is in line. Glad to see working speedo. Meter showed 27 kmpl for a 10 km trip.

2021-10-12 16-32-01.jpg

Thread Starter #222

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,971
Likes
4,807
Location
Trivandrum
October 2021 - Anti Slip Adventure Foot Rest

Bought from My Spare Market. Original KTM part. Paid ₹ 1,600.00 for a pair.

2021-10-22 16-46-07.jpg
2021-10-22 16-46-21.jpg
2021-10-22 16-52-22.jpg
2021-10-22 16-52-30.jpg
2021-10-22 16-52-37.jpg


Comparison with stock foot peg.

2021-10-22 16-52-09.jpg
2021-10-22 16-52-15.jpg


Comparison with 200NS (replica) peg.

2021-10-22 16-52-51.jpg


Installed.

2021-10-22 17-16-07.jpg
2021-10-22 17-15-55.jpg


Surface area is more and flat. Feels odd at first after being used to stock foot rest for years, but feels more comfortable in relaxed mode and a bite more confident in dodging bad patches.

2021-10-22 17-16-11.jpg

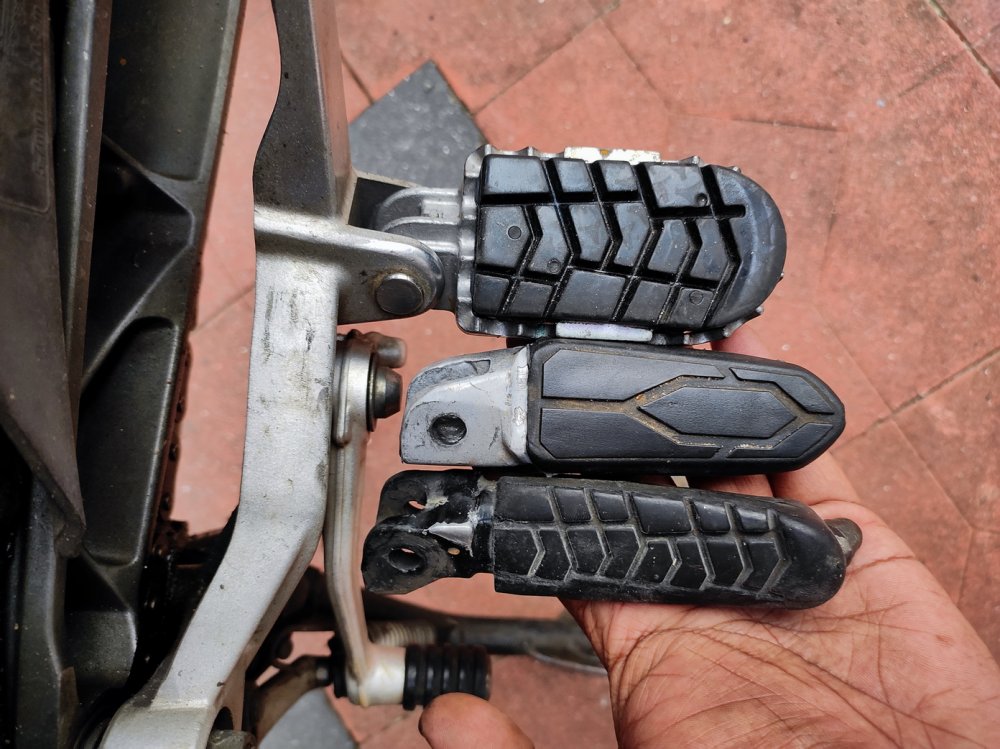

All 3 together.

2021-10-22 17-17-48.jpg

2021-12-12 13-08-13.jpg


Adventure mode [evil]

2021-12-12 13-09-09.jpg


Just remove the 8-mm nut and the retaining clamp.

2021-10-22 16-46-21.jpg

2021-12-12 13-10-50.jpg
2021-12-12 13-10-56.jpg


Tilted the bike holding the foot rest, forgot about the bull spikes [frustration]

2021-12-12 13-25-44.jpg

Thread Starter #224

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,971
Likes
4,807
Location
Trivandrum
December 2021 - Spark Plug Replacement

Bought NGK Laser Iridium plugs (again).

2021-12-03 15-51-22.jpg


LKAR8AI-9 .

2021-12-03 15-51-35.jpg


Made in Japan. Huge price bump from 2018. It was ₹ 280.00 then. Now it's ₹ 435.00. Got from Amruth Auto Spares, NGK two-wheeler plug dealer. Normally, they would offer 5-10% off on NGK plugs, but nothing significant for Iridium, ₹ 5.00.

2021-12-03 15-51-28.jpg


Needle tip.

2021-12-03 15-52-52.jpg
2021-12-03 15-53-14.jpg


Installation. Hard to reach and deep spark plug adapter. Pull it out, bit tricky with tank on, very little room.

2021-12-06 12-28-24.jpg
2021-12-06 12-29-15.jpg


Spark plug wrench from KTM tool kit.

2021-12-06 12-30-00.jpg


13-mm socket to break it loose.

2021-12-06 12-30-06.jpg


Spark plug wrench length is how deep the plug sits.

2021-12-06 12-36-09.jpg


Old plug. Four years old and clocked at least 18k km.

2021-12-06 12-32-29.jpg


Old vs new.

2021-12-06 12-33-24.jpg


@vijesh_360 and @Mr_Many_Places Found the 1.7 L at friend's SBK garage, bought in by the customer from KTM spares. Checked manuals and they were saying 15W50 [lol]. OEs are the biggest hypocrites.

2021-12-05 16-44-29.jpg
2021-12-05 16-44-35.jpg


Attachments

Last edited:
Joined
Oct 28, 2021
Messages
46
Likes
38
Location
Bengaluru
Thank for the heads-up @deville_56 , I don't understand how OEM can't train their personnel to maintain uniform standard of information, intelligence and processes across dealerships, no wonder they loose customers to FNGs. Now I need to scout all KTM SVCs in Bengaluru for this 1.7L bottle.


Top Bottom
