Excellent Update as always guys. You're some damm wizards when it comes to infusing Life in Forgotten scooters! The LED solder work was so intricate!.

BTW, Deville & Panache & Others,
I am planning a 200Km+200KM Trip on Scooter Activa. What Mods & Precautions you do suggest?
Make sure the air pressure is correct ,and as it is a continous run ,after a 50km ,check the pressure again.

Also make sure the overall vehicle health is good (All fluids,as it is an activa,the fork health as well as suspension health needs to be ensured),else it can cause your health a strain.


bhvm

Honoured Member
Joined
Oct 15, 2011
Messages
5,289
Likes
4,818
Location
Some Village
How to check the condition of Suspension & Forks at home bro?
Yes it will be continuous 200KM. We start at 4AM, reach place by 10~10.30 AM. Maybe a breakfast break in between.

Next day we take the same track back home.

Joined
Aug 15, 2016
Messages
69
Likes
132
Location
Kerala
Deville,
The oil sensor switch rework is terrific.[clap]
Can you please trace the circuit with values and post it for the benefit of all (read "me"). This principle can be extended for a host of other applications also.

Due to time constraints, I havent touched the scooter for some time. In my scooter also , some connectors are loose. I have sourced some connectors but not replaced it. Presently everything is working fine except the fuel sensor float which is having loose connection.

The deadline for my scooter work is on Jan 1 . Since only minor works remain I'm getting lazy.

Joined
Aug 15, 2016
Messages
69
Likes
132
Location
Kerala
I am planning a 200Km+200KM Trip on Scooter Activa. What Mods & Precautions you do suggest?
I have done a few trips on an Activa. The maximum distance on a single day was approx 200kms (alleppey to Palakkad). Actually i did not do any check, but it is better to ckeck whether scooter has sufficient oil

Thread Starter #81

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
3,008
Likes
4,874
Location
Trivandrum
Deville,
The oil sensor switch rework is terrific.[clap]
Can you please trace the circuit with values and post it for the benefit of all (read "me"). This principle can be extended for a host of other applications also.
Will check next time. I think it is just basic on/off action as the output was not fluctuating the time I tested it manually in different float positions. The capacitor was for initial light up and may be in case low oil and switch on for prolonged time enough to charge the capacitor.

Thread Starter #82

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
3,008
Likes
4,874
Location
Trivandrum
March/April 2017:

Usage was very little. One fine day pickup was lost, not even crossing 20 kmph. Sadly, nearby Kinetic-accepting mechs closed shops and new guys refused to take it in. Our Honda guy was not ready to take it in, but he took a screw driver and hammer and punched a hole and asked to change the exhaust. It was completely blocked. Decarbing the exhaust was long pending. Now, it accelerates like hell, but top end is limited in 60-70, as before. Time to hunt down brand new one. This one is a 10-year old Delhi-make duplicate. Now terribly loud.

2017-03-16 12-53-17.jpg


Friend had a Y2Kinetic rusting at his house. With great hope, got it from him as a part donor. Shipped it in hurry in his M800 aka Mandakini.

2017-03-18 18-04-49.jpg

Impatiently stripped the same night.

2017-03-18 22-25-39.jpg


But to horror, majority of it was unusable, shattering all expectations.

2017-04-11 17-06-46.JPG


Handle bar was horrible. Heavily rusted and all mounting points were knocked off. Switch still has the rocking effect, but cover don't have the OE KH logo. Have to swap the switches to current original KH casing. Meter console was good, but not Pricol. Speedo is jammed with rusted cable in it. Just wanted the fuel gauge.

2017-04-11 17-06-53.JPG


Exhaust was low-lying cat con type. Was longing for one. But later found, cant be mounted on old KH since there was modification in chassis to accommodate the bend pipe of this one. Thought of swapping chassis, but to horror, whole platform section was severely damaged. Apart from platform, rest of the chassis is in pristine shape, even the original shine of powder coating is there.

2017-04-11 17-07-00.JPG


Usable spares remaining will be fork assembly, switch gears, headlight assembly, speedo console (part), seat, petrol and oil tank and their floats. And a good 110 cc engine with gearbox, carb and filter. Rest of the parts are gonna be scrapped.


So far swapped, is this genuine, sturdy oil tank cap.

2017-04-11 17-07-29.JPG


Whole seat. Other one was brand new custom made, but lacks the contour this one has.

2017-04-11 17-08-33.JPG


Got a good deal for MAK 2T, bought a liter loose for 200 bucks, would have costed 280.

Last edited:
Thread Starter #84

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
3,008
Likes
4,874
Location
Trivandrum
July 2017:

25 Year FC/retest time.

2017-07-26 20-38-42.jpg

Stripped.

2017-07-27 00-01-23.jpg

Divorced.

2017-07-27 21-00-21.jpg

Switch mixed and matched with Zoom's. Original was Pricol, Zoom had Minda. Painted.

2017-07-30 09-06-39.JPG

Fork assembly from Zoom. Oldie had little bend.

2017-07-30 09-07-33.JPG

Sanded.

2017-07-30 10-22-43.JPG

Copper wire cup on angle grinder. Was pretty dangerous to use, copper wires flying most of the time. Thighs and knees punctures at multiple places. Better to wear 2 jeans. Once machine slipped and landed in groin, still running. Luckily nothing happened. Always use both hands and wear safety glasses.

2017-07-30 10-22-49.JPG

Sanded, primed and painted. Full steering column.

2017-07-30 17-07-52.JPG

Chassis. Sanded, primed and painted.

2017-07-30 17-08-27.JPG
2017-07-30 17-28-51.JPG

Thread Starter #85

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
3,008
Likes
4,874
Location
Trivandrum
Spark Plug Adapter - Swiss - ₹ 40.00

2017-08-01 20-05-29.jpg
2017-08-01 20-05-54.jpg
2017-08-01 20-08-09.jpg

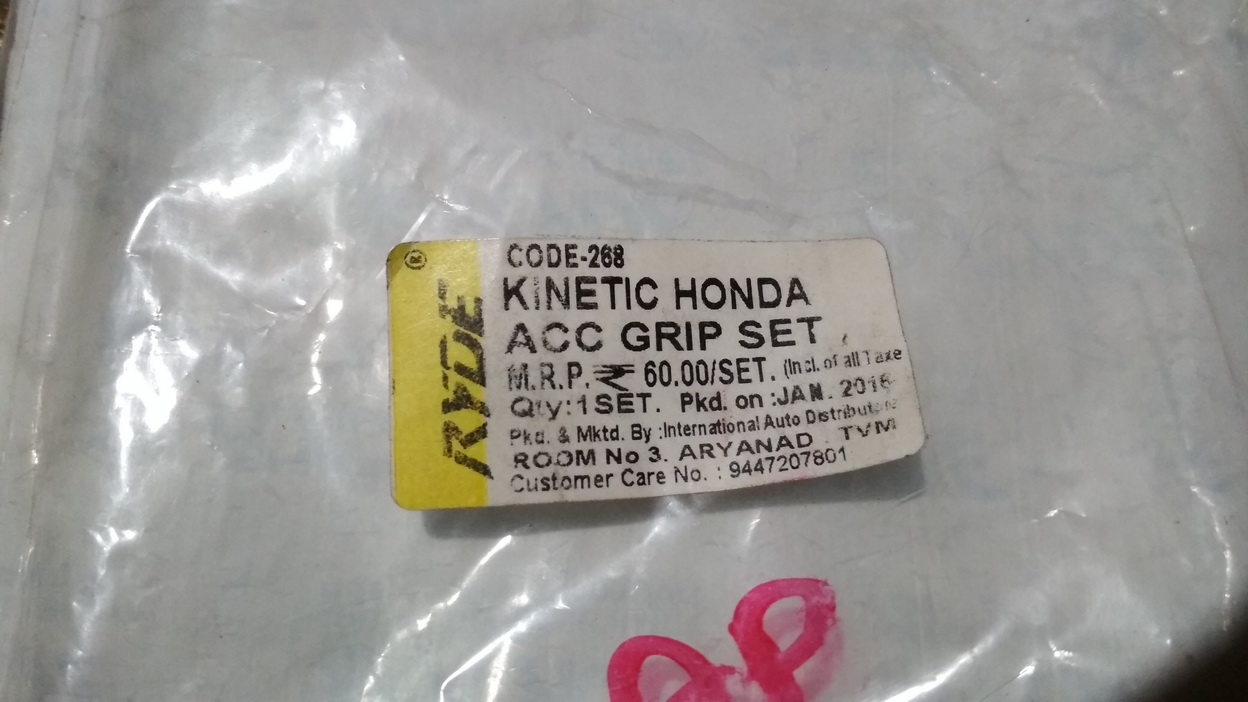

Handle Grip (Pair) - Ryde (OEM Style) - ₹ 60.00 (**** quality)

2017-08-01 20-06-24.jpg
2017-08-01 20-06-40.jpg

8-mm Flange bolt. Bit hard to find.

2017-08-01 20-06-49.jpg

Wiring Kit. Sleeved and taped.

2017-08-01 20-27-48.JPG

Engine cleaned up, externally. Plastic engine cover from Zoom. Old one was part metal, part plastic.

2017-08-02 07-12-43.jpg
2017-08-02 07-13-36.jpg
2017-08-02 07-14-18.jpg

Mated again. Casing painted.

2017-08-03 07-44-50.jpg

Body panels off for painting.

2017-08-03 07-45-43.jpg

Thread Starter #86

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
3,008
Likes
4,874
Location
Trivandrum
Switches assembled. Mix and match from 2 pairs. Newer ones sturdier with rocking action. Highlighted with mom's acrylic colors [lol]

2017-08-07 14-48-22.JPG
2017-08-07 17-09-46.JPG

Fuel gauge from Zoom. Was some unheard brand. OEM pricol was showing fatigue, fluctuating.

2017-08-07 17-43-14.JPG

Again, mom's color, stolen [evil]

2017-08-07 17-55-26.JPG

Assembled.

2017-08-07 18-27-43.JPG

Exhaust Assembly - ₹ 1,200.00
Searched length and breadth of the city to find one. Regular guys were making me wait for long and found one at an unexpected shop, with D-day just around the corner.

2017-08-08 22-00-11.JPG
2017-08-08 22-00-33.JPG

Petrol Filter - ₹ 20.00

2017-08-08 22-25-46.JPG

Exhaust Gasket - ₹ 10.00

2017-08-08 22-25-54.JPG

10 mm, always inevitable, but it nut, bolt or socket

2017-08-08 22-30-26.JPG

Thread Starter #87

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
3,008
Likes
4,874
Location
Trivandrum
Painted all tidbit parts.

2017-08-09 23-29-40.JPG

Changed DRL to warm white.

2017-08-11 23-52-56.JPG

Panels back after painting. ₹ 3,000.00, okay for the price. Most other guys were quoting more plus long waiting periods.

2017-08-12 10-03-38.jpg

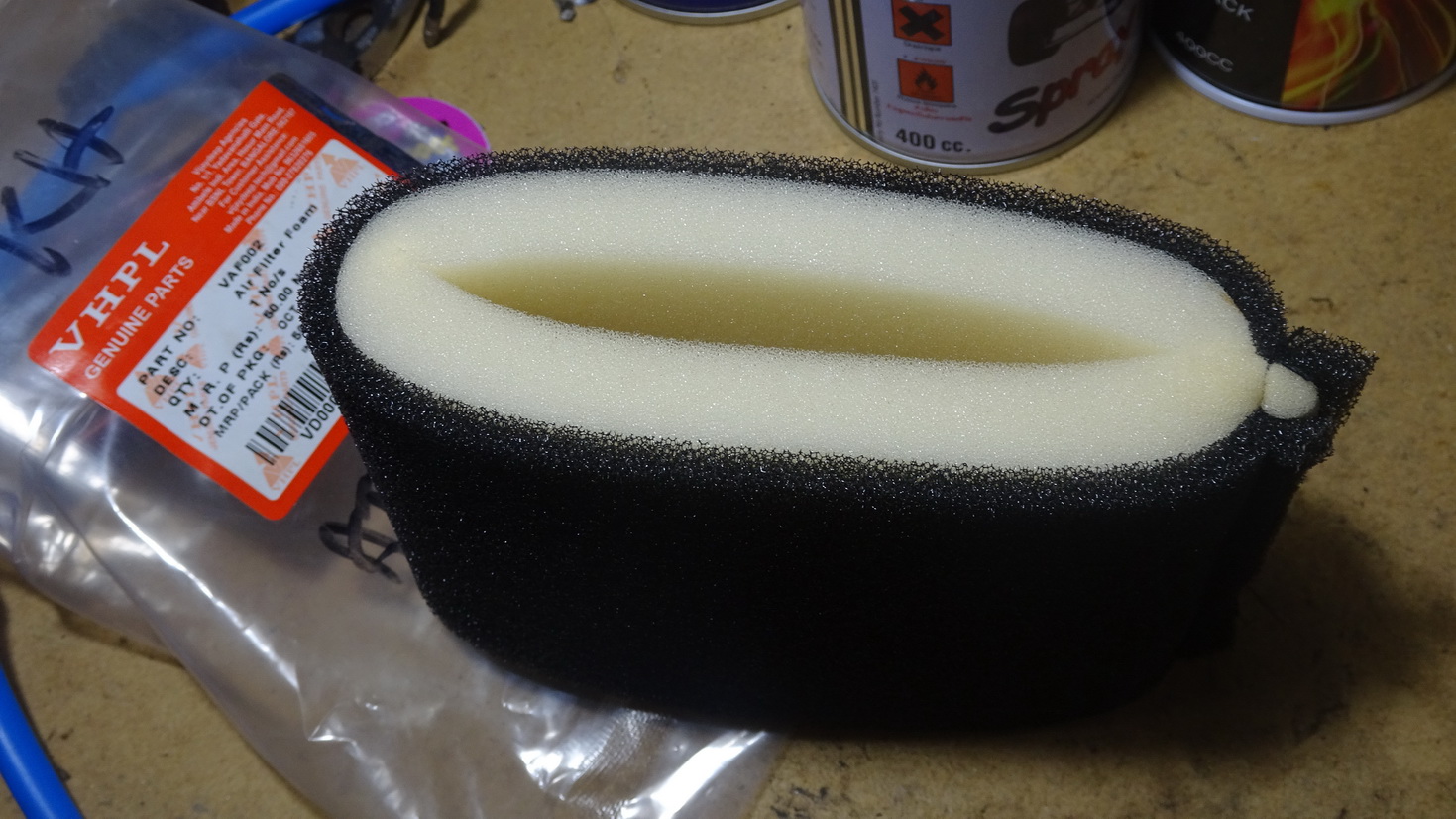

Air Filter - ₹ 50.00

2017-08-12 23-44-57.JPG
2017-08-12 23-45-37.JPG

Speedometer Glass - ₹ 120.00 (Earlier ones were cheaper, yet better quality)

2017-08-13 09-42-27.JPG

Front Brake Cable ₹ 150.00

2017-08-13 11-30-41.JPG

Final Assembly.

2017-08-13 11-34-19.JPG

TD.

2017-08-13 16-03-58.JPG

All set and ready for CF test. Passed in flying colors.

2017-08-16 07-36-23.jpg

Thread Starter #88

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
3,008
Likes
4,874
Location
Trivandrum
August 2017: Continued

Quality of the grips were so good that it gave way the day of CF test, luckily on the way back, with throttle stuck at high rpm [frustration]. Was using FZ grips and because of the lack of time and modification needed to fit it, chose this in a hurry.

2017-08-16 21-48-44.JPG

Instead bought Yamaha Ray's, thinking minimum modification would be needed and better fit than FZ's, but surprisingly it was direct fit. Quality is top notch.

2017-08-16 21-48-21.JPG
2017-08-16 22-03-18.JPG

Handle Grip (Pair) - Yamaha Ray - ₹ 65.00

2017-08-16 22-05-54.JPG
2017-08-16 22-06-04.JPG

Brake lever hole got rounded with use, turning brake light on all the time due to play). Replaced it also.

2017-08-27 11-10-41.JPG

LED fetish since childhood [evil]

2017-08-17 21-52-20.JPG

My DRL.

2017-08-17 21-52-33.JPG

Speedo.

2017-08-17 21-59-33.JPG

Then why not a tail lamp [evil] Version 1. 42 LEDs.

2017-08-18 22-24-03.JPG

Plus 3 for number plates.

2017-08-18 22-24-15.JPG

Improvised to version 2, 56+3 LEDs.

2017-08-27 10-54-25.JPG

Park or rather DRL, always on. 36 LEDs in dim + number plate lights.

2017-08-27 10-56-27.JPG

Brake. All 56 in full potential (It's a lot brighter than this click).

2017-08-27 10-56-53.JPG

Brakes.

2017-08-18 23-50-21.JPG

Park/DRL. Prefer front and rear park lights ON all the time.



September 2017:

Engine packed up with carbon deposit and high time need decarb. Lack of time, keeps the work pending. Now 2 options, decarb the original engine or swap the 110 cc Zoom engine. Dilemma!!! For the time being, Kiney off the road.


bhvm

Honoured Member
Joined
Oct 15, 2011
Messages
5,289
Likes
4,818
Location
Some Village
Another godly post from Godly restorer Guru!
Amazing restoration work. Amazing LED brake light.
Amazing everything.

Would love you can share the LED schematic. Are you using dual resistors to achieve dual level output? (Running/brake)

Thread Starter #90

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
3,008
Likes
4,874
Location
Trivandrum
another godly post from godly restorer guru!
Amazing restoration work. Amazing led brake light.
Amazing everything.

Would love you can share the led schematic. Are you using dual resistors to achieve dual level output? (running/brake)
TY TY

This is the one for the kind of setup in Kiney. (Unlabelled diode got in accidentally, please ignore it).


For single red array, this would do.
