Just started this thread for the Photography enthusiasts. Discuss everything regarding DSLR camera's here.

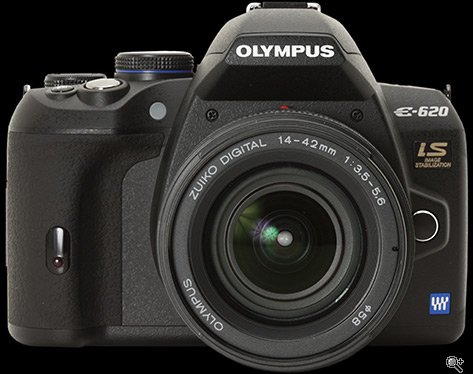

What is a DSLR?
DSLR stands for "Digital Single Lens Reflex". In simple language, DSLR is a digital camera that uses mirrors to direct light from the lens to the viewfinder, which is a hole on the back of the camera that you look through to see what you are taking a picture of.
What do DSLR cameras consist of?
Take a look at the following image of an SLR cross section (image courtesy of Wikipedia):
1 Lens
2 Reflex mirror
3 Shutter
4 Image sensor
5 Matte focusing screen
6 Condenser lens
7 Pentaprism
8 Eyepiece/Viewfinder
How do DSLR cameras work?
When you look through the viewfinder on the back of the camera, whatever you see is exactly what you are going to get in the photograph. The scene that you are taking a picture of passes through the lens in a form of light into a reflex mirror (#2) that sits at a 45 degree angle inside the camera chamber, which then forwards the light vertically to an optical element called a "pentaprism" (#7). The pentaprism then converts the vertical light to horizontal by redirecting the light through two separate mirrors, right into the viewfinder (#8).
When you take a picture, the reflex mirror (#2) swings upwards, blocking the vertical pathway and letting the light directly through. Then, the shutter (#3) opens up and the light reaches the image sensor (#4). The shutter (#3) remains open for as long as needed for the image sensor (#4) to record the image, then the shutter (#3) closes and the reflex mirror (#2) drops back to the 45 degree angle to continue redirecting the light into the viewfinder.
Obviously, the process doesn't stop there. Next, a lot of complicated image processing happens on the camera. The camera processor takes the information from the image sensor, converts it into an appropriate format, then writes it into a memory card. The whole process takes very little time and some professional DSLRs like Nikon D3s can do this 11 times in one second!
The above is a very simple way to explain how DSLR cameras work.
To read a lot more about DSLRs, check out this great article at Wikipedia.
Courtesy: http://mansurovs.com/what-is-a-dslr
What is a DSLR?
DSLR stands for "Digital Single Lens Reflex". In simple language, DSLR is a digital camera that uses mirrors to direct light from the lens to the viewfinder, which is a hole on the back of the camera that you look through to see what you are taking a picture of.
What do DSLR cameras consist of?
Take a look at the following image of an SLR cross section (image courtesy of Wikipedia):
1 Lens
2 Reflex mirror
3 Shutter
4 Image sensor
5 Matte focusing screen
6 Condenser lens
7 Pentaprism
8 Eyepiece/Viewfinder
How do DSLR cameras work?
When you look through the viewfinder on the back of the camera, whatever you see is exactly what you are going to get in the photograph. The scene that you are taking a picture of passes through the lens in a form of light into a reflex mirror (#2) that sits at a 45 degree angle inside the camera chamber, which then forwards the light vertically to an optical element called a "pentaprism" (#7). The pentaprism then converts the vertical light to horizontal by redirecting the light through two separate mirrors, right into the viewfinder (#8).
When you take a picture, the reflex mirror (#2) swings upwards, blocking the vertical pathway and letting the light directly through. Then, the shutter (#3) opens up and the light reaches the image sensor (#4). The shutter (#3) remains open for as long as needed for the image sensor (#4) to record the image, then the shutter (#3) closes and the reflex mirror (#2) drops back to the 45 degree angle to continue redirecting the light into the viewfinder.
Obviously, the process doesn't stop there. Next, a lot of complicated image processing happens on the camera. The camera processor takes the information from the image sensor, converts it into an appropriate format, then writes it into a memory card. The whole process takes very little time and some professional DSLRs like Nikon D3s can do this 11 times in one second!
The above is a very simple way to explain how DSLR cameras work.
To read a lot more about DSLRs, check out this great article at Wikipedia.
Courtesy: http://mansurovs.com/what-is-a-dslr
