Stealth - 2002 Honda Dio


Thread Starter #16

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
3,003
Likes
4,871
Location
Trivandrum
January 2022 - H4 Conversion

Water seeps inside the assembly during rains, resulting in a blown bulb. Yet to find the leak point despite multiple leak tests.

2022-01-06 19-23-18.jpg
2022-01-06 19-26-02.jpg

2022-01-06 19-53-55.jpg


H4 bulb fits without much drama. Old BA20D bulb didn't have/need a retaining clip, so need some jugaad to fit the H4.

2022-01-06 19-25-32.jpg


Bought Osram Cool Blue Mega HS1 35/35 - ₹ 220.00

2022-01-06 19-45-50.jpg
2022-01-06 19-45-57.jpg

2022-01-06 19-43-37.jpg

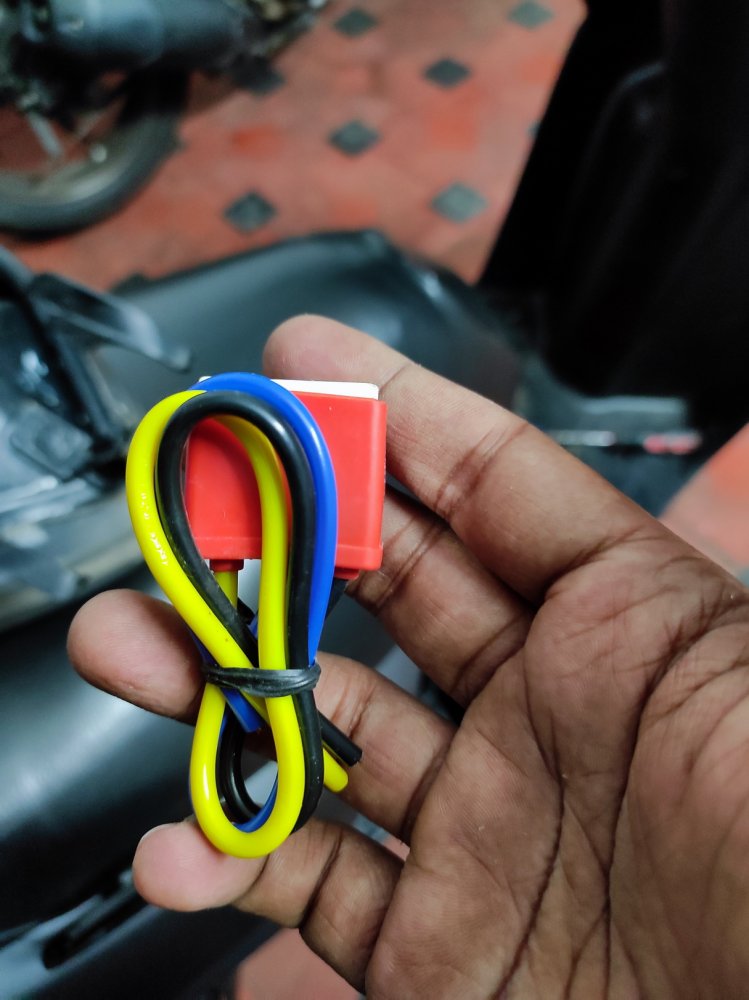

Agni Ceramic Holder - ₹ 98.00

2022-01-06 19-54-24.jpg
2022-01-06 19-54-58.jpg
2022-01-06 19-55-01.jpg


Old headlight removed from FZ.

2022-01-06 19-48-04.jpg


Had retainer clip and rubber dust cap.

2022-01-06 19-48-37.jpg


Installed them and were perfect fit on Dio's headlight assembly.

2022-01-07 11-57-35.jpg


Dust cover also made for each other. Cut out the old connector and mated with the H4 holder.

2022-01-06 20-10-43.jpg


Plug-n-play harness.

2022-01-09 13-25-16.jpg
2022-01-09 13-27-09.jpg


Cloth tape.

2022-01-06 20-14-14.jpg


One of the clips holding the light was missing.

2022-01-09 12-50-03.jpg


The clip.

2022-01-06 20-33-43.jpg
2022-01-06 20-33-50.jpg


Bought two of them right away, ₹ 5.00 each.

2022-01-09 12-47-06.jpg
2022-01-09 12-47-11.jpg


Cleaned up all the debris and wiped cleaned the reflector of any dirt. Lot of spotting and fading, might replace the assembly if available.

2022-01-09 12-52-29.jpg


Beam adjustment bolt under the headlight. Loosening it allows forward/backward movement of the assembly.

2022-01-09 13-29-57.jpg


Highest position.

2022-01-09 13-31-26.jpg


Lowest position.

2022-01-09 13-31-27.jpg


Corrected position.

2022-01-09 13-32-10.jpg


Installed.

2022-01-06 20-45-57.jpg


4300k temperature. Output is similar to old halogen bulb. Might upgrade to LEDs sometime in the future.

2022-01-06 21-57-48.jpg
2022-01-06 21-57-54.jpg

Thread Starter #17

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
3,003
Likes
4,871
Location
Trivandrum
January-February 2022 - Updates

Where it was parked for years.

2022-01-12 13-08-12.jpg


Found the Denso pair in my horn bin, removed from the Skids.

2022-01-09 13-41-14.jpg


Fiddled with the screw and back to life.

2022-01-09 13-41-18.jpg


Last horn relay from my bin, ran out.

2022-01-09 13-52-47.jpg

2022-02-27 21-38-00.jpg


Quick DIY fuse holder. First time on a micro fuse.

2022-02-27 21-50-06.jpg


Plug and play horn wiring kit.

2022-02-27 22-10-56.jpg


Installed Windtones in a couple of Dios in their golden era, which was claimed to be impossible by all installers those days. There was just millimetre clearance from the body with precise bending of the clamp. These horns were smaller and flatter, so finding space wasn't hard. Would switch to Yamaha Fazer pair soon depending on availability.

2022-02-27 23-40-49.jpg


Done.

2022-02-27 23-52-48.jpg


Shield mounting came off, so took it off.

2022-01-12 13-08-14.jpg


Made one more spare key. Lost the previous duplicate and spare. Just ₹80.

2022-01-13 19-03-09.jpg

Thread Starter #18

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
3,003
Likes
4,871
Location
Trivandrum
March 2022 - Oil Change

Motul Scooter LE 10W30 - MRP ₹ 345.00, got for ₹ 280.00 from Ex-Jawan

2022-03-26 19-10-00.jpg
2022-03-26 19-10-07.jpg


17 mm socket for drain plug and strainer.

2022-03-27 16-55-09_2.jpg


The strainer sits on the LHS. Drain plug almost exactly opposite in RHS.

2022-03-27 16-55-15.jpg


Strainer and parts.

2022-03-27 17-04-52.jpg

2022-03-27 17-05-14.jpg


Around 550 ml drained. Exact a year and 2.5k km.

2022-03-27 17-07-03_1.jpg


A little extra to compensate the oil that's stuck in the bottle.

2022-03-27 17-07-49.jpg


Convenient long neck.

2022-03-27 17-07-57.jpg


2022-03-26 21-52-44.jpg

Thread Starter #22

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
3,003
Likes
4,871
Location
Trivandrum
August 2022 - Updates

Generation gap, Honda Leads.

2022-08-06 18-30-04_1.jpg


Used by my BIL and shocked to see it clocking 2.5k km in 5 months, otherwise doing yearly oil changes with extremely low odo clicks.

2022-08-20 18-04-18.jpg

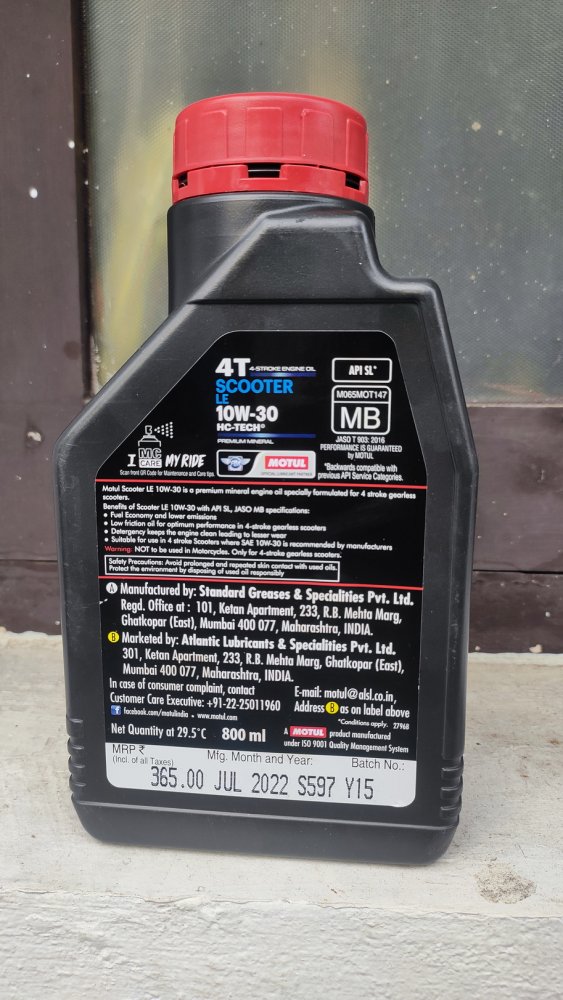

Repeat!! Motul Scooter LE 10W30

MRP ₹ 365.00, got a discount of ₹ 75.00, from Ex-Jawan.

2022-08-20 18-11-25.jpg
2022-08-20 18-11-31.jpg


Drained and filled.

2022-08-28 11-42-12.jpg
2022-08-28 11-46-21.jpg


They deleted the long neck with new stock. It was very convenient with scooters.

2022-08-28 11-48-14.jpg
2022-08-28 11-49-07.jpg


Gear oil change. Don't know when was the last change.

2022-08-28 12-07-05.jpg


Both 12 mm bolts.

2022-08-28 12-07-13.jpg


Bottom one is the drain bolt, common sense.

2022-08-28 12-09-13.jpg


Shut off the drain and fill through the top.

2022-08-28 12-13-24.jpg


Needs 120 ml. Filled some unknown brand using Yamalube bottle and a small piece of clear tube. Filled to brim and installed back the bolt. Done.

2022-08-28 12-18-09.jpg

Thread Starter #23

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
3,003
Likes
4,871
Location
Trivandrum
September 2022 - Prep for Retest and Misc Updates

Washed the Dio at a car wash. Bought secondary air filter and exhaust gasket, ₹ 40.00 and ₹ 25.00 respectively.

2022-09-24 21-04-06.jpg

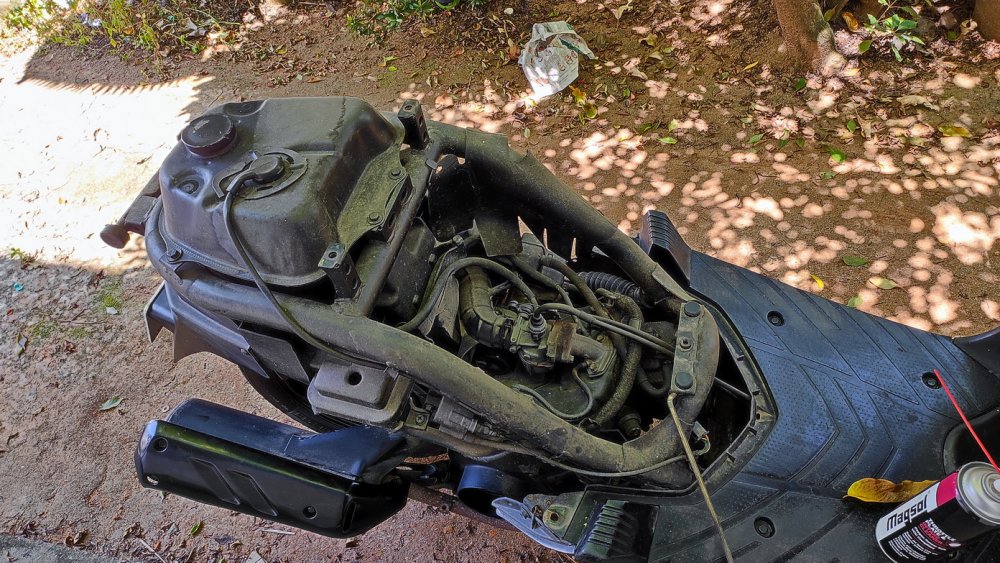

Engine compartment was dirty. Not cleaned in a long time.

2022-09-25 11-11-07.jpg


Oil vapour all over engine head.

2022-09-25 11-11-18.jpg


Cleaned up with TB cleaner.

2022-09-25 11-11-37.jpg


Breeze

2022-09-25 11-15-59.jpg


Location of secondary air filter

2022-09-25 11-16-12.jpg


Just a screw in the bottom.

2022-09-25 11-17-03.jpg


Bit dirty, but not damaged.

2022-09-25 11-17-42.jpg

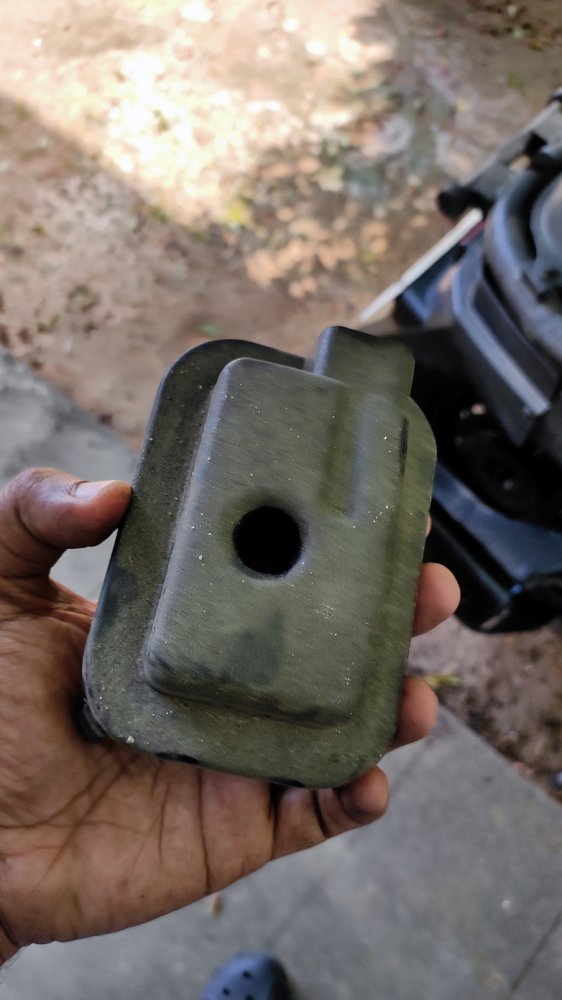

The cover.

2022-09-25 11-17-48.jpg
2022-09-25 11-17-50.jpg


New vs old.

2022-09-25 11-19-04.jpg


Soaked with oil.

2022-09-25 11-20-54.jpg


Installed, didn't resolve the issue. Symptom would be cold start issue.

2022-09-25 11-22-32.jpg


The suction line to the SA was cracked. Cut the cracked section and reinstalled. Sorted out.

2022-09-25 14-22-30.jpg


Exhaust was the only rusty part that needed fixing for the test.

2022-09-25 11-49-13.jpg

Nuts were in tricky position.

2022-09-25 11-44-45.jpg


Nuts covered in muck of ages.

2022-09-25 11-46-25.jpg


Shield removed.

2022-09-25 11-49-56.jpg


Just one more bolt and the exhaust came off after some shaking.

2022-09-25 11-53-20.jpg


Painted using Nippon Pylac heat resistant black

2022-09-25 12-23-20.jpg


Air filter box. Clueless as to how the muddy water got sucked in.

2022-09-25 12-32-46.jpg


Condition of old filter. No idea when it was last changed.

2022-09-25 12-33-43.jpg


New air filter - 17211KPL841 - ₹ 231.00

Updated Dio of the same generation came with viscous filter.

2022-09-25 13-06-50.jpg
2022-09-25 13-07-03.jpg
2022-09-25 13-08-52.jpg
2022-09-25 13-08-57.jpg


New vs old. New one by Minda and old one Lumax.

2022-09-25 13-09-41.jpg
2022-09-25 13-10-04.jpg


Replaced externally visible screws

2022-09-25 13-45-41.jpg


and bolts.

2022-09-25 14-46-38.jpg


Condition of the plug.

2022-09-25 13-57-43.jpg


Cleaned the engine bay.

2022-09-25 14-00-54.jpg
2022-09-25 14-19-30.jpg


Bulb exploded again after wash.

2022-09-25 15-34-55.jpg


Replaced with a 35/35W bulb lying around.

2022-09-25 15-31-08.jpg
2022-09-25 15-31-17.jpg


Removed the tint.

2022-09-25 15-42-13.jpg


All reset and ready to go for the exam.

2022-09-25 16-14-47.jpg

Thread Starter #24

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
3,003
Likes
4,871
Location
Trivandrum
October 2022 - Completed 20 Years

Did the fitness test. Went with an agent, but after testing 3 vehicles in a row this year, understood that's a useless expenditure, and we can do it on our own without any fuss. Prep the vehicle, pay the fees, pick a date and present for inspection, simple.

Renewal of registration - ₹ 1000
Postal Fees - ₹ 45
Service/User Charge - ₹ 60
Total - ₹ 1105

2022-10-07 07-07-02.jpg

2022-10-07 07-06-47.jpg


New number plates were installed for the process. Bought from Sagar again. This time ordered with holes as the clamps were of standard size. Paid ₹ 300.00 for a pair including shipping.

2022-09-27 16-08-40.jpg

Thread Starter #25

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
3,003
Likes
4,871
Location
Trivandrum
December 2022 - Insurance Renewed

Renewed with Acko. Got comprehensive coverage with IDV of ₹16,770.

Third-party premium - ₹714.00
Own-damage premium - ₹86
NCB (50%) - ₹43

Net Premium inclusive of GST - ₹ 894.00

Thread Starter #26

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
3,003
Likes
4,871
Location
Trivandrum
February 2023 - Oil Change

Motul Scooter LE 10W30 - ₹ 350.00 (MRP ₹ 381.00)

2023-02-02 18-31-20.jpg
2023-02-02 18-31-28.jpg


More than 850 ml in 800 ml bottle [lol]

2023-02-02 18-34-50.jpg


Draining.

2023-02-02 19-26-22.jpg


Quick funnel. Misplaced the right one.

2023-02-02 19-46-54.jpg


₹30 discount coupon. Getting it out is a task.

2023-02-02 19-49-01.jpg


600 ml drained at 2.5k km.

2023-02-02 20-03-31.jpg


Low-low-low Merc.

2023-03-18 16-29-26.jpg

Thread Starter #27

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
3,003
Likes
4,871
Location
Trivandrum
March 2023 - Updates

Front brake started fading and speedo needle was shaky as the speed picks up. Speedometer cable and brake shoe needed replacement.

The spare guy gave Camp Auto brake shoes claiming they are better than Honda OE.

Camp Auto CA14B-401NA - ₹ 290.00

2023-03-19 11-40-46.jpg
2023-03-19 11-41-28.jpg
2023-03-19 11-42-15.jpg

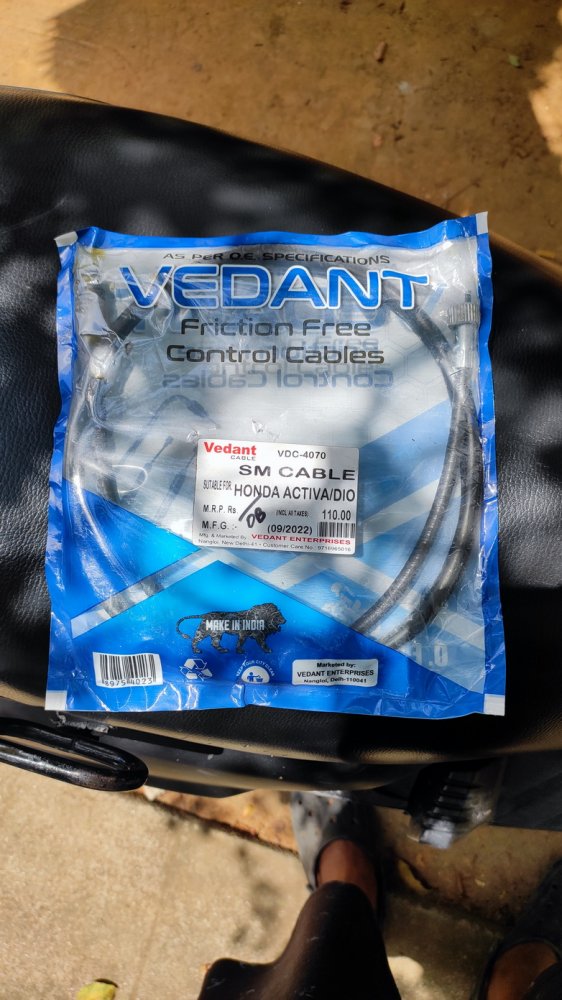

Speedometer cable was Vedant brand, which I was not confident about. Always trusted Suprajit.

Vedant VDC-4070 - ₹ 110.00

2023-03-19 12-06-32.jpg
2023-03-19 12-08-17.jpg


Work commenced.

2023-03-19 12-00-45.jpg


Existing cable was running on single strand.

2023-03-19 12-05-43.jpg


While removing the front wheel, there was some notable play and on inspection, the green bush was non-existent, fully disintegrated,

2023-03-19 13-15-29.jpg


Got Gabriel bush kit.

Gabriel AM-20130021-1 - ₹ 80.00 (MRP ₹ 83.50)

2023-03-19 13-09-27.jpg

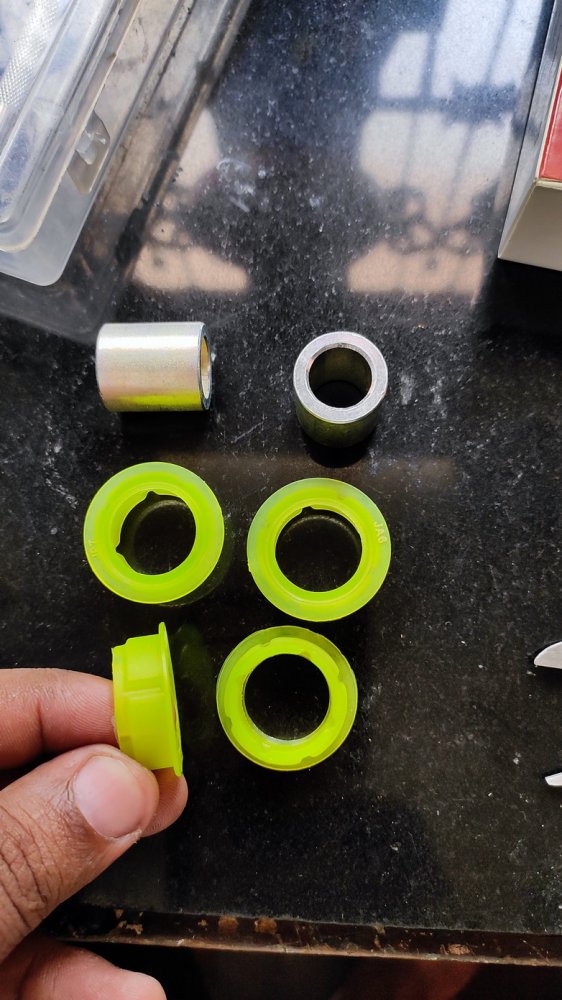

Bushes and sleeves.

2023-03-19 13-10-14.jpg

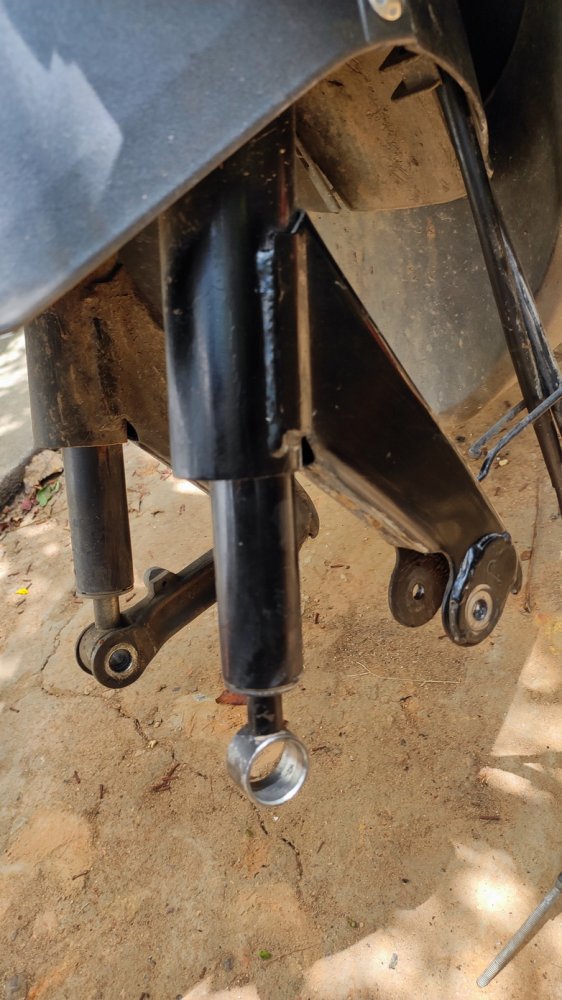

Removed pivot arm and cleaned the shocker.

2023-03-19 13-19-44.jpg


Pivot arm was solid and had greasing nipple.

2023-03-19 13-19-50.jpg
2023-03-19 13-19-54.jpg


The right side wasn't as bad as the left.

2023-03-19 13-26-20.jpg


Installation. Bush-sleeve-bush.

2023-03-19 13-28-20.jpg
2023-03-19 13-28-33.jpg
2023-03-19 13-28-48.jpg
2023-03-19 13-29-08.jpg


Installed.

2023-03-19 13-38-00.jpg


Old brake shoe removed and plate cleaned.

2023-03-19 13-43-08.jpg


So did the drum.

2023-03-19 13-44-34.jpg


Magsol magic.

2023-03-19 13-44-39.jpg


Removed the cam and greased

2023-03-19 13-48-50.jpg


and installed back.

2023-03-19 14-10-21.jpg


Brake shoe set and greased the pinion.

2023-03-19 14-10-25.jpg


Work in progress.

2023-03-19 14-15-57.jpg


Happy ending without any clicks.

Like he claimed, the brake shoes were great, bite was immediately felt, but created more dust and needed cleaning frequently and the sound was unbearable.

Thread Starter #28

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
3,003
Likes
4,871
Location
Trivandrum
2023 June - Oil Change - A Social Experiment

I was curious about the "free" oil change at the Indian Oil pump for some time. Thought of giving it a try, partly because I was away from home with no tools and oil change was overdue and most lube shops closes by the time I shut my shop. Visited 2-3 IOC outlets including their COCO pump, all their VAS operated a 9-6 shift. Finally, landed at Simi Fuels. I was in the queue and got my chance around 8 p.m.

Lifted up for the job.

2023-06-20 19-57-33.jpg


A man in his 50s was doing the change. He picked up the right stuff. Paid MRP, conveniently swiped card.

Servo Scootomatic 4ST 10W30 - ₹ 330.00

2023-06-20 19-57-54.jpg
2023-06-20 19-57-49.jpg


Drained the oil as usual.

2023-06-20 19-58-34.jpg

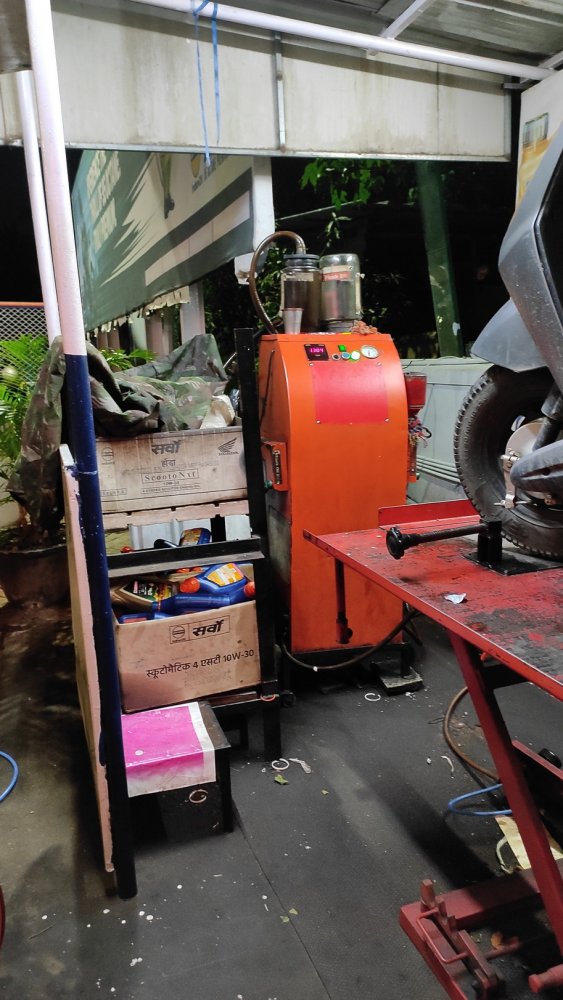

Then, there was this suction machine. Sucked the remaining oil through dipstick hole.

2023-06-20 19-59-31.jpg


This is the guy. Poured till almost the last drop. He was very patient and gentle on the scooter, especially with the drain bolt.

2023-06-20 20-02-57.jpg


Icing on the cake, got ₹ 50 voucher, effectively making it ₹ 280.00 for the oil with free labour. Filled it right away.

2023-06-20 19-57-18.jpg


There remained a queue the time I left. Definitely worth the try.

Thread Starter #29

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
3,003
Likes
4,871
Location
Trivandrum
June 2023 - Starting Trouble (Again)

Tube connecting inlet pipe to air suction valve cracked again. Cold start and idling will be problematic. Needs choke to start and extra throttle input to prevent stalling.

2023-06-25 10-22-05.jpg


Got an Activa fuel hose. Not OE.
1768-KPL-8400 - ₹ 80.00

2023-06-25 11-58-50.jpg


Cut and paste. Don't think it's gonna last long from it's appearance.

2023-06-25 12-30-37.jpg

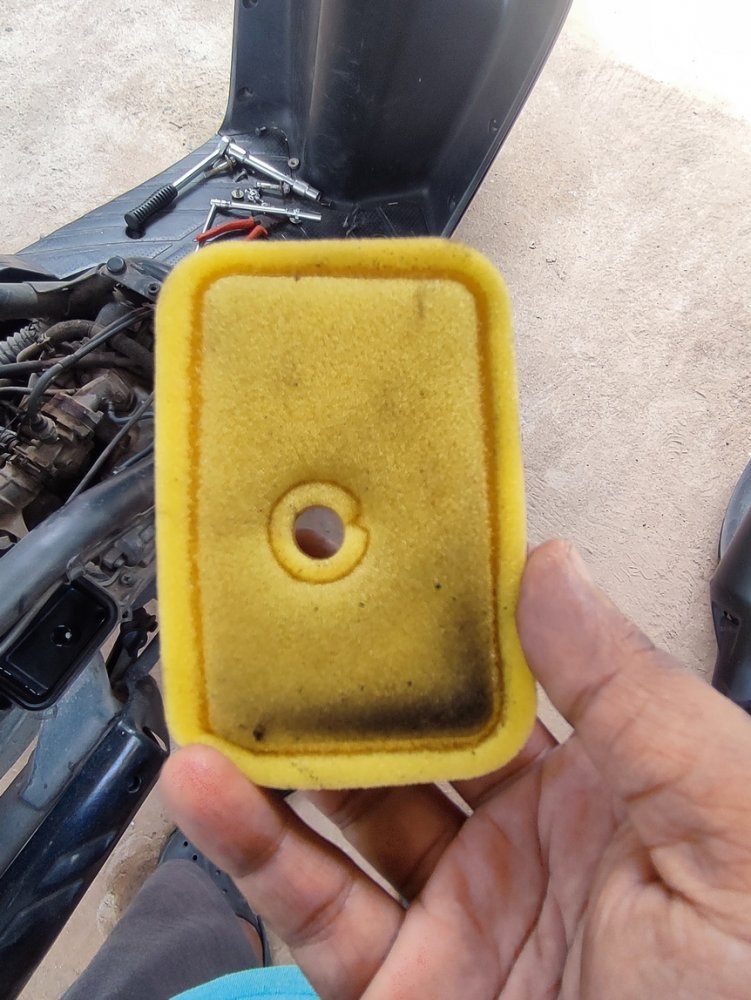

Check and cleaned filters and plug.

2023-06-25 10-19-16.jpg
2023-06-25 12-11-53.jpg
2023-06-25 12-13-08.jpg
2023-06-25 12-16-27.jpg


Got a deep 10-mm socket for deeper jobs.

2023-06-25 12-33-58_1.jpg


All sorted out.

2023-07-14 14-51-06.jpg

Thread Starter #30

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
3,003
Likes
4,871
Location
Trivandrum
August 2023 - Updates

Different gen, same colour.

2023-10-07 13-11-42.jpg


Camp Auto brake shoes creating too much dust and wear, but bite is still great. This is the reason I'm not suggesting them despite their performance.

2023-08-13 17-00-51.jpg


New key chain. Superman. Found it at a supermarket at discount price - ₹ 99.00

2023-10-07 17-54-09.jpg
2023-10-07 17-54-26.jpg


Scooter was dirty all under the skin. Engine hanger bush was almost done with.

2023-10-08 13-41-41.jpg


Stripped and washed.

2023-10-08 15-27-58.jpg
2023-10-08 16-17-41.jpg

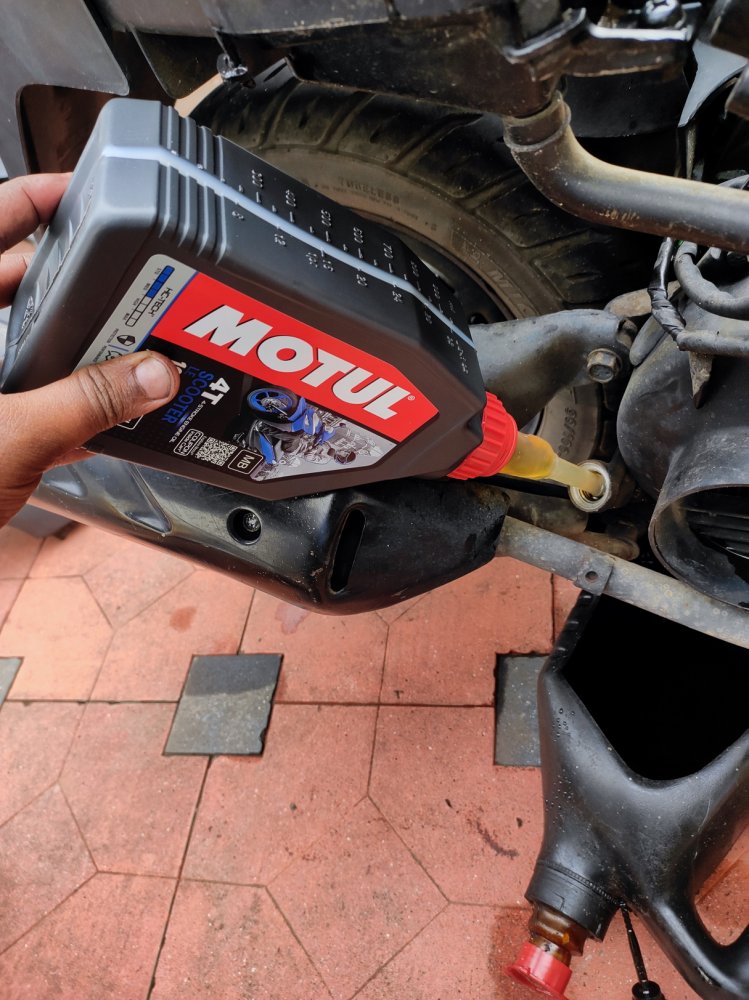

Changed oil. Back to Motul.

Motul Scooter LE 10W40 - ₹ 360.00 (MRP ₹ 386.00)

2023-10-08 16-53-51.jpg
2023-10-08 16-54-43.jpg


Screw tabs were all broken, thanks to my careless BIL.

2023-10-08 17-20-28.jpg
2023-10-08 17-27-09.jpg


Clean engine bay.

2023-10-08 18-13-05.jpg


All set.

2023-10-08 19-14-25.jpg


Gave it to a newly found FNG (who helped me with a stranded Karizma) to replace the engine hanger bush, who knew all the tricks in the trade, who tricked me taking a sum for inspection, saying no issue with the bush, which I knew was wrong.

2023-10-13 18-25-17.jpg

Top Bottom
