Russian Motorbikes Pictures and Discussions


Thread Starter #1
C

cssree

V4
#1
Joined
Nov 12, 2011
Messages
85
Likes
0
Location
india
MSRP - USD 9999
Model Number - IMZ-8.1037
Dimensions (LxWxH) mm/inches - 2580x1700x1100/101.6 x 66.9 x 43.3
Seat Height mm/inches - 813/32
Road Clearance mm/inches - 125/4.9
Dry Weight Kg/lbs - 320/705
Recommended max cruising speed km/h:mph - 105/65
Engine - OHV Air-cooled, four-stroke, flat twin cylinder
Bore & Stroke - 78 & 78 mm
Compression Ratio - 8.6:1
Displacement - 749 cc
Rated HP @ 5600 RPM - 40
Carburetion - Twin KEIHIN L 22 AA
Clutch - Dry double disk
Rated Torque @ 4600 RPM - 52 Nm / 38 ft-lbs
Alternator - 55amp, 770 watts
Starting - Electric & Kick-Start
Gearbox - 4 forward, 1 reverse, shaft drive
Fuel - 91 Octane Unleaded
Tank Capacity liters/gallons - 19/5.0
Front Brakes - BREMBO with full floating disk
Rear Brakes - Mechanical Drum
Sidecar Brakes - Mechanical Drum
Ignition - Electronic
Front Suspension (forks) - Leading Link
Rear Suspension - SACHS Hydraulic spring shock absorbers
Wheels Size - Front, rear, & sidecar 19"
Wheels Type - Painted steel, steel spokes, cast alum. hubs
Warranty - 2 years parts and labor, unlimited mileage
Fuel Mileage - 26-33 mpg/11-14 km/l*
Trunk Volume - 2.9 cubic ft/22 gallons
Options you may add - Second "tractor" seat or bench seat
Spare Wheel with Tire
Spare Wheel Luggage Rack
Tonneau Cover
Sidecar windscreen
Cylinder Crash Bar
Full Size Tool Kit
And more…

* may vary depending on load, speed, driving style and weather conditions


Attachments

Thread Starter #2
C

cssree

V4
#2
Joined
Nov 12, 2011
Messages
85
Likes
0
Location
india

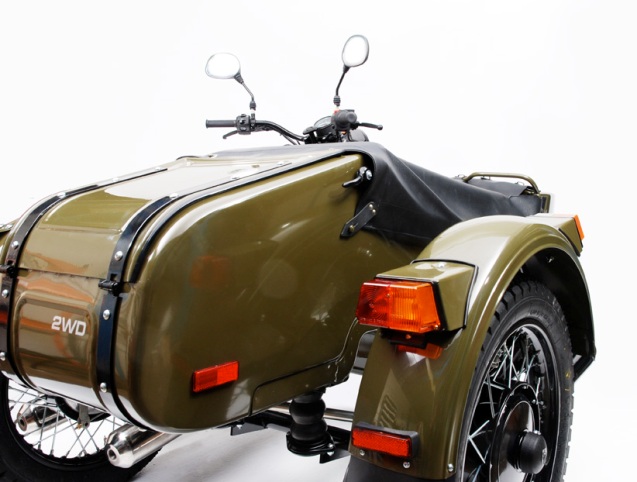

Russian Patrol T

MSRP - $12,599
Model Number - IMZ-8.1037
Dimensions (LxWxH) mm/in - 2580x1700x1100/101.6 x 66.9 x 43.3
Seat Height mm/in - 813/32
Road Clearance mm/in - 150/5.9
Dry Weight kg/lbs - 320/705
Recommended Max Cruising Speed - 65 mph
Engine - OHV Air-cooled,4 cycle,opposed twin cylinder
Bore & Stroke - 78x78 mm
Compression Ratio - 8.6:1
Displacement - 749 cc
Rated HP @ 5600 RPM - 40
Rated Torque @ 4600 RPM - 38ft-lbs
Carburetion - Dual Keihin L 22 AA, 32mm
Clutch - Dry, dual disk
Alternator Max Output - 55amp, 770 watts
Starting - Electric & Kick starter
Transmission - 4 speed with reverse and shaft drive
Recommended Fuel - 91 Octane Unleaded
Tank Capacity L/gal - 19/5.0
Front Brakes - BREMBO with full floating disk
Rear Brakes - Mechanical Drum
Sidecar Brakes - Mechanical Drum
Ignition System - Full electronic C.D.I.
Front Suspension - Leading link w/Sachs Hydraulic shock absorbers
Rear Suspension - Sachs Hydraulic shock absorbers
Wheels Size - Front, rear, and sidecar 19"
Wheel Type - Painted steel, steel spokes, cast alum. hubs
Miles per Gallon (average) - 26-33 mpg/11-14 km/l*
Trunk Volume - 2.9 cubic ft
Color - Olive Drab
Warranty - 2 years parts and labor, unlimited mileage
Available Options Spare wheel with tire
Luggage rack
Sidecar windscreen
And more…
* may vary depending on load, speed, driving style and weather conditions


Attachments

#8
S

Sam Dinkar

V10
#8
Joined
Dec 15, 2011
Messages
2,546
Likes
1,315
Location
M.P.
Re: The Russian Ural T Motorbikes

Fantastic pictures. Thanks for sharing. These bikes are based on the old BMW R series bikes and have a similar boxer engine. In true Russian tradition, these are heavy and tough old nuts. Would love to own one but alas, I don't think these would ever land up on our shores.

Thread Starter #15
C

cssree

V4
#15
Joined
Nov 12, 2011
Messages
85
Likes
0
Location
india

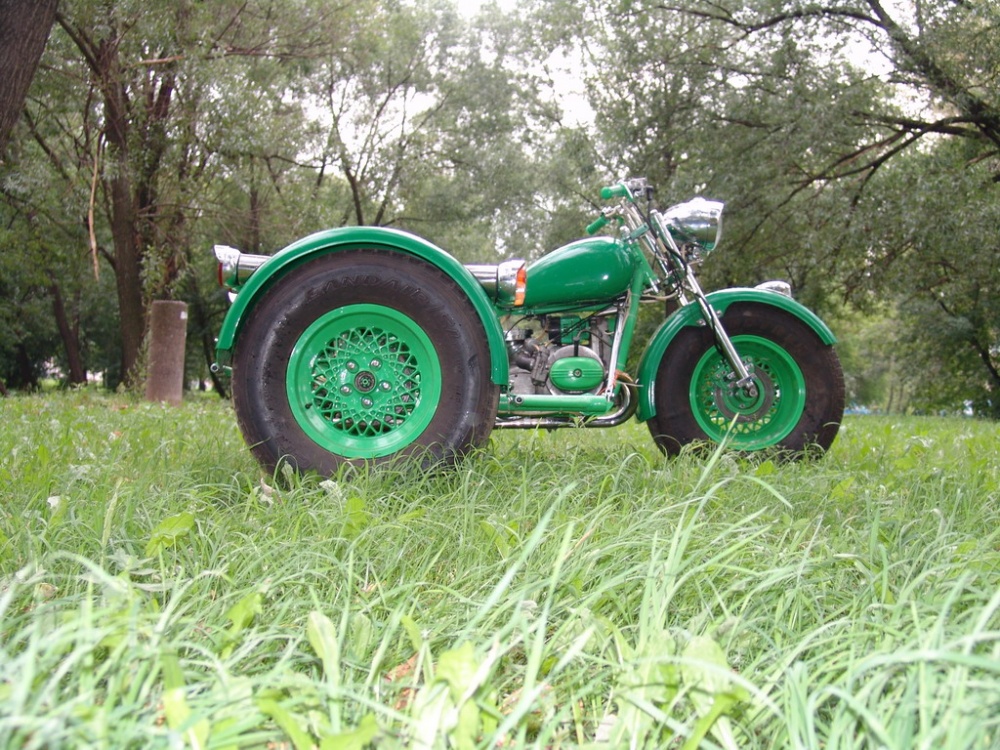

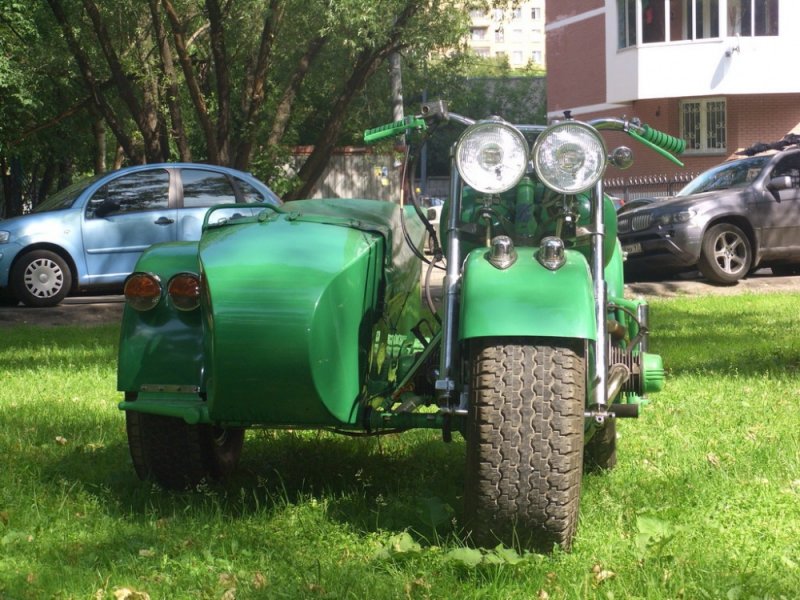

Tula Russian Motorbike

Russian Tula Motorbike


Attachments
