If the current bulb's in the projectors have 2 filaments (high and low) then you are absolutely right
Its a single Projector set up.
@Naveen: Dear Naveen,
I am sorry to say , your knowledge is wrong.No issues I will correct it.Please dont mind.
H4 Bulb Types and Design:
H4 bulbs have 2 variants:
for low and high beam seperately.vehicles which have double podded headlamps, such that when low beam is used 1 pod glows and when high beam is used both pods glows.H4 Single bulbs are used in them.but they are not the only types which can be used, it depends on the sockets used.Its different for different vehicles.
H4 Hi/Lo(Bi-Xenons in case of HIDs):-
for low and high beam in one, vehicles which have headlamps with single pod/reflector/projector for both high and low beams they use these bulbs.They are of double filaments.In HIDs they are known as Bi-Xenons.
H9 bulb and Design:
This a single filament bulb used for single beam used only in the pod of the double podded headlamps which glows only on high beam.
In the above list of all high performance bikes(The sockets of bulbs used are similar to 4-wheels),checkout for H4 SINGLE
in the bike headlamps have both H4s for high and lowbeams or H4 for a lowbeam and any other type for the high beam, H4 hi/lo
in the bike headlamps which have H4 in lowbeam and Highbeam column is blank and H9
bulbs in highbeam column.
Source: Public Bay Lifefilestore

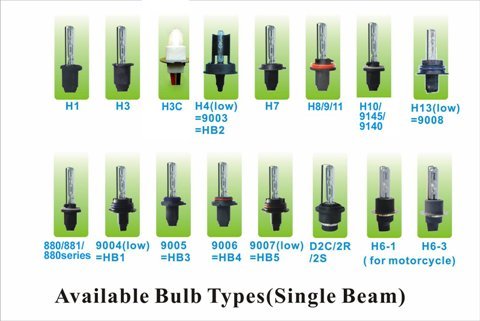

Check the above list for all Single filament bulbs, 6th bulb type on the first row is H9(a single filament bulb) and H4 Single(a single filament bulb) is 4th bulb on the first row.
Source: My Depots
Hope it is clear now.
@ Neil: Dear Neil,
I would like to request you that without proper having knowledge and information please dont make this type of statements.Just for the sake of simply opposing somebody,you should not misguide anybody else.We are profesionals and accessing this field for a pretty long time, we dont give datas to our esteemed clients just simply, rather we do thorough study and survey from the dealers and owners of this type of products, for that to provide consistent information to our clients(here all respected TAINZ).
@Mods: I regret mods that I have posted the above words, but as you see he is directly posting wrong suggestions to TAINZ as well as visitors just simply for opposing us(I think he still did not forget the last issue) and directly imparting a wrong impact on AHI's reputation, which I cant let it go on.So I took this step.If you find it wrong, then you can take any administrative step against AHI you think suitable, we will not have any issue.
