September 2020 - Continued - Fog Lamp Bulb Replacement

RH fog lamp accessible only after removing the bumper. Hindered by the windscreen washer tank. LH can be accessed by removing fender lining.

2020-09-15 16-39-46.jpg


5-1/2 year old local fog lamp. Our longest surviving unit. Third unit. Rusted, but not as badly as expected.

2020-09-15 16-40-19.jpg


Took some time and effort to open as everything including the screws were rusted and stuck. And also a good amount of Rust Off.

2020-09-15 16-48-21.jpg
2020-09-15 16-48-32.jpg


The conked bulb. Phillips H3. Survived 5+ years. The unbranded bulb came with it wouldn't have survived a month or two.

2020-09-15 16-49-39.jpg
2020-09-15 16-49-58.jpg


Got Osram Classic H3 55W. Surprisingly cheap at ₹ 43.00. Made in India. (Phillips was ₹ 130.00/piece and was made in Korea).

2020-09-15 16-52-09.jpg
2020-09-15 16-52-15.jpg
2020-09-15 16-52-25.jpg
2020-09-15 16-52-31.jpg
2020-09-15 16-52-53.jpg
2020-09-15 16-53-04.jpg


Installed bulb and the pling moment [frustration]. The frame wasn't fitting in any way. Used the pliers to hammer it into place and hit the glass and broke it [confused]

2020-09-15 17-05-00.jpg


Installed as such in any way.

Thread Starter #242

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
3,026
Likes
4,906
Location
Trivandrum
September 2020 - Mending the Grille

Grille and the broken garnish.

2020-09-15 17-14-49.jpg


Mesh. One of the first mods done on the Angel.

2020-09-15 17-13-47.jpg


Rear side with no clips.

2020-09-15 17-19-30.jpg


Fixed the broken clips with overdose of superglue. Didn't feel confident enough.

2020-09-15 17-28-53.jpg


Reinforced with glue gun. Super strong, suprisingly strong.

2020-09-15 17-49-17.jpg


Part number 71742M59K00. Available on Boodmo, MRP ₹385.00.

2020-09-15 17-48-54.jpg


Made by Fiem.

2020-09-15 17-49-01.jpg


Ready for install.

2020-09-15 17-53-54.jpg


Hell's Angel faded off, 10+ years old. Scrapped it off for redo.

2020-09-15 17-59-25.jpg

Thread Starter #243

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
3,026
Likes
4,906
Location
Trivandrum
September 2020 - New Horn Relay

Angel got 2 pairs of horns, Bosch Symphony and a Honda Amaze stock twins. One of the Symphonies were stammering due to issue with relay.

2020-09-15 18-09-56.jpg


Symphony was running on melody maker set in normal mode without any funky musical. It had a dual relay setup for tones. One of the relay was clicking partially or slowly causing the stuttering. It was 8-10 years old. Amaze horns were running on Hella 4-pin relay without any drama.

2020-11-25 09-48-07.jpg


Bought two 3-pin relays. Super Waterproof. Usually prefer 4 pin ones, but got 3 pin due to ease of wiring. ₹149.00 per piece.

2020-09-15 18-27-00.jpg
2020-09-27 15-22-31.jpg
2020-09-27 15-22-43.jpg
2020-09-27 15-23-02.jpg
2020-09-27 15-23-31.jpg


Restocked wire. 10 m at ₹10 per meter.

2020-09-15 18-29-13.jpg

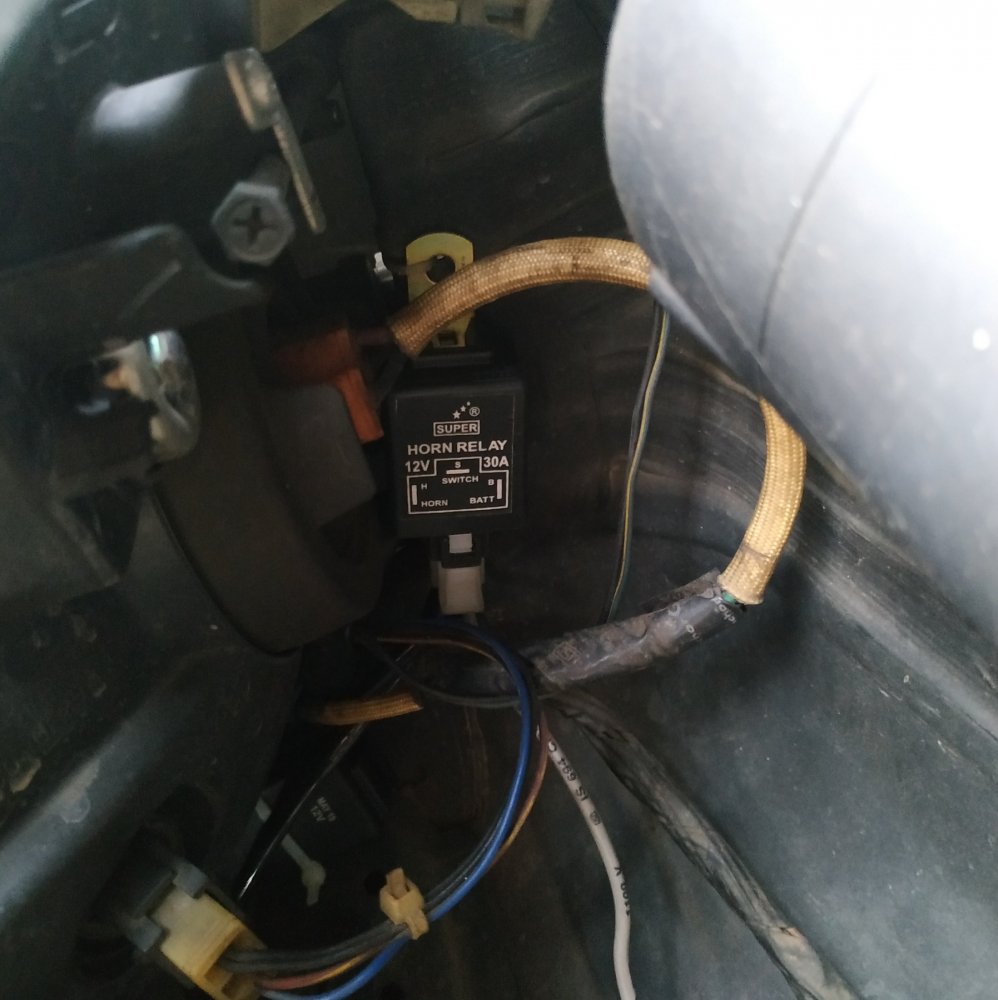

WIP. Tagged the relays. Amaze horns had wiring already in place. Symphony needed rewiring since melody maker was installed inside the car and fed from cars stock wiring by the accessory shop guy who installed the first Roots Windtone, which was replaced and relocated with Symphony by myself. Old nylon sleeved headlight sockets. They need replacement as well.

2020-11-24 17-13-05.jpg
2020-11-24 20-34-09.jpg


Didn't click the finished wiring as it was dark.

Thread Starter #245

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
3,026
Likes
4,906
Location
Trivandrum
Hi, deviile 56
Is power window motor for wagonR 2002 vxi available
Power window motor is not available as single part. It usually comes with the full regulator assembly. Since the model is pretty old, not sure whether it will be readily available. Can be ordered through MGP outlet.

Alternatively, some auto electricians rewinds the motor.

Another alternative is accessory shops. They have aftermarket units which can be fitted without any issue. We did that on Indica when part was not available.

Joined
Oct 4, 2020
Messages
36
Likes
13
Location
thiruvalla
Power window motor is not available as single part. It usually comes with the full regulator assembly. Since the model is pretty old, not sure whether it will be readily available. Can be ordered through MGP outlet.

Alternatively, some auto electricians rewinds the motor.

Another alternative is accessory shops. They have aftermarket units which can be fitted without any issue. We did that on Indica when part was not available.
I wanted regulator for power supply

Thread Starter #248

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
3,026
Likes
4,906
Location
Trivandrum
September 2020 - New Fog Lamp - Third Pair

After breaking the third pair, decided to go for the OEM one, but only single side available on Boodmo. OEM is Lumax make and costs ₹850.00/each.

Search ended in PartsBigBoss. Bought gear knob for Beat from them, but through Amazon. Listed price was ₹ 616.00 with 10% discount and free shipping. Very tempting deal. Worked out to be total ₹ 554.40. Ordered without second thoughts. Expected a delay due to the pandemic, but reached in a week through Delhivery.

Globex Fog Light Lamp Assembly Zen Estilo Old Model (With Bulb) - MRP ₹ 616.00 + 10% discount + free shipping = ₹ 554.40

Packing.

2020-09-27 11-22-21.jpg
2020-09-27 11-23-09.jpg
2020-09-27 11-25-09.jpg
2020-09-27 11-25-37.jpg
2020-09-27 11-25-51.jpg
2020-09-27 11-25-55.jpg
2020-09-27 11-26-04.jpg


Lots of bubble wrap.

2020-09-27 11-26-13.jpg


Good for the price. With clamp and bulb.

2020-09-27 11-27-37.jpg

2020-09-27 11-27-48.jpg
2020-09-27 11-27-58.jpg


Dissected out of curiosity, as usual.

2020-09-27 12-46-11.jpg
2020-09-27 12-46-22.jpg


Unbranded H3 55W bulbs. I bet these won't run a month. Will replace with Phillips/Osram from the broken unit.

2020-09-27 13-28-13.jpg


Yet to install.

Last edited:
Thread Starter #250

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
3,026
Likes
4,906
Location
Trivandrum
Hi, Deville 56
Which phone you are using to take photos and upload it in TAI.
Changed many over time. First ones were from a borrowed Creative 2 MP camera, then brother's Sony Xperia W580i. Then, bought my first camera phone, Samsung Star. Then, Nokia Lumia 520, Moto G, Yu Yureka (my favourite), Redmi 4. In between bought first camera, Canon SX130.

In past 2-3 years, upgraded to Sony HX90V and Redmi Note 6 Pro. Itching to go for a 64-108 MP phone soon.

Hi, Deville 56
One of the songs in your Zen Estilo.

Got copyright infringement warning for that video [lol]

Thread Starter #251

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
3,026
Likes
4,906
Location
Trivandrum
November 2020 - Bye-Bye Steering Cover.

This original Dolphin steering wheel cover was bought between 2008-10, which was one of the first accessories on the car. Did well until recently when it started cracking due to age.

2011-09-28 15-24-30.JPG


Black and beige. Found no proper snap of the wheel.

2012-04-10 21-19-26.JPG


The cracked cover. Only I was having difficulty/irritation using it, others were okay or least bothered with it.

2020-11-24 17-06-19.jpg
2020-11-24 17-06-24.jpg


Dirt accumulated over years. 9-3 spoke worn as well, where we tend to hold more.

2020-11-24 17-05-47.jpg


Sprayed some STP Tuff Stuff

2020-12-26 14-06-15.jpg


and wiped clean. The horn pad needs proper cleaning. Steering had a soft rubbery finish, which feels weird after getting used to the thicker covered wheel. By the time I was driving, we had the cover on. Next plan is for OE finish steering wrap, but delayed due to the pandemic scene, full black this time. I had plans for steering swap with Wagon R of same period, which had same wheel, but in black colour.

2021-01-26 08-03-53.jpg


Roaming with the Skids.

2020-10-31 14-00-17_1.jpg

Joined
Oct 4, 2020
Messages
36
Likes
13
Location
thiruvalla
November 2020 - Bye-Bye Steering Cover.

This original Dolphin steering wheel cover was bought between 2008-10, which was one of the first accessories on the car. Did well until recently when it started cracking due to age.

View attachment 286611

Black and beige. Found no proper snap of the wheel.

View attachment 286612

The cracked cover. Only I was having difficulty/irritation using it, others were okay or least bothered with it.

View attachment 286615 View attachment 286616

Dirt accumulated over years. 9-3 spoke worn as well, where we tend to hold more.

View attachment 286614

Sprayed some STP Tuff Stuff

View attachment 286617

and wiped clean. The horn pad needs proper cleaning. Steering had a soft rubbery finish, which feels weird after getting used to the thicker covered wheel. By the time I was driving, we had the cover on. Next plan is for OE finish steering wrap, but delayed due to the pandemic scene, full black this time. I had plans for steering swap with Wagon R of same period, which had same wheel, but in black colour.
i noticed that seat cover also removed due to cracking

Joined
Sep 12, 2009
Messages
4,069
Likes
308
Location
Pondicherry
Ah after a brief it feels good to read this thread. Its holding good after so many years.
My storme fog lamp also cracked (glass) in its first year itself but will be visible only if you see it closely. And its almost 4.5 years and still same no further damages and working fine too!.

Thread Starter #254

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
3,026
Likes
4,906
Location
Trivandrum
November 2020 - Underdash Glow repair

One of the earlier mods, back in 2012.

2012-04-08 20-57-17.JPG


Only 2/8th was working on one side.

2020-11-24 23-18-25.jpg


Had some red strip left.

2020-11-24 23-16-39.jpg


Cut some 1 mm foam board for base. Previous one was simply stuck with its double side tape, which fell intermittently and had to be stuck again and again.

2020-11-24 23-21-27.jpg


New module.

2020-11-24 23-29-16.jpg


Wired and ready to install.

2020-11-24 23-43-27.jpg


Stuck with 3M tapes and installed.

2020-11-25 09-55-01.jpg


Forgot clicking post-install pics. Other side is pending, heights of laziness and also shortage of LED. Non-waterproof out of stock everywhere. I prefer those as I can scavenge LEDs for other projects and can be repaired easily replacing single LEDS, which is not possible with waterproof.
