March 2022 - Exhaust Painting

Exhaust has been a sore part on the bike with the faded, rusty appearance.

2022-03-01 16-07-45.jpg


Bought in September 2021 and painted in March 2022, thanks to commitments, laziness and back pain. Nippon Ryo Pylac 1000 Heat-Resistant Black Spray Can MRP ₹ 487.00, got ₹ 195.00 discount with effective price ₹ 292.00. Got from Santha Paint House.

2022-03-01 17-54-41.jpg
2022-03-01 17-54-50.jpg


Removal. One nut ant bolt near rear foot rest.

2022-03-01 16-13-43_1.jpg


One bolt on either side of the exhaust underbelly.

2022-03-01 16-13-56.jpg
2022-03-01 16-14-50.jpg


Two nuts on engine head.

2022-03-01 16-15-29.jpg


These two nuts are difficult to access. Only the 1/4 inch drive would fit (maybe the 3/8 too). 1/4 to 3/8 to 1/2 adaptation vs direct 1/2 inch drive [lol]

2022-03-01 16-18-29.jpg


With everything unfastened and some wiggle, the exhaust comes off. Can be pulled out with some twisty moves.

2022-03-01 16-20-47.jpg


Cover up the exhaust port.

2022-03-02 17-02-51.jpg


Removed the covers.

2022-03-01 16-22-03.jpg


Condition of exhaust. Dirt + tar + rust. No holes.

2022-03-01 16-22-10.jpg
2022-03-01 16-22-28.jpg


Started off with diesel and wire brushes.

2022-03-01 16-28-52.jpg
2022-03-01 16-40-15.jpg


Then with stolen wire sponge and vim liquid.

2022-03-01 16-50-29.jpg


Ended up wet sanding with 400 & 800 water paper.

2022-03-01 17-20-37.jpg


Once more vim liquid.

2022-03-01 17-50-41.jpg


Painted two coats with 30 min gap.

2022-03-01 18-17-20.jpg


Left to bake in sun for 3-4 hours.

2022-03-02 12-14-53.jpg

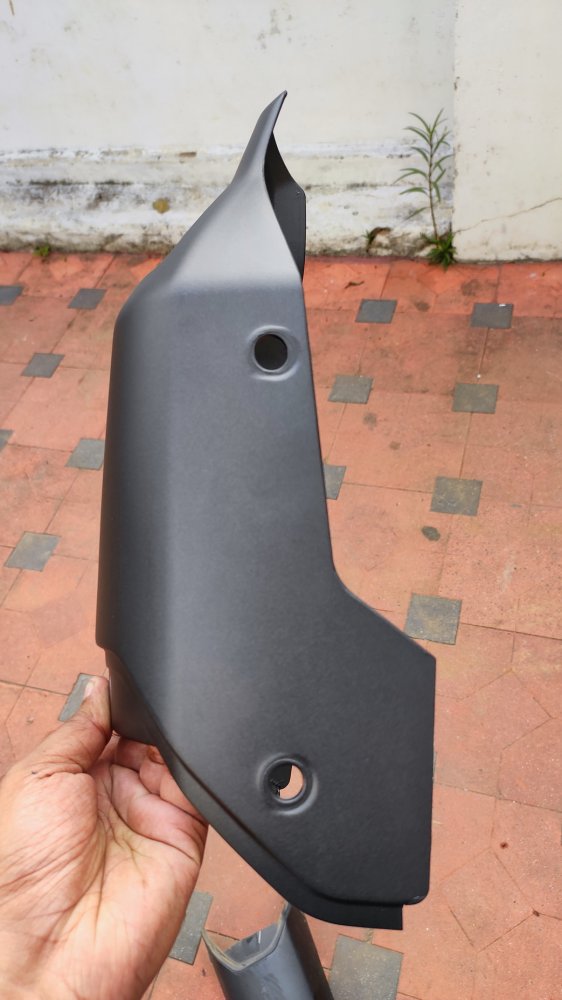

New exhaust cover.

2022-03-02 16-35-54.jpg
2022-03-02 16-35-58.jpg
2022-03-02 16-36-01.jpg
2022-03-02 16-36-09.jpg
2022-03-02 16-36-13.jpg


Old broken cover.

2022-03-02 16-36-30.jpg


Old vs new.

2022-03-02 16-35-36.jpg


Forgot to buy rubber grommets and spacers (again). Reused the old ones.

2022-03-02 16-39-55.jpg


Ready to install.

2022-03-02 16-49-43.jpg


The incomplete look. Electric bikes would sorely miss those.

2022-03-02 16-55-37.jpg
2022-03-02 16-55-54.jpg


Positioned before install. Chances of scratching is high, reason for installing the cover later.

2022-03-02 17-01-55.jpg


Exhaust Pipe Gasket - 21C-E4613-00 - ₹ 22.00
Recommended replacing every time refitting the exhaust, but not mandatory.

2022-03-02 12-34-56.jpg
2022-03-02 17-04-11.jpg


Installed the gasket.

2022-03-02 17-04-57.jpg


Hook up the exhaust port first

2022-03-02 17-10-07.jpg


and align and install the rear bolt.

2022-03-02 17-09-57.jpg


Install rest of the bolts and and tighten up and done.

2022-03-02 17-32-20.jpg


Old gasket and carbon build-up.

2022-03-06 11-01-19.jpg


Old ones were rusted, so bought new ones

2022-03-07 18-19-09.jpg


and replaced later.

2022-03-07 18-21-21.jpg


There would be fumes and unpleasant smell for some days till the paint bakes and settles down.

Thread Starter #559

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,833
Likes
4,358
Location
Trivandrum
March 2022 - New Handle Grips

Dirt in grip, prompted replacement. Last changed in 2017.

2022-03-07 17-30-55.jpg


New grips.
Handle Grip RH - 21C-F6240-000 - ₹ 57.00
Handle Grip LH - 21C-F6241-000 - ₹ 42.00

2022-03-07 17-30-38.jpg
2022-03-07 17-32-36.jpg


Rust inside RH grip.

2022-03-07 17-34-12.jpg


Cleaned and off.

2022-03-07 17-44-58.jpg


Installed new one. Comparing old with new.

2022-03-07 18-03-19.jpg


LH grip still looked new. New one had length difference. I can't make out old and new.

2022-03-07 18-04-14.jpg


Installed. Getting it out is a bit tricky. Usually, would apply a thin film of oil for rust prevention, which causes a little bit of free rotation, but when the bar end is installed, it would be tight between the switchgear and won't rotate unless you wanna force it.

2022-03-07 18-05-40.jpg


Bar end weights. Painted them. I liked their rounded edge compared to original Bajaj ones, so keeping them.

2022-03-07 18-06-02.jpg


All done.

2022-03-07 18-07-22.jpg
2022-03-07 18-07-29.jpg

Thread Starter #560

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,833
Likes
4,358
Location
Trivandrum
March 2022 - Update

Thought of replacing fuel filter since it has been some time and felt it might have been clogged. Got Varroc fuel filter, ₹ 25.00 each. Bought one for Kiney too.

2022-03-19 14-33-32.jpg


Got a magnet to catch metal debris.

2022-03-19 14-34-07.jpg


Old Mico vs new Varroc.

2022-03-19 14-36-13.jpg
2022-03-19 14-36-41.jpg


Installed.

2022-03-19 17-32-15.jpg


Someone tried starting and cranked till draining the battery. Failed to start on pushing. Checked air filter box because of strong smell of petrol. It was filled till the intake mouth with petrol, might have been sucked into the carb/engine as well. Cleaned the mess.

2022-03-19 17-32-27.jpg


Knew it might need a hell lot of cranks, connected Beat's battery and it started in 4-5 long cranks.

2022-03-19 17-33-16.jpg


Checked daily for 2-3 days for overflow and there wasn't any.

Thread Starter #561

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,833
Likes
4,358
Location
Trivandrum
April 2022 - Misc Updates

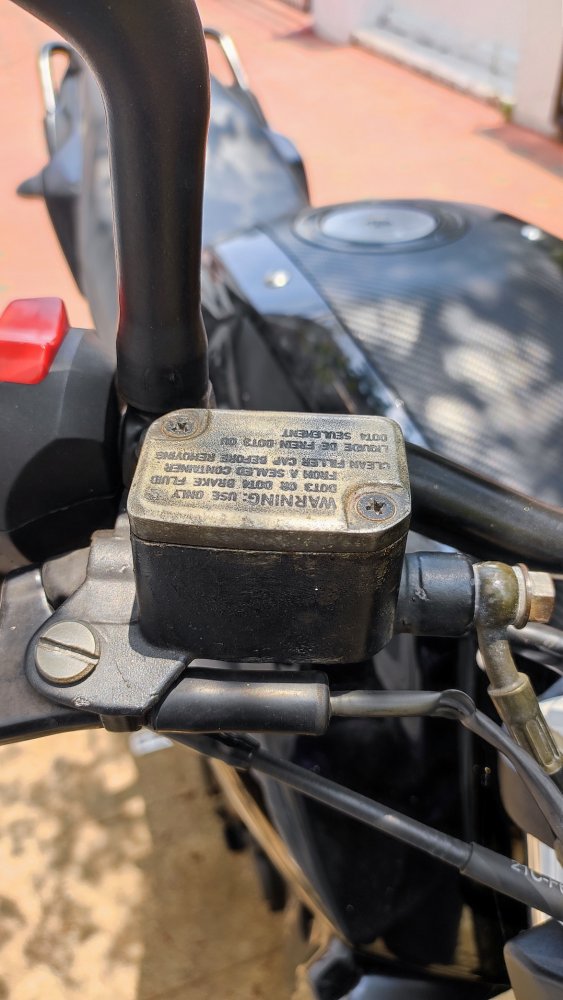

Replaced brake fluid at 2-year mark from last replacement.

2022-04-04 12-59-09.jpg

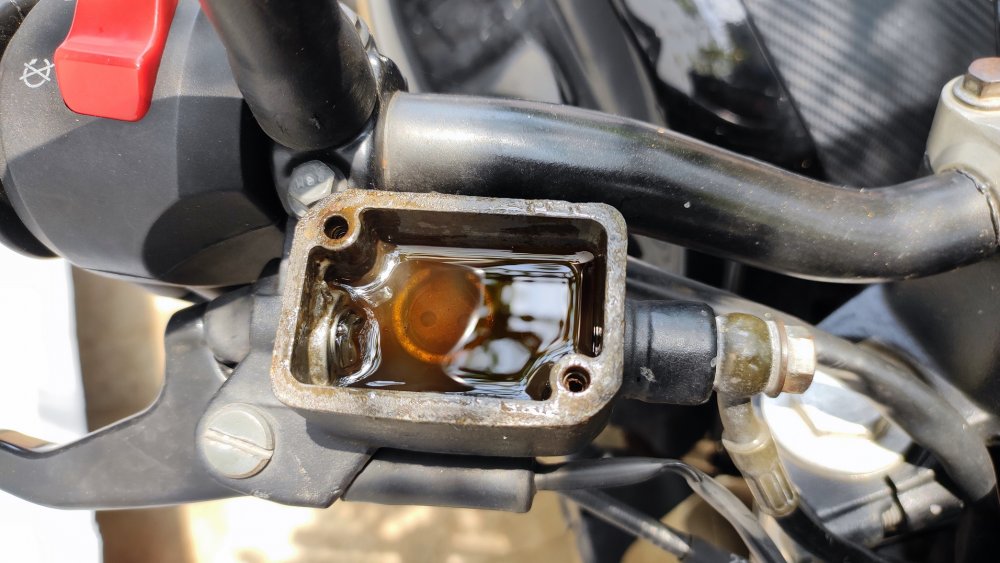

It was in okay condition without any murk.

2022-04-04 13-00-02.jpg


Used KBX. Made in Japan Yamalube bottle from last fill.

2022-04-04 13-01-21.jpg


Cleaned up.

2022-04-04 13-06-00.jpg


Bled the brakes fully. Took just 2-3 minutes.

2022-04-04 13-06-36.jpg
2022-04-04 13-13-46.jpg
2022-04-04 13-13-53.jpg


Washed my boy.

2022-04-04 20-17-20.jpg



2022-04-24 21-20-31.jpg

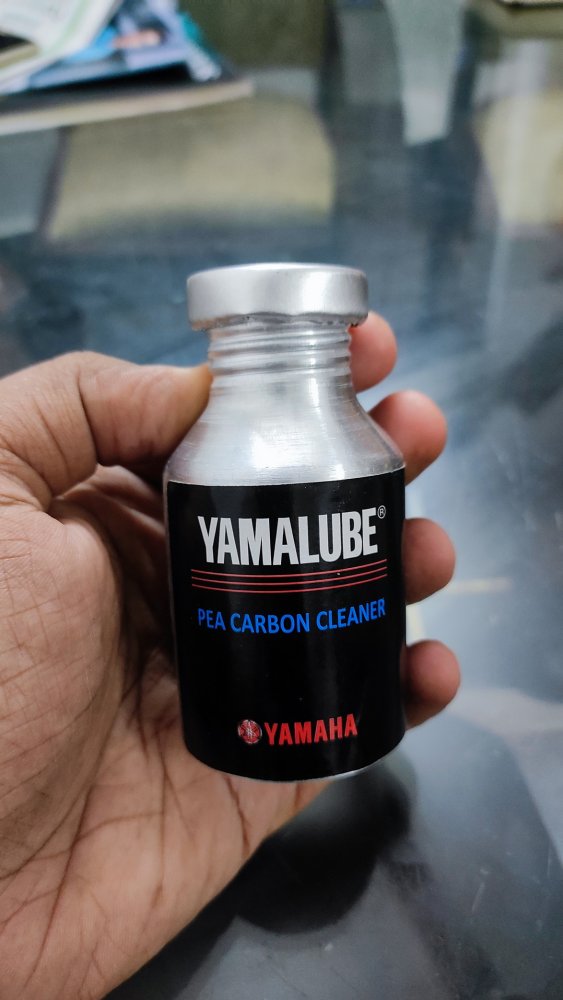

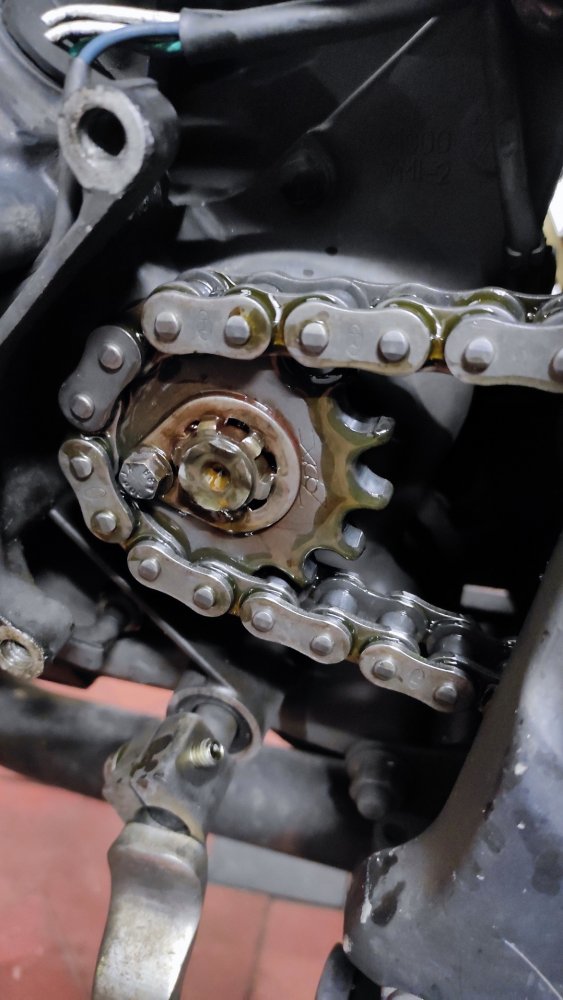

Yamalube PEA Carbon Cleaner - ₹ 163.00. Added to sort out the mild missing issue and it did.

2022-04-06 20-13-28.jpg
2022-04-06 20-13-44.jpg


Out for a night spin.

2022-04-06 21-53-35.jpg

Thread Starter #562

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,833
Likes
4,358
Location
Trivandrum
June 2022 - Updates

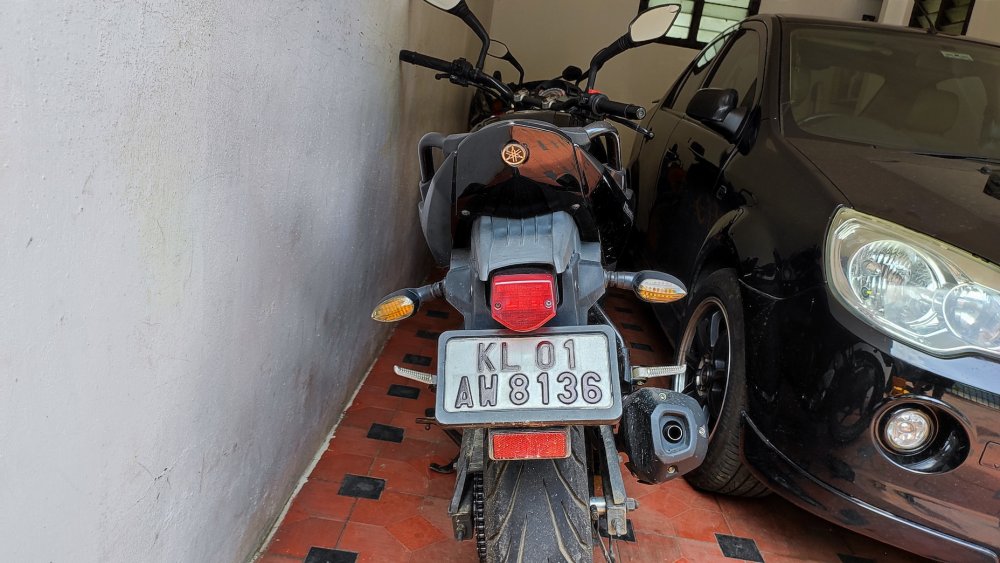

Indicators have been sagging for some time and finally drooped with rubber stay tearing. I've been trying to source the stay for quite some time. Yes, Yamaha has child part for even indicators. Part number 5YY-H3318-10 for flexible one and 20P-H3318-00 for sturdy ones. As expected, all shops were interested in selling full assembly only.

2022-06-19 13-00-53.jpg


2022-06-19 13-02-44.jpg


Tried even with the Yamaha parts distributor, who said the part hasn't been ordered at least for quite a long time and no chances of getting them anytime soon. Found some in my indicator bin, which were from the non-genuine ones bought for my first LED conversion.

2022-06-19 12-59-27.jpg


Removal.


2022-06-19 13-08-27.jpg


2022-06-19 13-16-29.jpg


A screw and plate hold the stay in place.

2022-06-19 13-17-02.jpg
2022-06-19 13-19-19.jpg


Replaced some fused LEDs.

2022-06-19 16-20-58.jpg


Assembled back and fitted the new stay.

2022-06-19 16-53-16.jpg


Installed. Brighter than most.

2022-06-19 18-21-37.jpg


Need two more for the front. Found a couple of them listed in Safexbikes.com, both original and Swiss brand. I'd order them if I can't find two more in my bin.

Thread Starter #563

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,833
Likes
4,358
Location
Trivandrum
June 2022 - Avoidable Mishap (Expenses)

Usually, I'd park on the concrete surface, but with laziness to move the Beat and the ZMA, parked down on mainstand. With rain all night, woke up seeing my boy lying on his belly. Could've been easily avoided [frustration]

2022-06-24 09-21-10.jpg


FZ handle is known for taking the impact on falls, ended up buying new handle bar.

2022-06-27 16-23-20.jpg


Got it from Moto Spare Tech, who ordered it for someone else.

Handlebar - 21C-F6111-01 - ₹ 380.00

2022-06-27 16-23-25.jpg


2022-06-27 16-23-50.jpg


Level difference.

2022-06-27 16-52-49.jpg
2022-06-27 16-52-54.jpg


Installed.

2022-06-27 17-09-40.jpg
2022-06-27 17-32-49.jpg
2022-06-27 17-32-56.jpg


My brand-new exhaust cover also took the toll [sad]. Forgot painting the washer after sanding, which also started showing its shade. No other damage apart from a minor scratch on the front fender.


Thread Starter #564

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,833
Likes
4,358
Location
Trivandrum
July 2022 - Buffed Levers 2.0

I was making love with Momos and noticed (the Nth time) I am missing my buffed levers. Old ones were replaced when there was play due to oval'ing.

2022-07-01 18-52-16.jpg


Stock look.

2022-07-03 16-55-42.jpg


The right side.

2022-07-03 16-55-50.jpg


Undo the nut first and then the bolt and the lever is all yours.

2022-07-03 16-56-56.jpg


The left side.

2022-07-04 14-42-48.jpg


Repeat the same,

2022-07-04 14-42-52.jpg

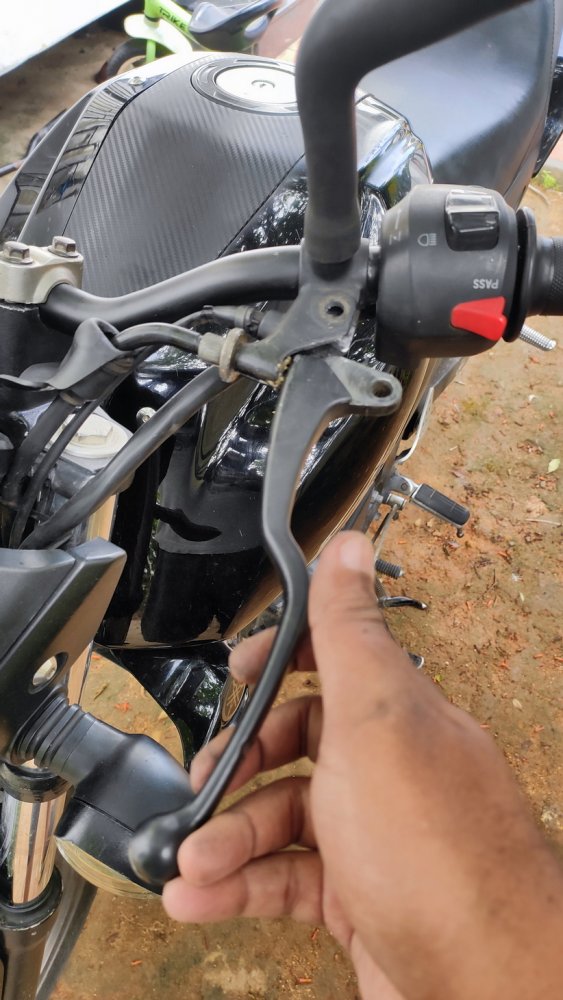

but need to undo the clutch cable.
