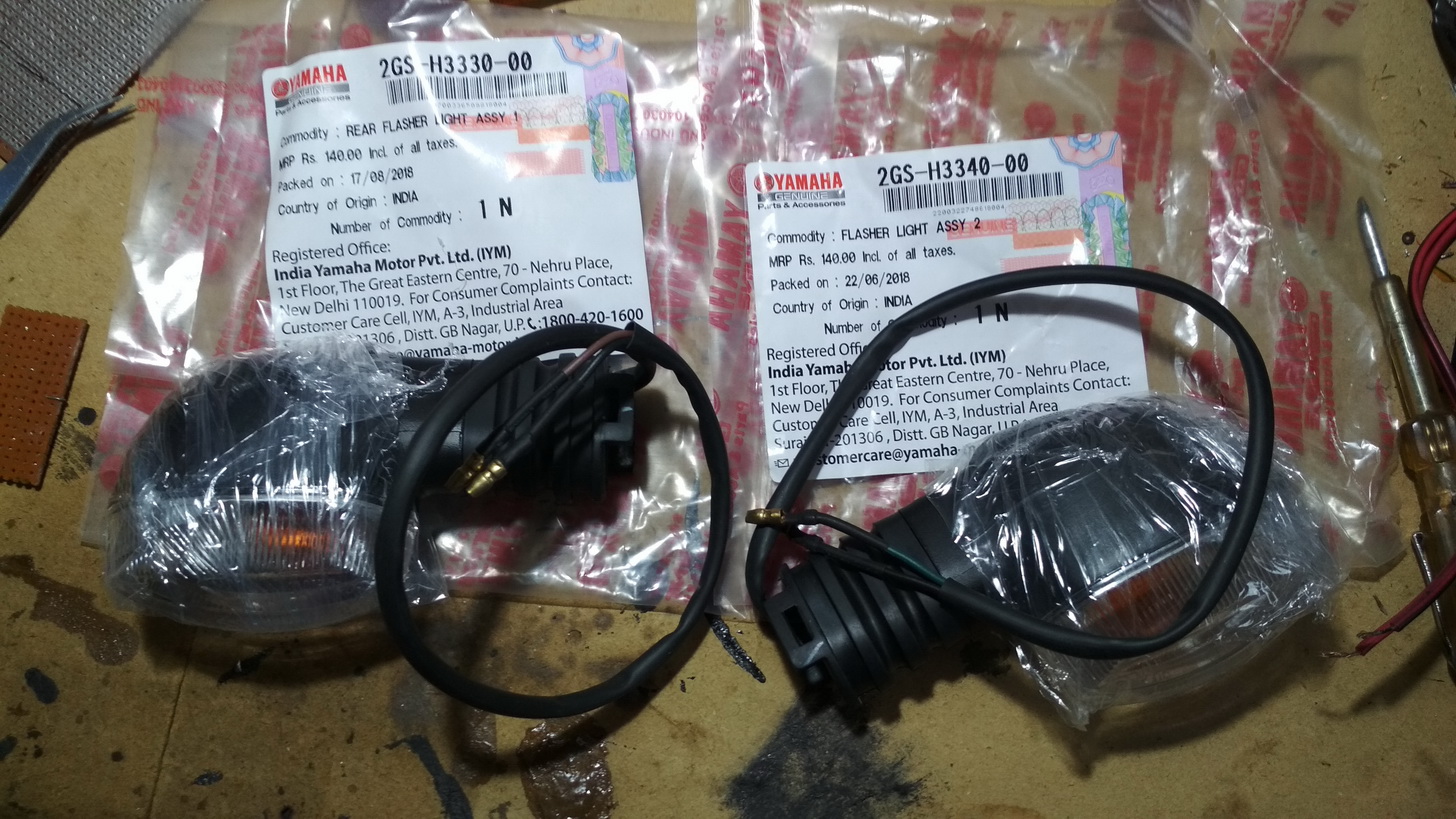

The original template cut years back

2018-09-19 21-01-38.jpg

Prototype 1 begins.

2018-09-19 21-22-54.JPG

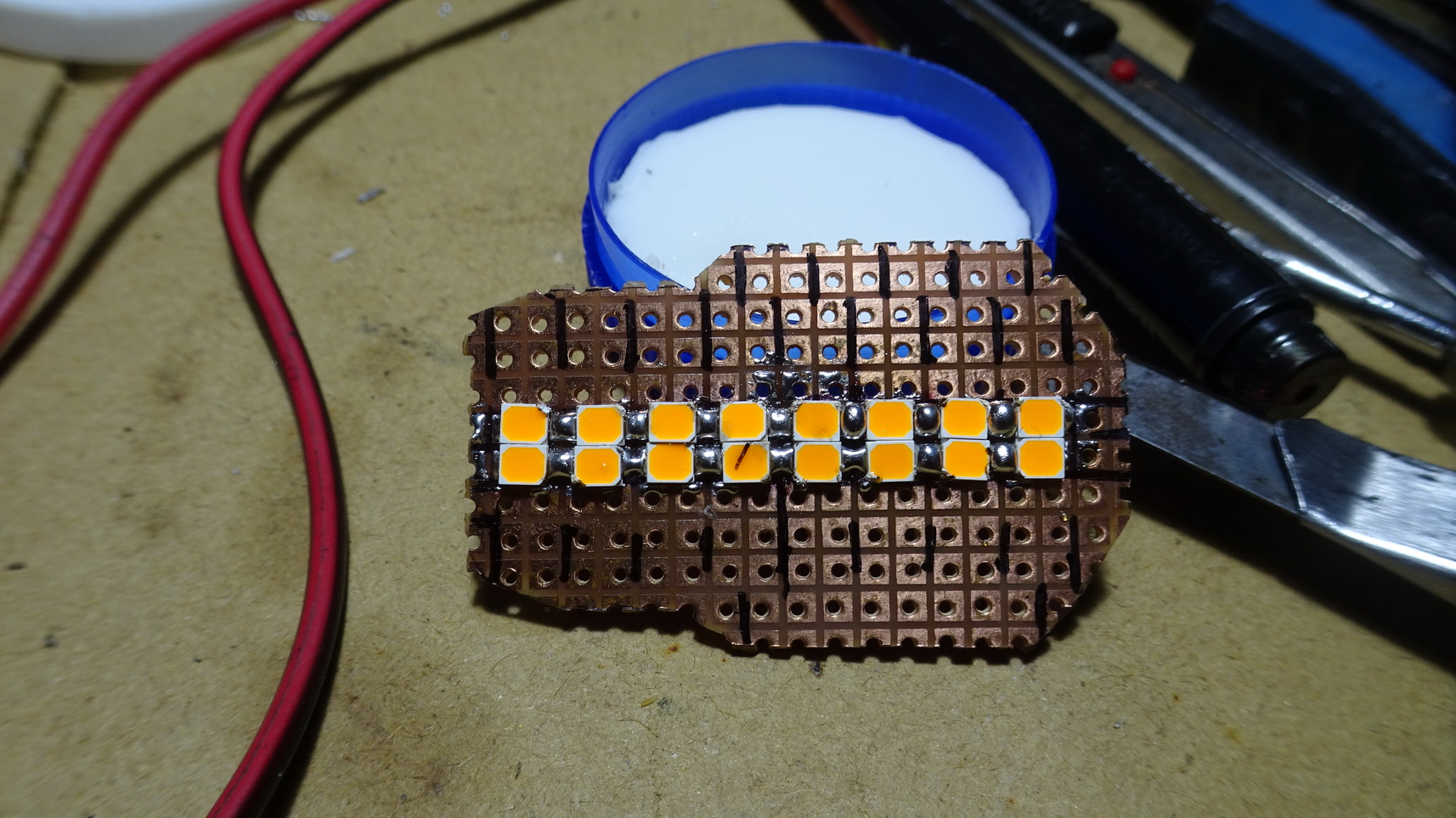

Version 1. Squeezed up 56 LEDs. Not so perfect soldering, regular Solderon soldering iron plus impatience and hurry.

2018-09-20 22-03-11.jpg

October 2018:

Afterthoughts. Version 2.

2018-09-20 23-03-10.JPG

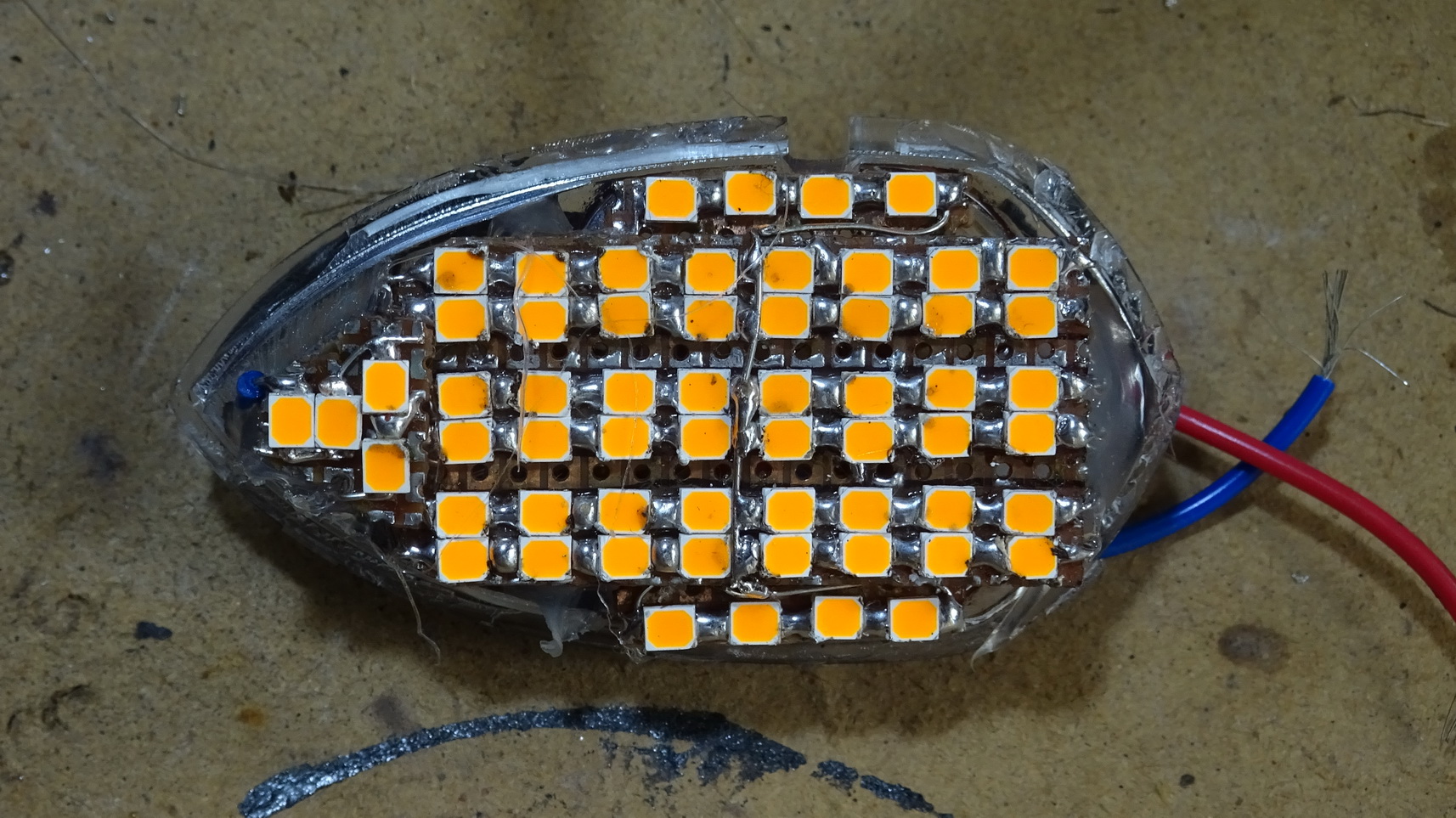

2.1. Adds 4 more LEDs. 52 LEDs total.

2018-10-05 23-51-00.JPG

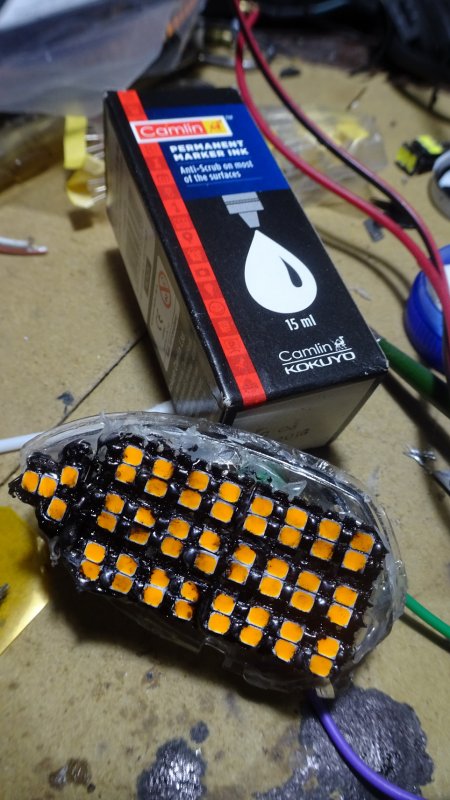

Blacked out background. Yellow tinted for the perfect amber and the yellow shade (see final ones).

2018-10-05 23-52-04.JPG

The base.

2018-10-05 23-58-54.JPG

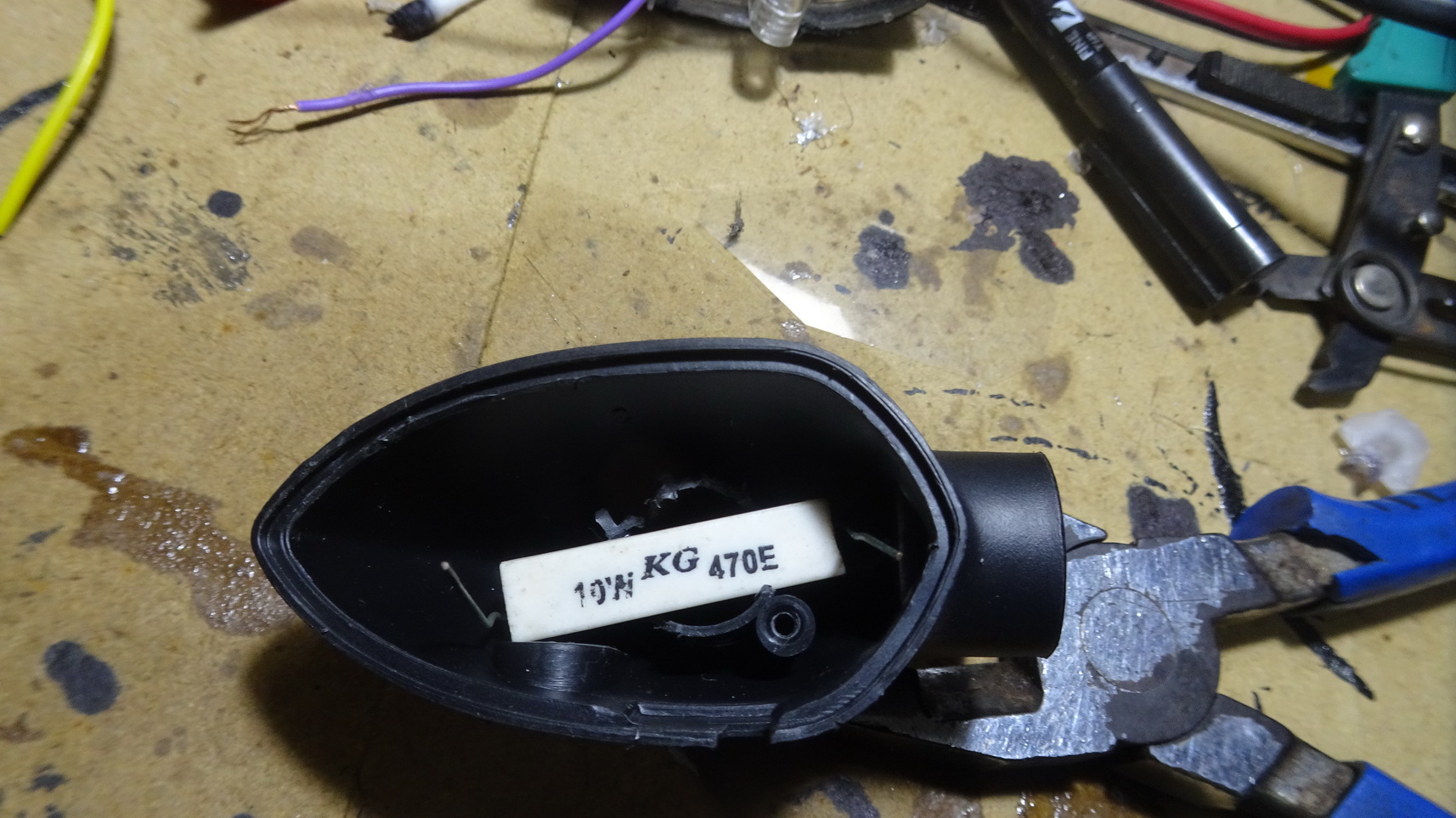

10W load resistor, integrated to the unit. No more extra connectors and dangling wires. Replaced the 470 ohm unit with a 150 ohm later, need an even lower value.

2018-10-06 00-00-17.JPG
2018-10-06 00-08-25.JPG

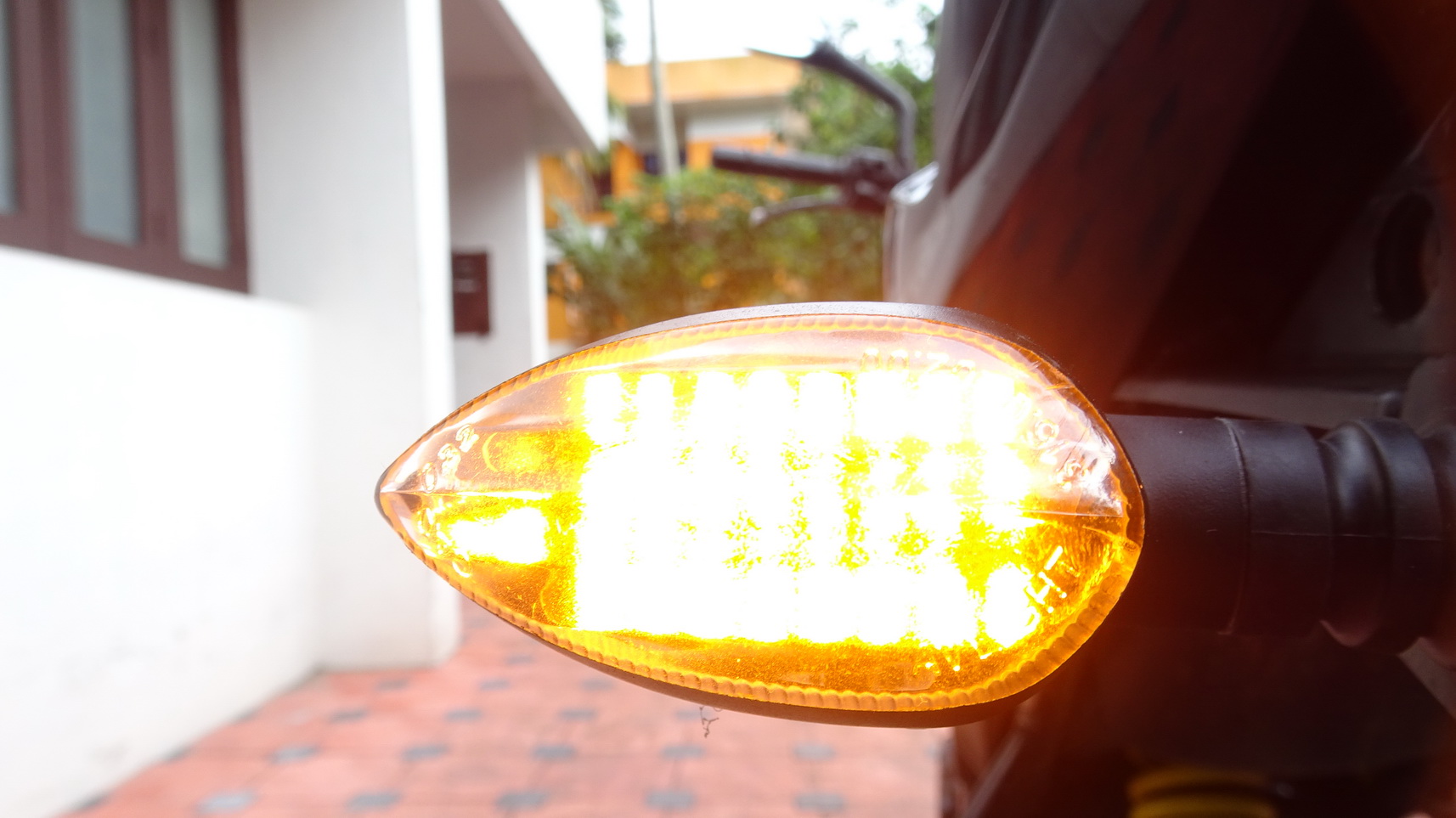

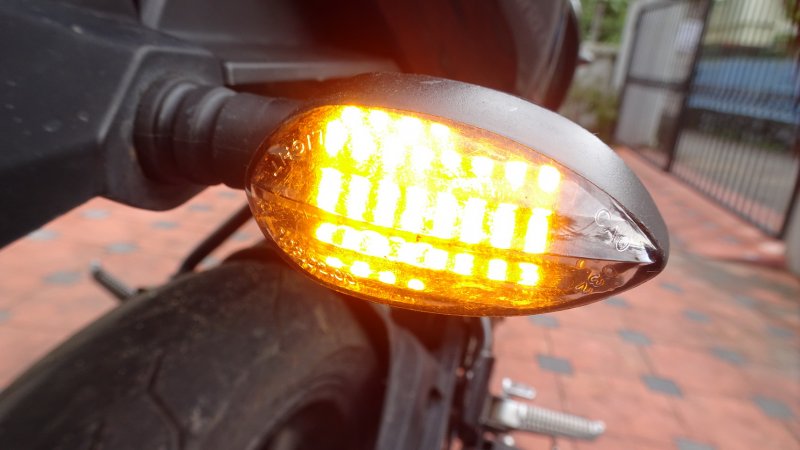

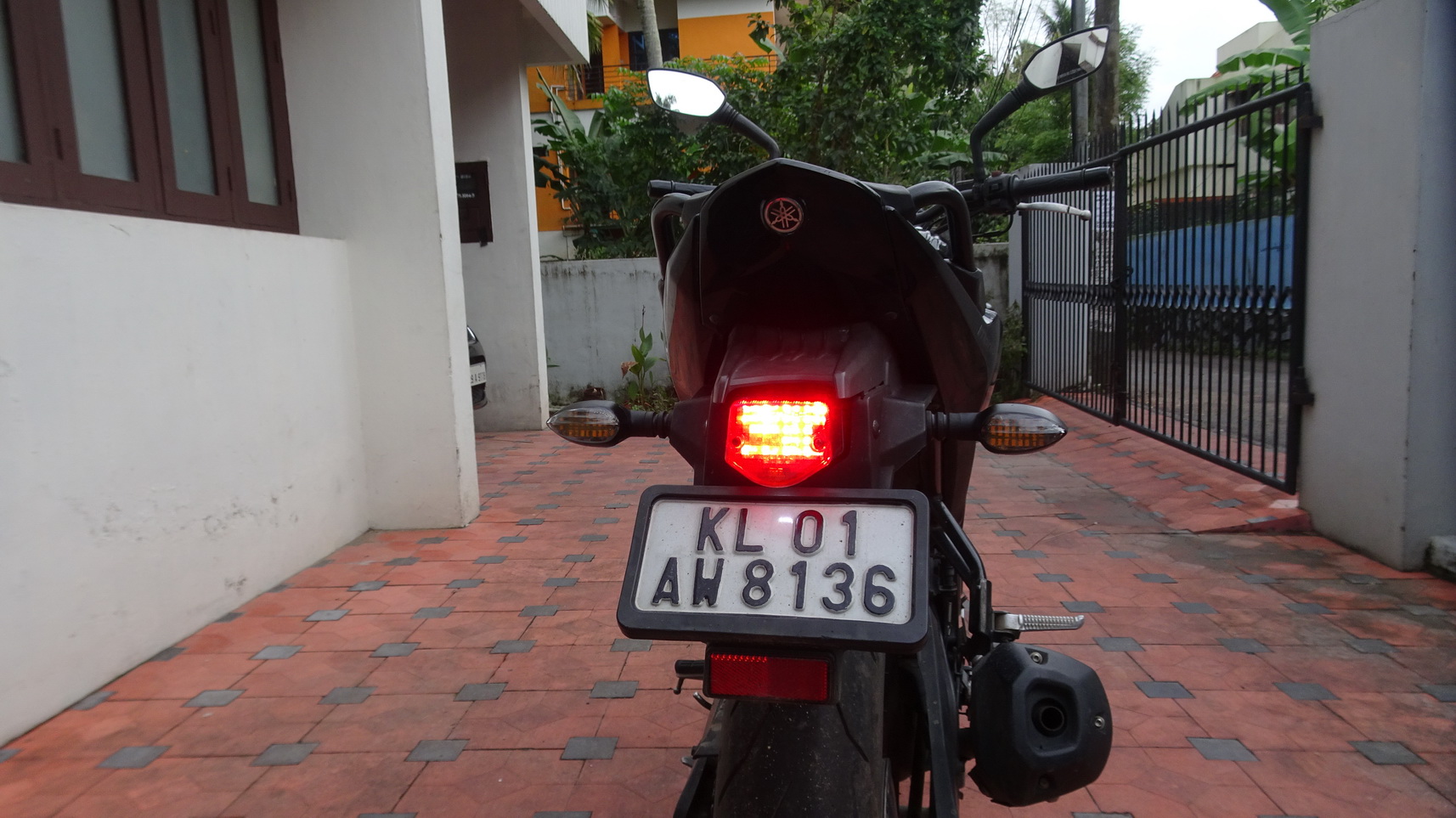

Finished units. V1 and V2.1, each.

2018-10-06 00-10-49 (2).jpg

Thread Starter #333

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,971
Likes
4,807
Location
Trivandrum
Painted handle. Matt metallic black. OEM finish.

2018-10-07 17-25-36.JPG

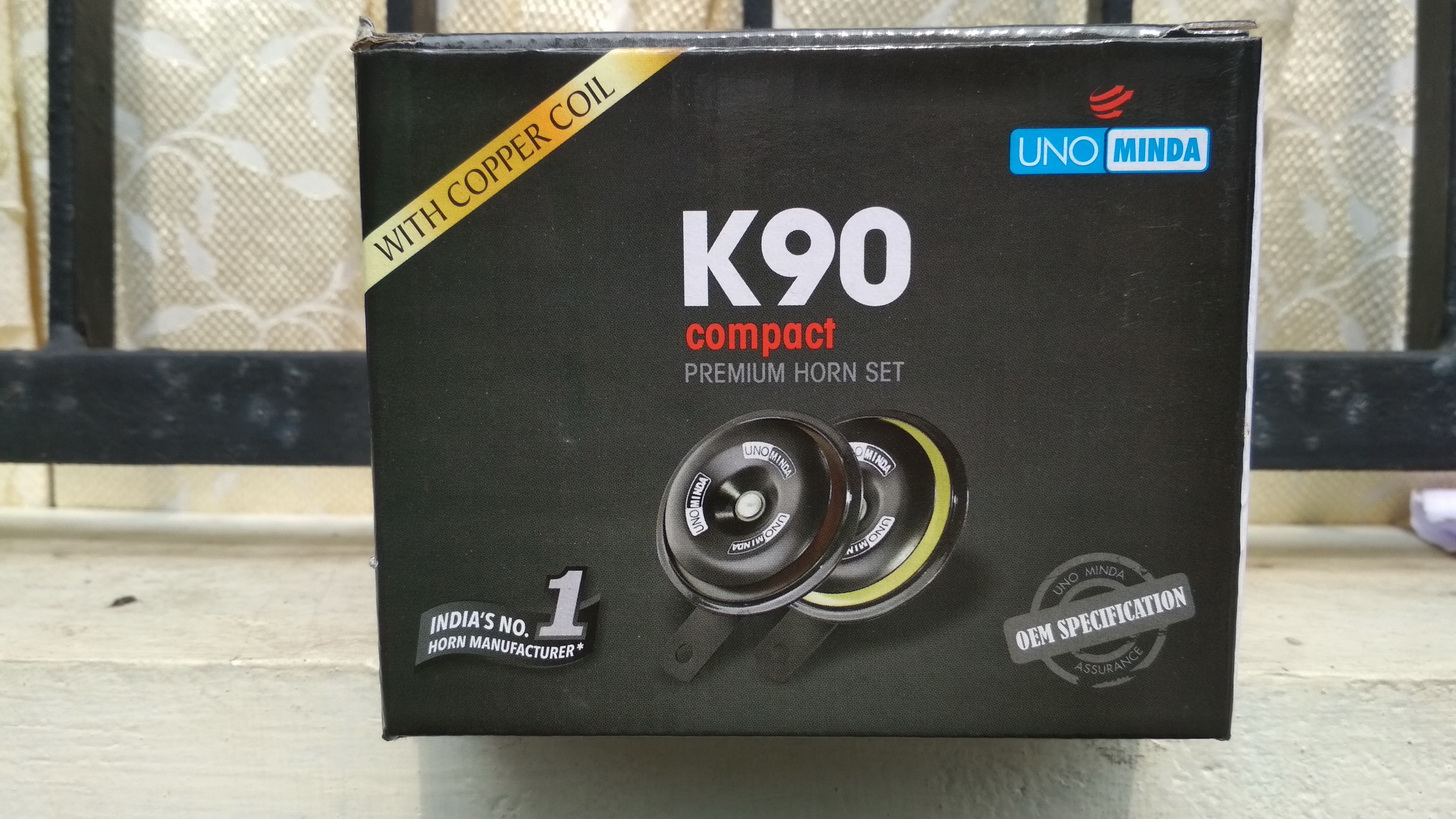

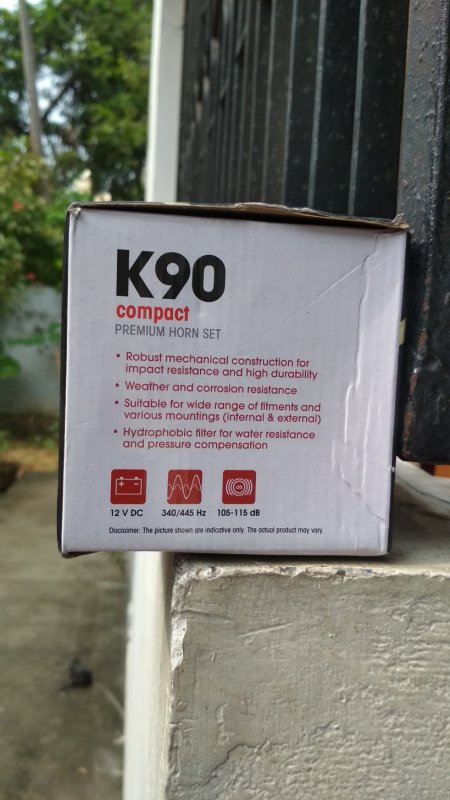

New horn. Minda K90. Hyundai i20 OEM. ₹ 440.00
Replaced Bosch Symphony for milder sound. Might fit that back.

2018-10-14 15-00-23.jpg
2018-10-14 15-00-42.jpg
2018-10-14 15-00-52.jpg

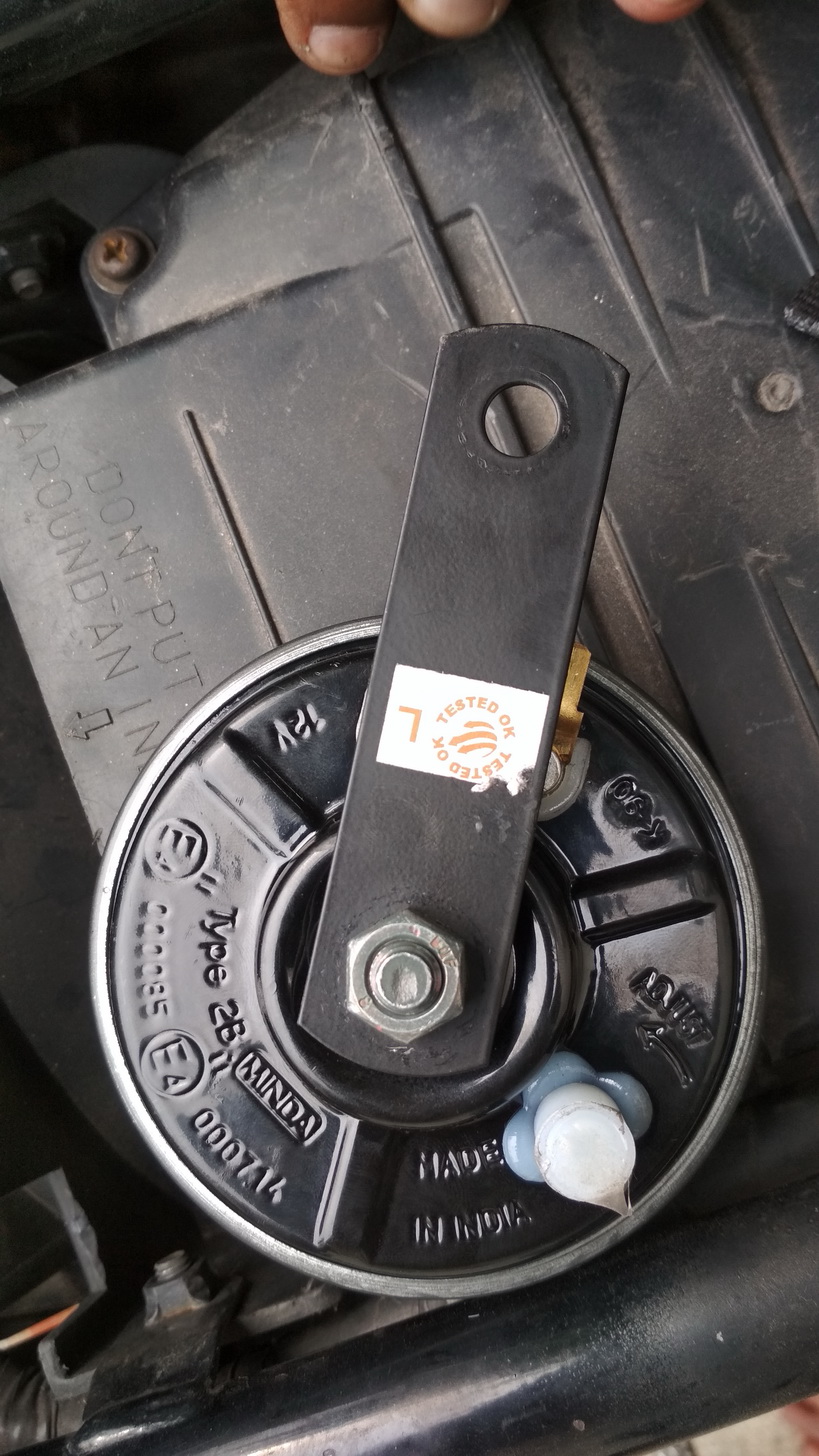

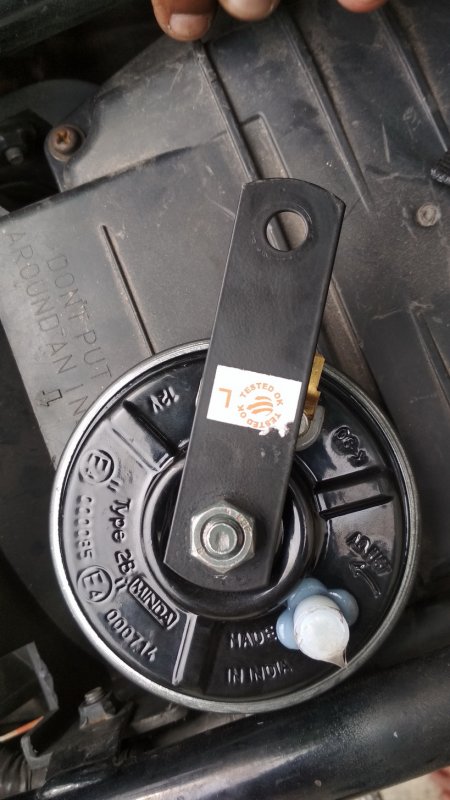

Low tone.

2018-10-14 14-45-21.jpg
2018-10-14 14-45-31.jpg

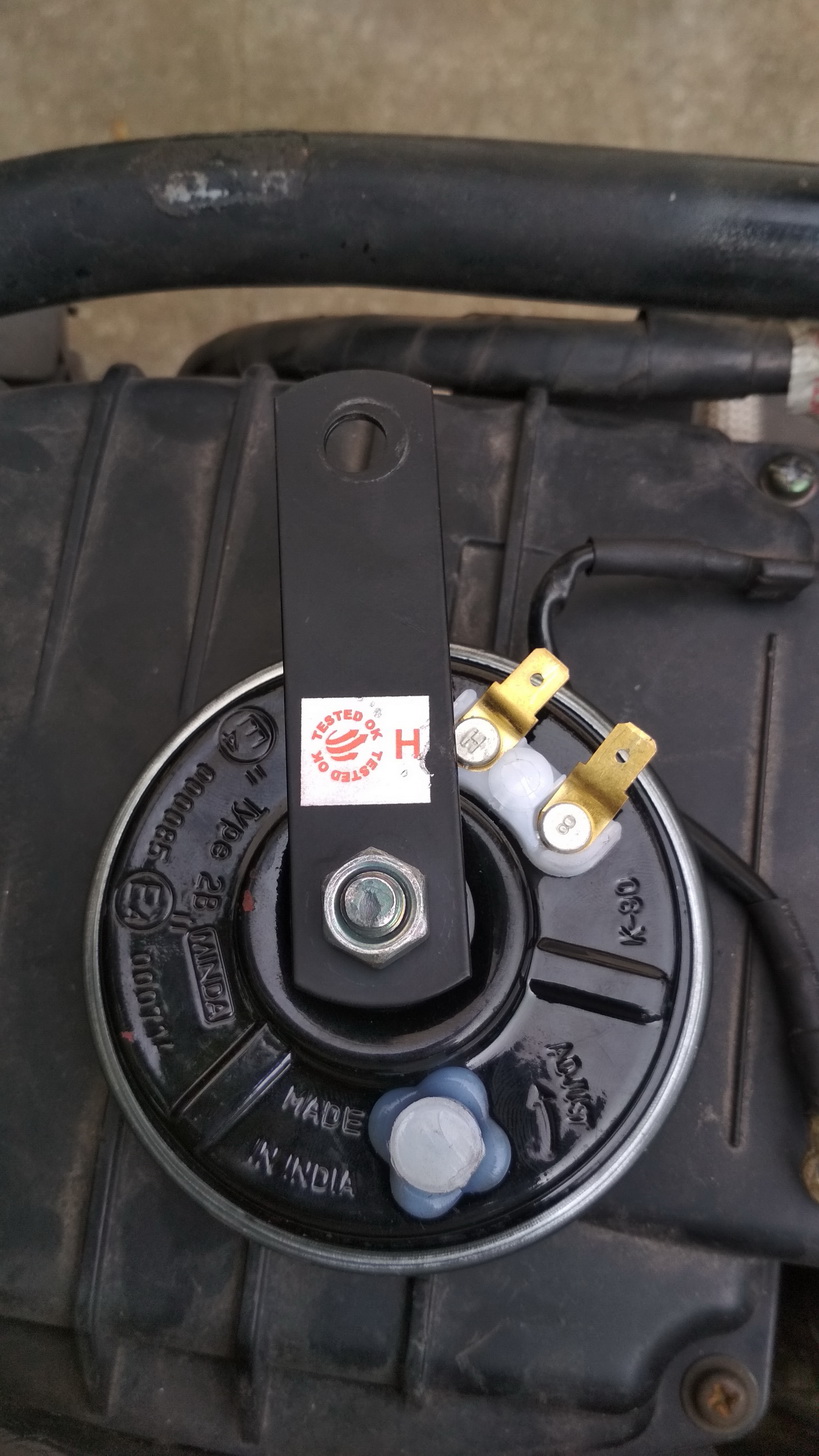

High tone.

2018-10-14 14-49-23.jpg
2018-10-14 14-49-30.jpg

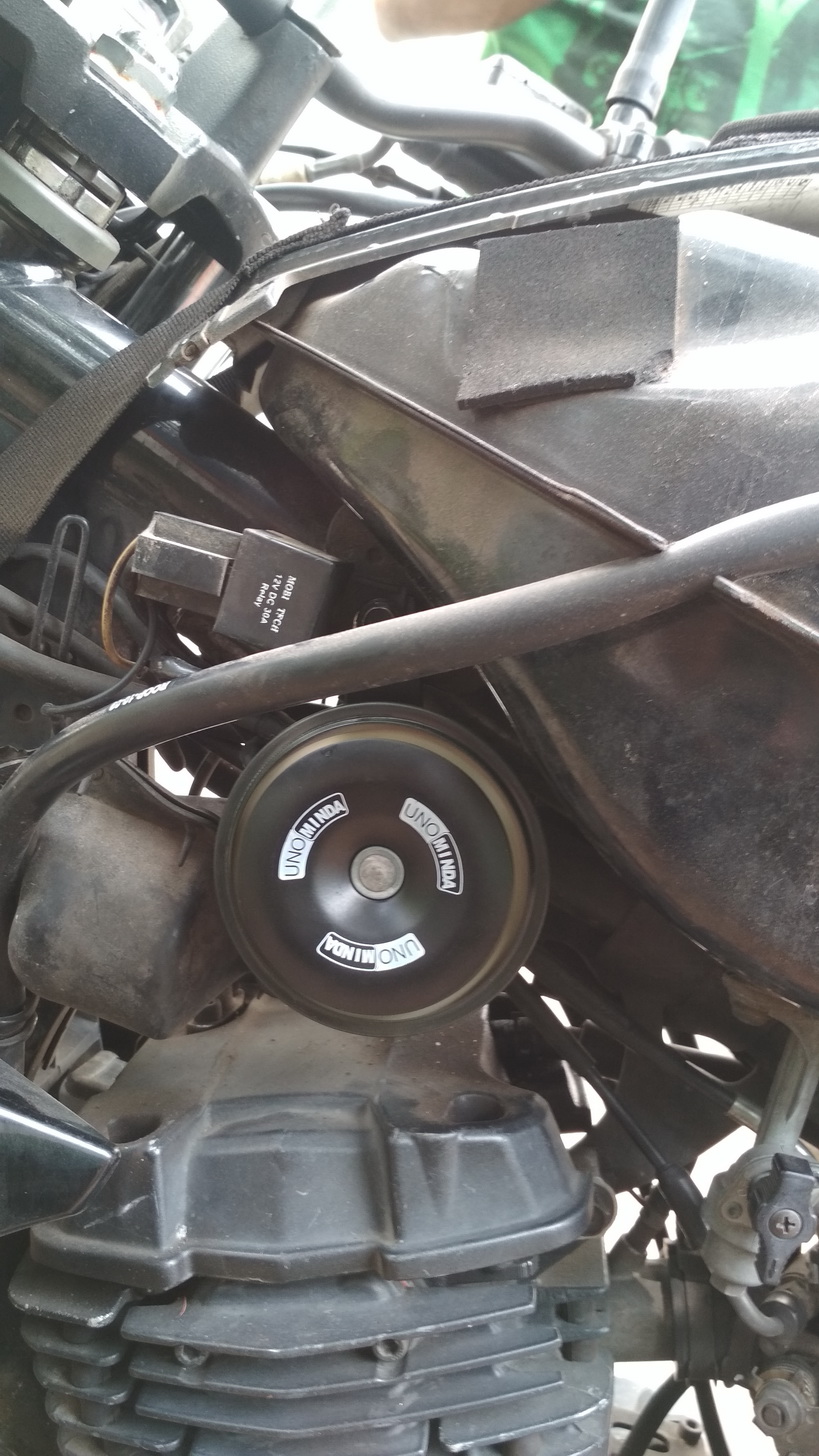

Installed at previous locations, inside tank on either side.

2018-10-14 14-50-45.jpg
2018-10-14 14-52-16.jpg

Thread Starter #334

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,971
Likes
4,807
Location
Trivandrum
Center stand bolt had fallen off, missing nut. It's 12 mm head and thread size of 14 mm bolt. Most bolts in the bike are googly like this.

2018-10-18 07-34-22.JPG

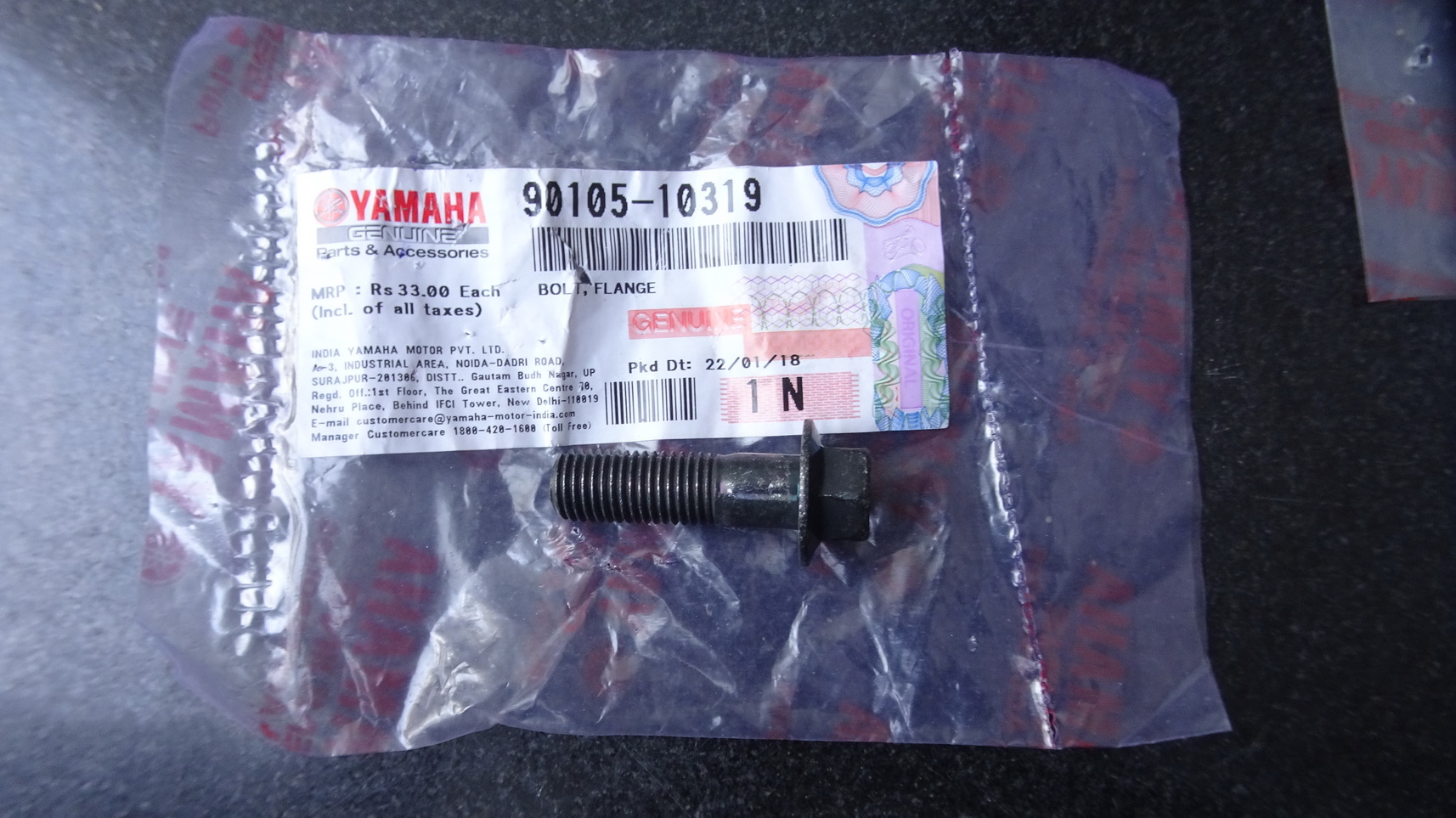

Main Stand Flange Bolt - 90105-10319 - ₹ 33.00
Bought 2 of them.

2018-10-18 07-33-52.JPG

Nut was not in stock, so got 14 mm flange nut. ₹ 5.00/piece.

2018-10-18 07-34-11.JPG


Front brake light switch was faulty, with light ON almost all the time.

Front Stop Switch Assembly 21CH398000 ₹ 80.00

2018-10-18 07-33-01.JPG

Old vs new. See the worn out head of the old switch.

2018-10-21 07-46-25.JPG

With connector and cover removed.

2018-10-21 07-48-02.JPG

Simple plug and play, if you intend using old connectors.

2018-10-21 07-51-29.JPG

Thread Starter #338

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,971
Likes
4,807
Location
Trivandrum
Renewed insurance with New India. Total premium ₹ 2,206.00 for IDV ₹ 18,221.00. Huge bump in third party premium compared to last year.

Thread Starter #339

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,971
Likes
4,807
Location
Trivandrum
Time for some carb cleaning. Some intermittent hiccups and red warning light glowing at lower rpms.

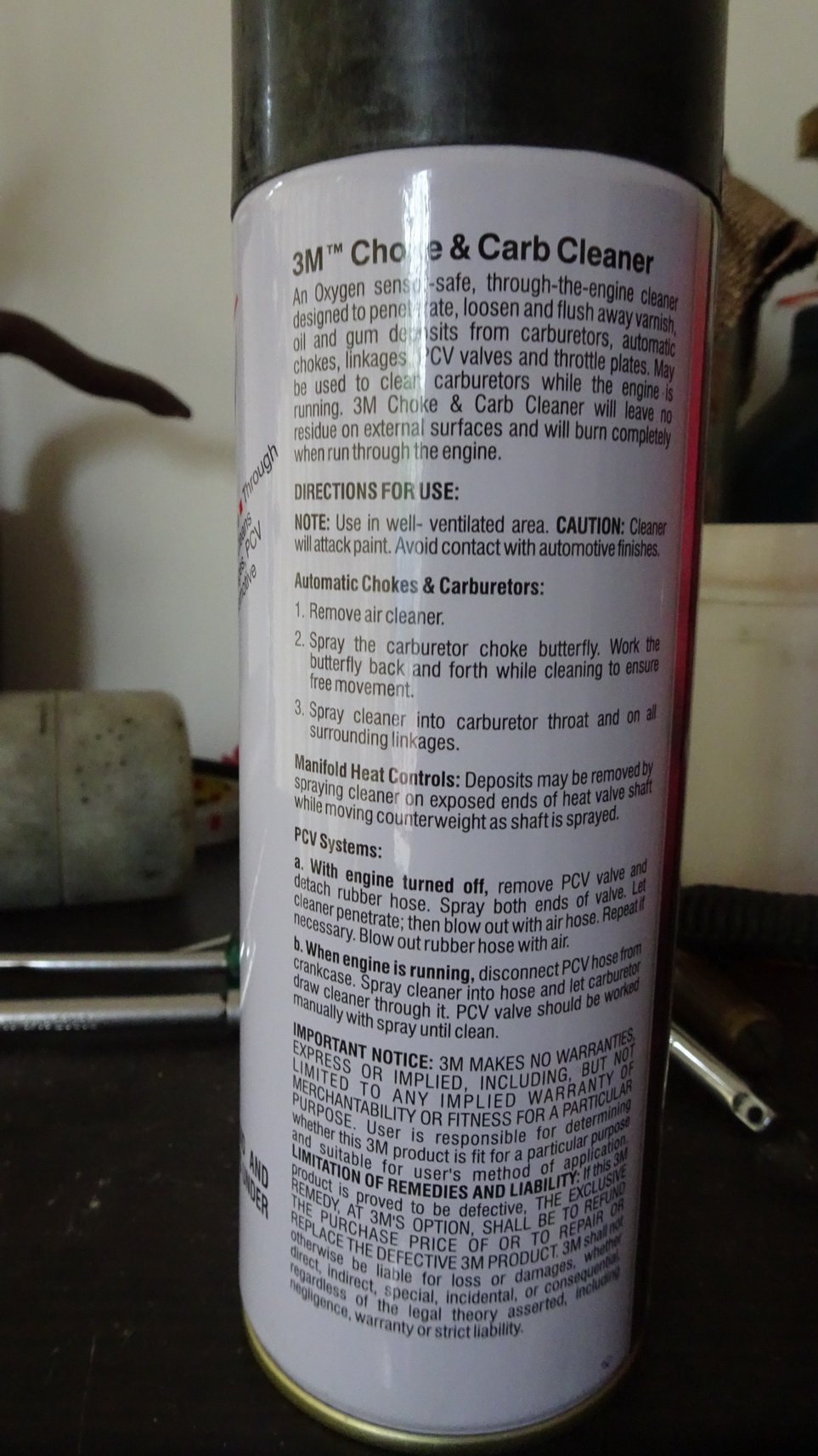

First got hold of the 3M carb cleaner. Paid some 240, a bit old stock, but chalega.

2018-11-15 07-24-08.JPG

2018-11-15 07-24-32.JPG

2018-11-15 07-24-50.JPG


Getting the carb off the bike is pretty easy. Remove the left side panel. Disconnect 2 cables and fuel hose and TPS connector. Loosen the hose clamps on either side and slide it out.

FZ-16 comes with a Mikuni carb, not sure about the model name. Part number is 21C-E4901-10.

2018-11-23 20-07-47.JPG


Dismantled. Used proper sized screw drivers and did not screw up like last time.

2018-11-23 20-13-19.JPG


Bowl not as dirty as expected. Some 70k km worth of dirt.

2018-11-23 20-15-33.JPG

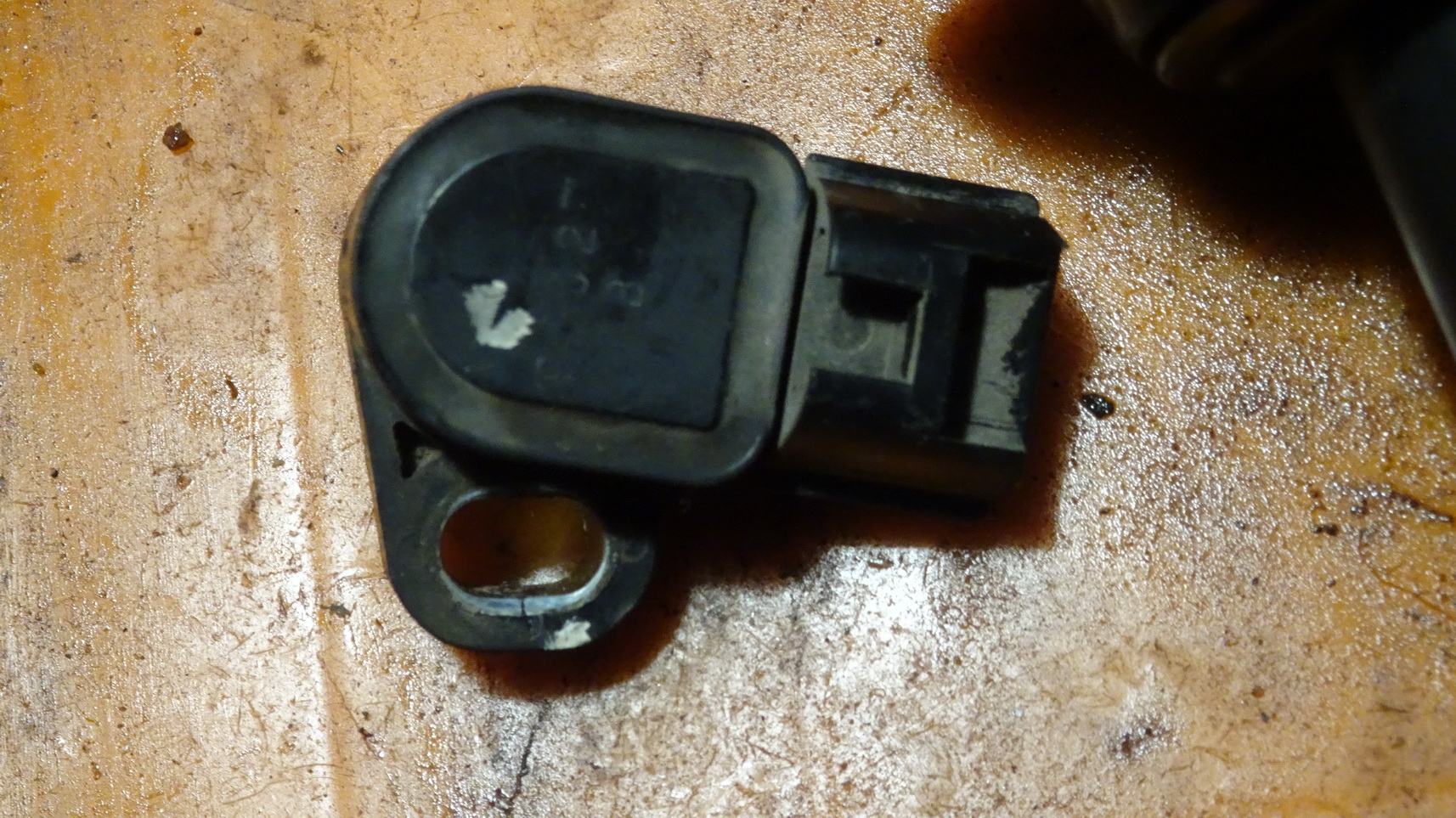

Throttle Position Sensor

2018-11-23 20-15-38.JPG

2018-11-23 20-15-43.JPG

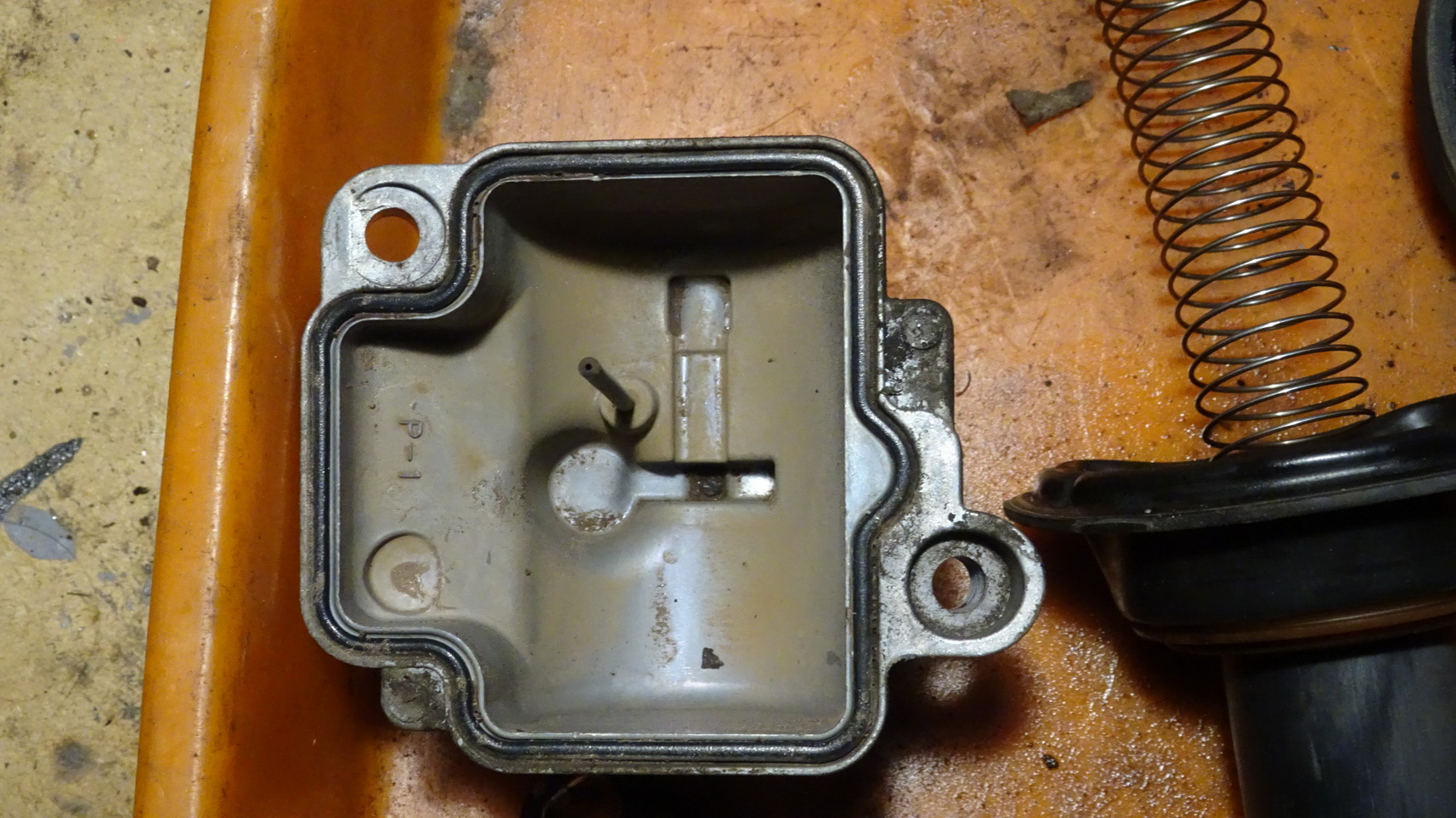

Diaphragm cover.

2018-11-23 20-15-50.JPG

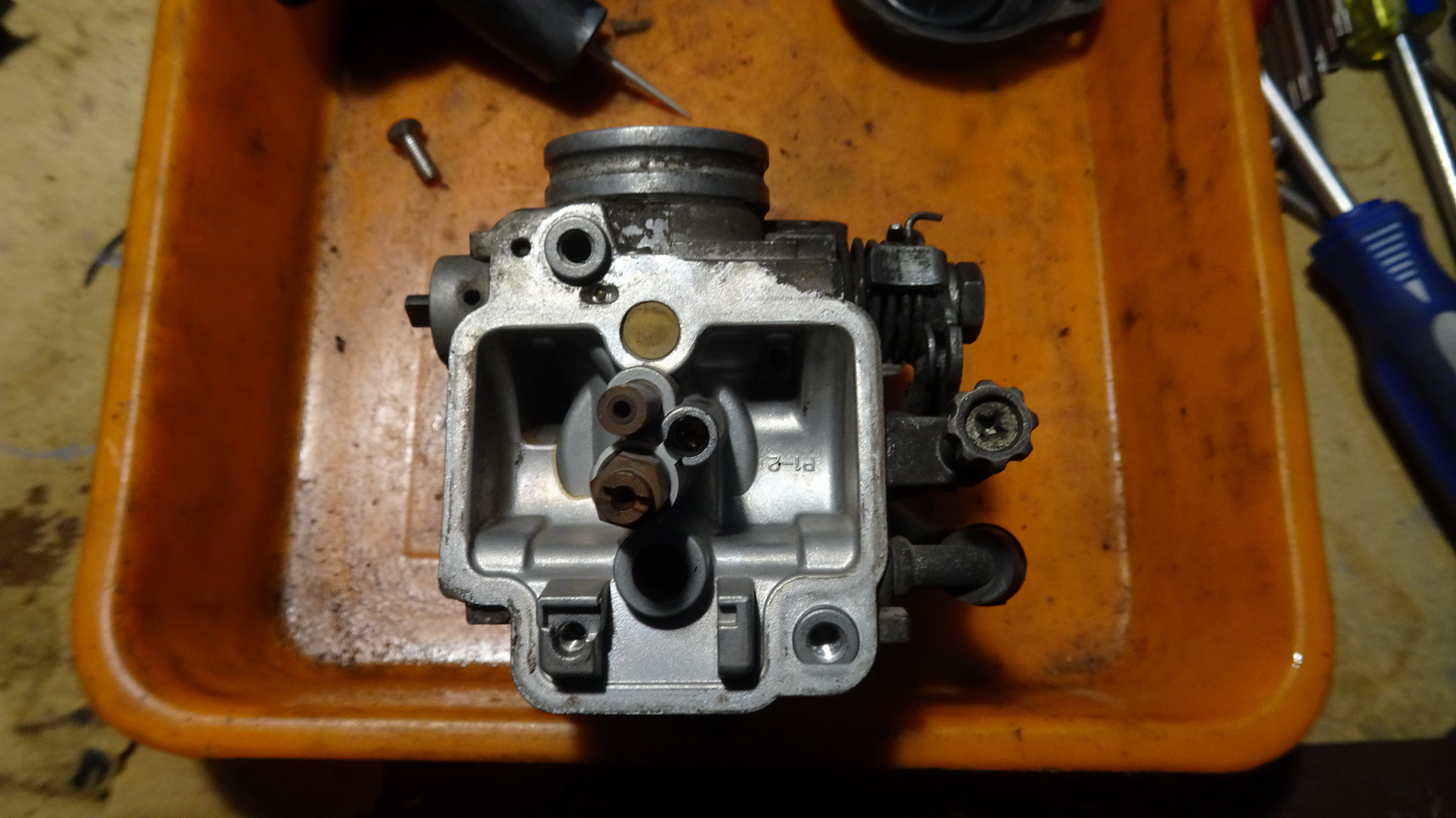

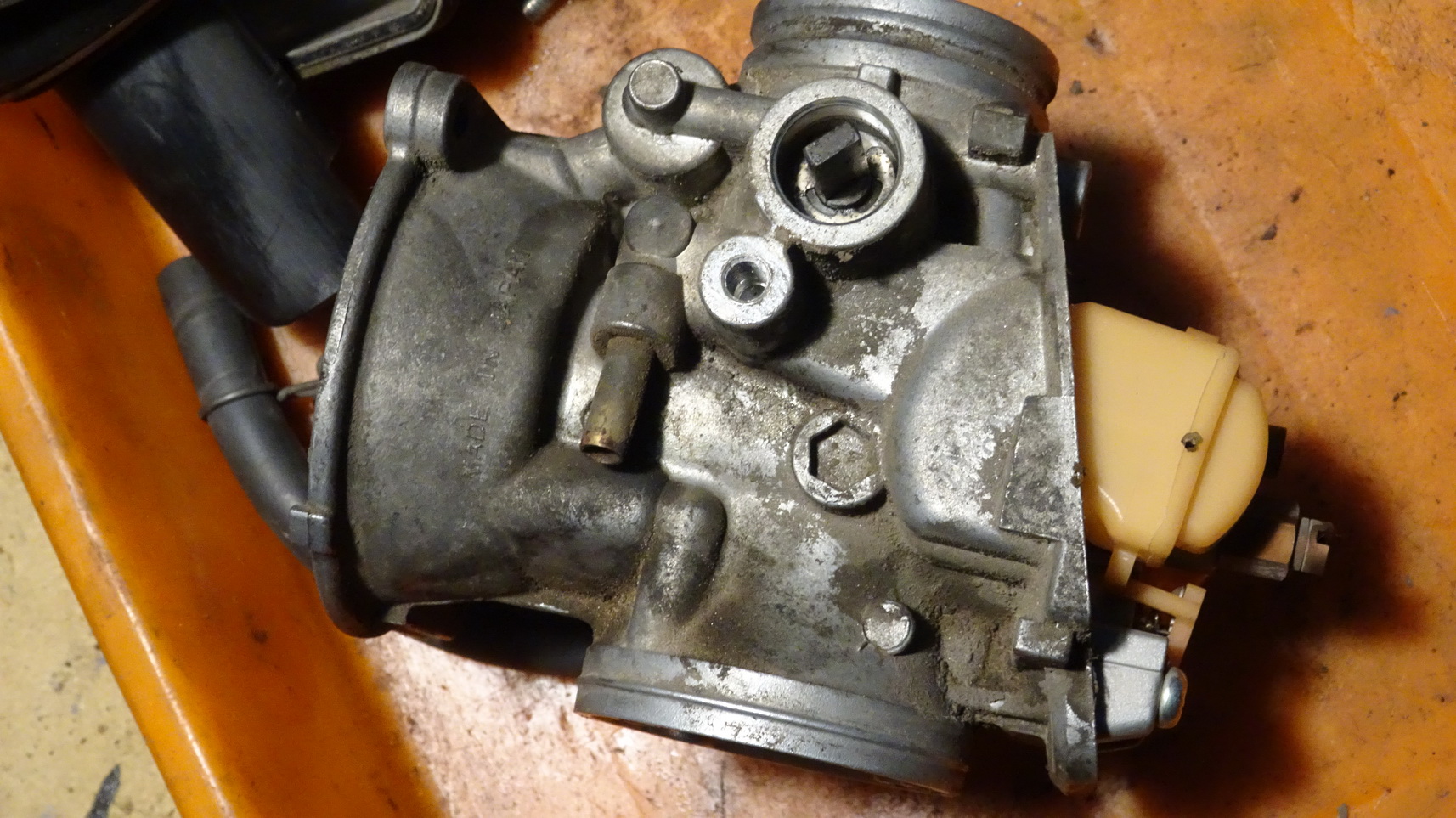

Dirty carb.

2018-11-23 20-16-00.JPG


Jets and all. Not dirty at all.

2018-11-23 20-17-00.JPG

2018-11-23 20-17-04.JPG


Butterfly
2018-11-23 20-17-11.JPG

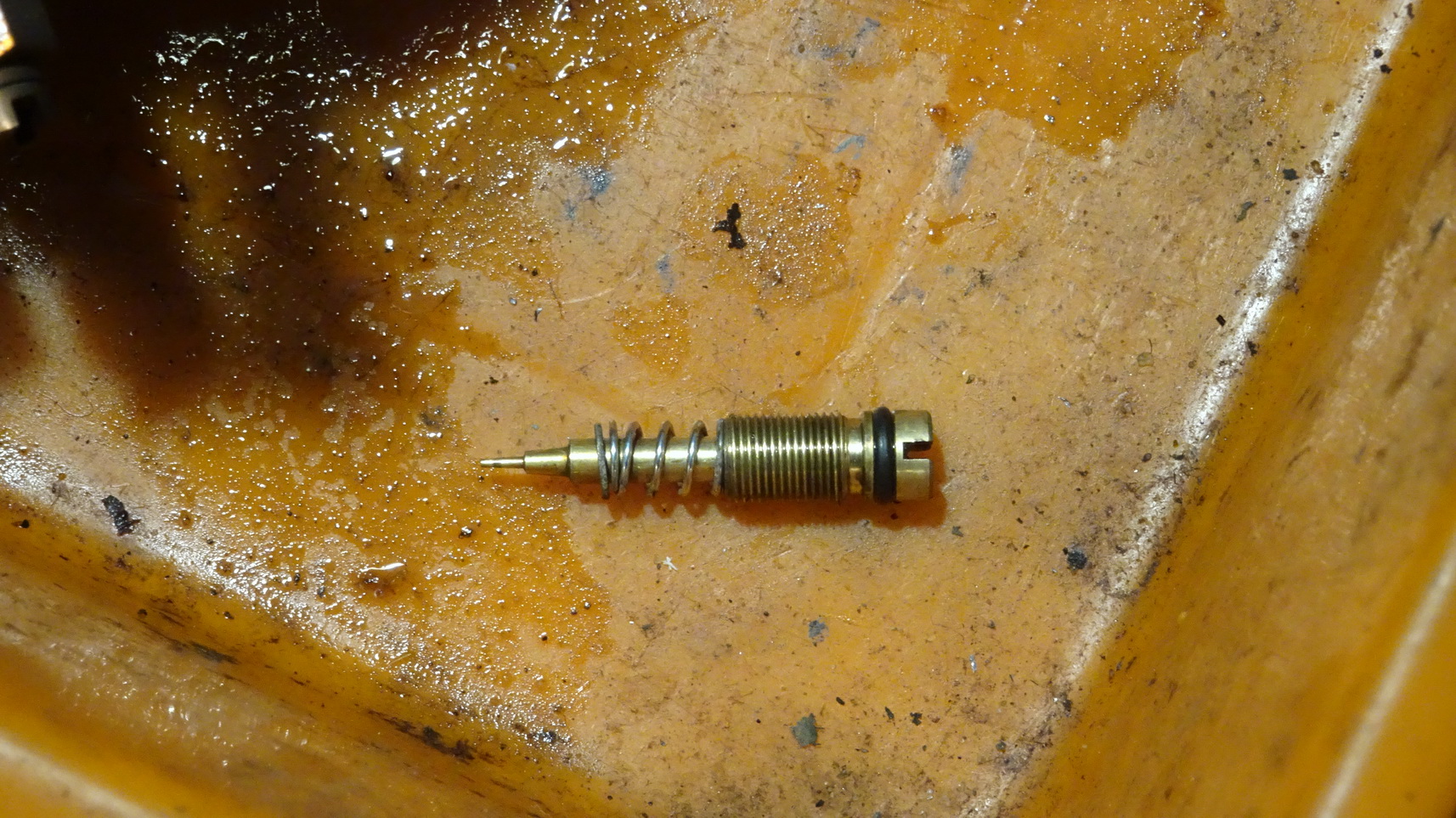

AFR screw with spring

2018-11-23 20-29-01.JPG


Carb slide and the infamous scratches. Not even 10% of the scratches the previous one had.

2018-11-23 20-31-20.JPG


Used the cleaner vigorously. It was indeed good. Dirt was flowing out even without using any force.

2018-11-23 20-34-28.JPG


Main Jet. #112.5.

2018-11-23 20-36-00.JPG

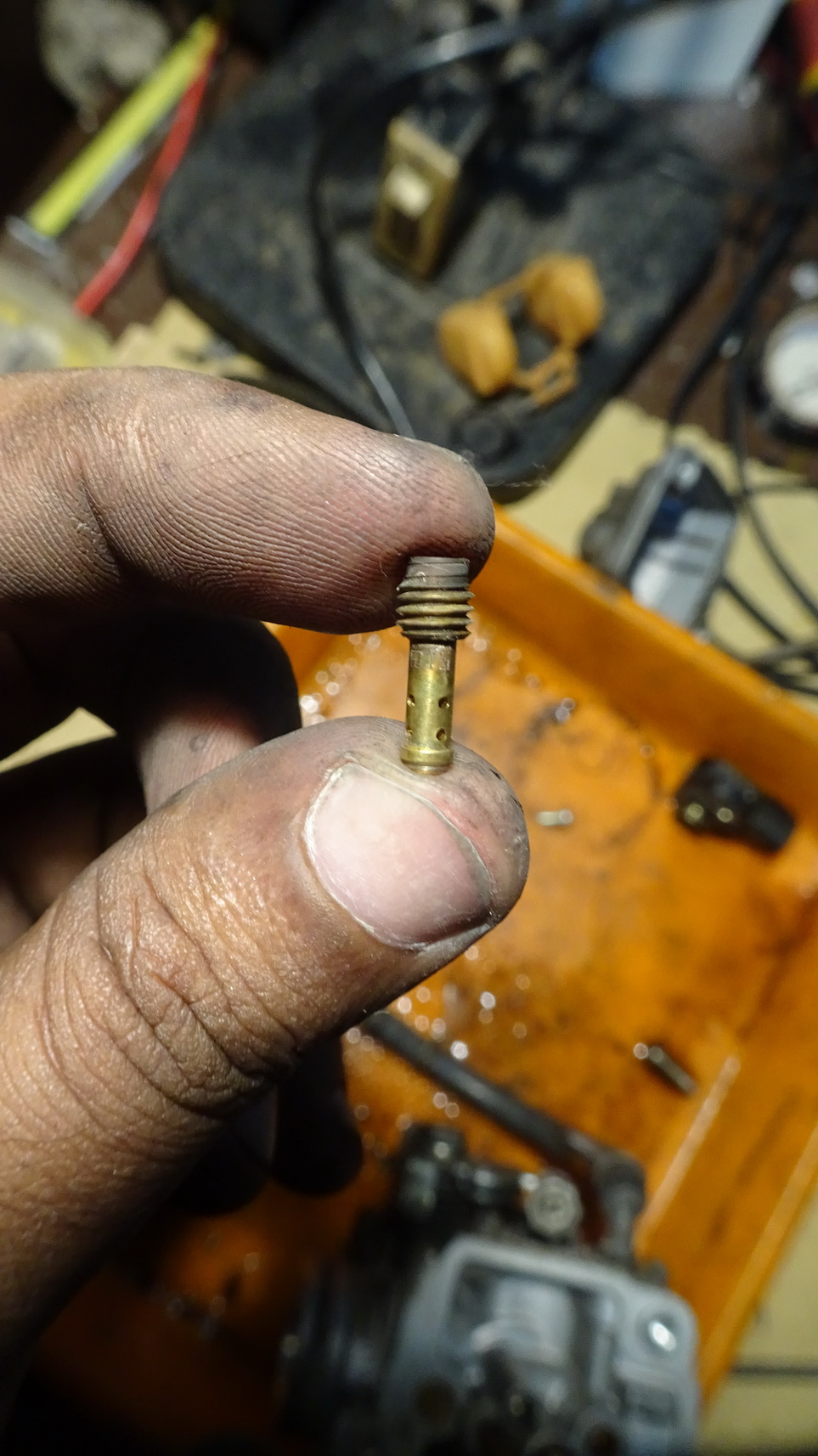

Pilot jet. #15.

2018-11-23 20-37-37.JPG


Float.

2018-11-23 20-39-23.JPG


Float needle and pin.

2018-11-23 20-39-38.JPG


Made in Japan. #Euphoric

2018-11-23 20-45-32.JPG


All set and done.

2018-11-23 20-49-58.JPG


Cleaned externals and installed back. Used the carb cleaner here also, made it easier than WD40.

2018-11-25 07-42-47.jpg

2018-11-25 07-43-21.jpg

Thread Starter #340

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,971
Likes
4,807
Location
Trivandrum

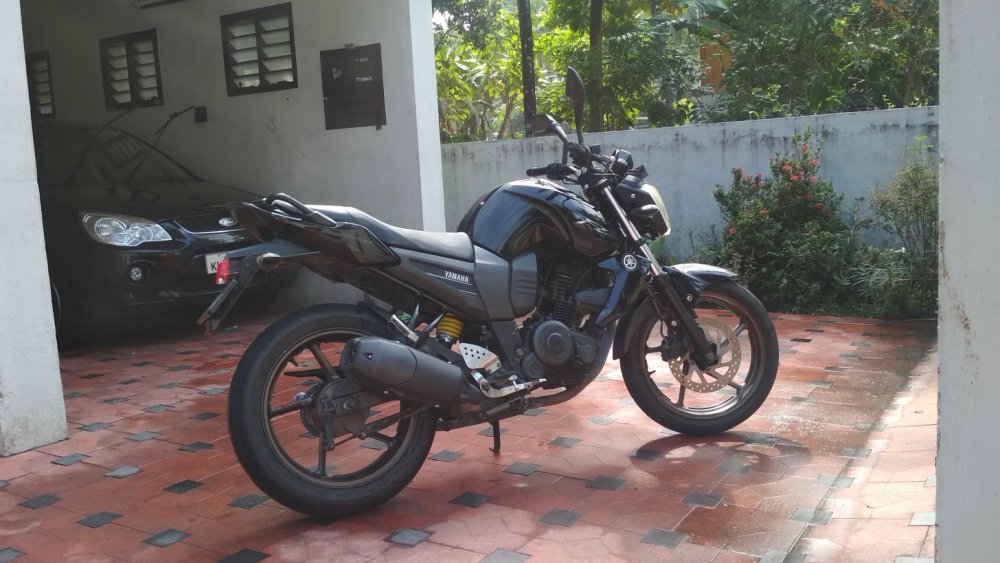

Birthday Wash

2018-11-24 10-03-25.jpg


Motul Chain Lube after a long time.

2018-11-24 10-36-25.jpg


From Birthday run.

2018-11-25 08-53-40.jpg

2018-11-25 10-45-12.JPG

2018-11-25 13-33-41.JPG


Same day lost the other center stand bolt.
2018-11-26 07-30-00.JPG

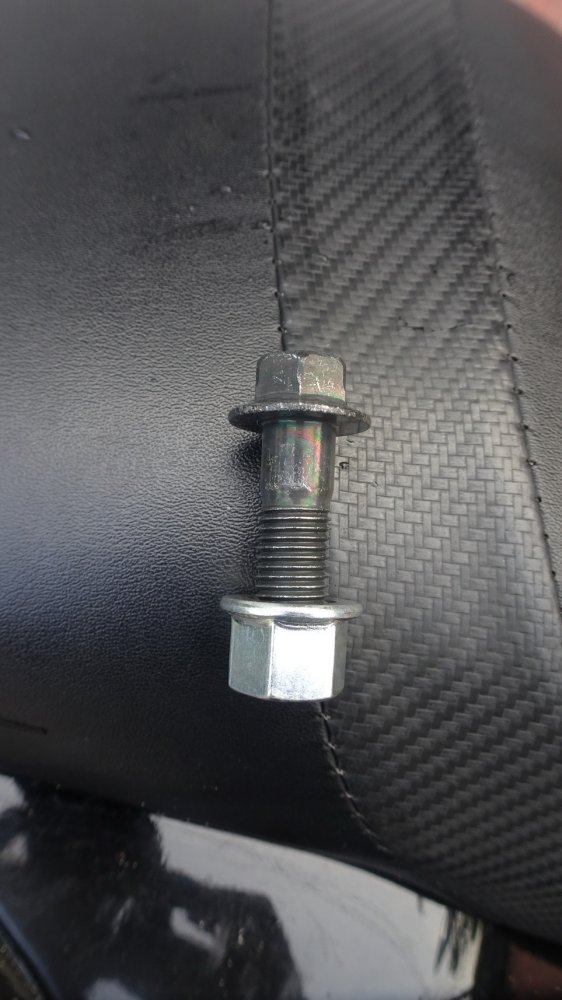

Had extra set bought previously.

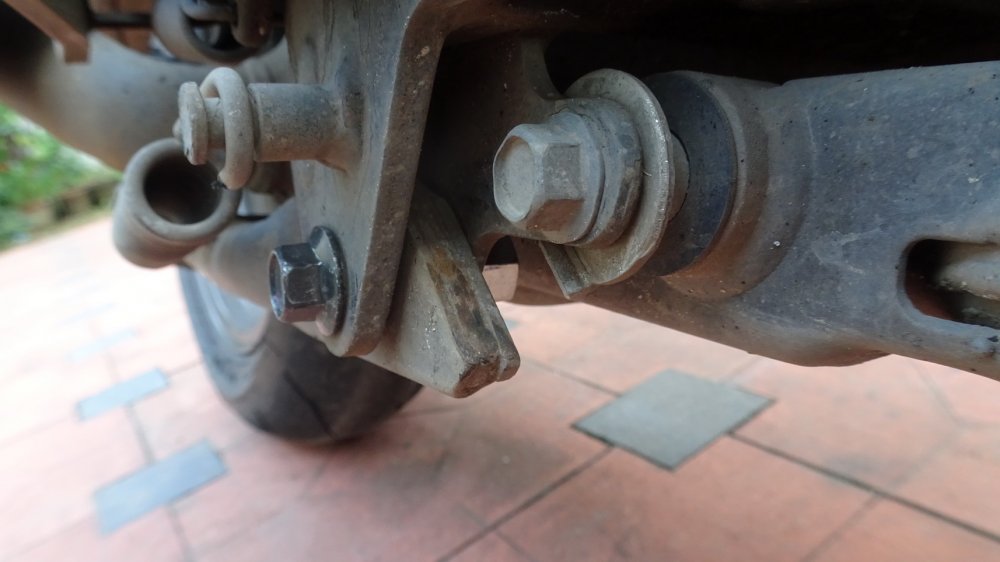

2018-11-26 07-30-19.JPG


First thing done reaching home.

2018-11-26 07-32-08.JPG

Thread Starter #341

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,971
Likes
4,807
Location
Trivandrum
December 2018:

Oil time. My favorite. Motul 5100 15W50. New 2018 stock. Made in Vietnam like 2017 batch. Paid MRP ₹ 540.00. Got from neighborhood shop, Spark Automobiles.

2018-12-16 11-09-29.JPG
2018-12-16 11-09-38.JPG
2018-12-16 11-09-45.JPG


DIY as usual. Got 850 ml of 5100 on 3k km of use, which is way better than alarmingly low volume of Yamalube full synthetic every time.

2018-12-16 10-57-11.JPG


Spark plug condition.

2018-12-16 10-57-05.JPG

Joined
Jan 7, 2019
Messages
3
Likes
2
Location
Ahmedabad
February 2018:

My Boy

View attachment 241656

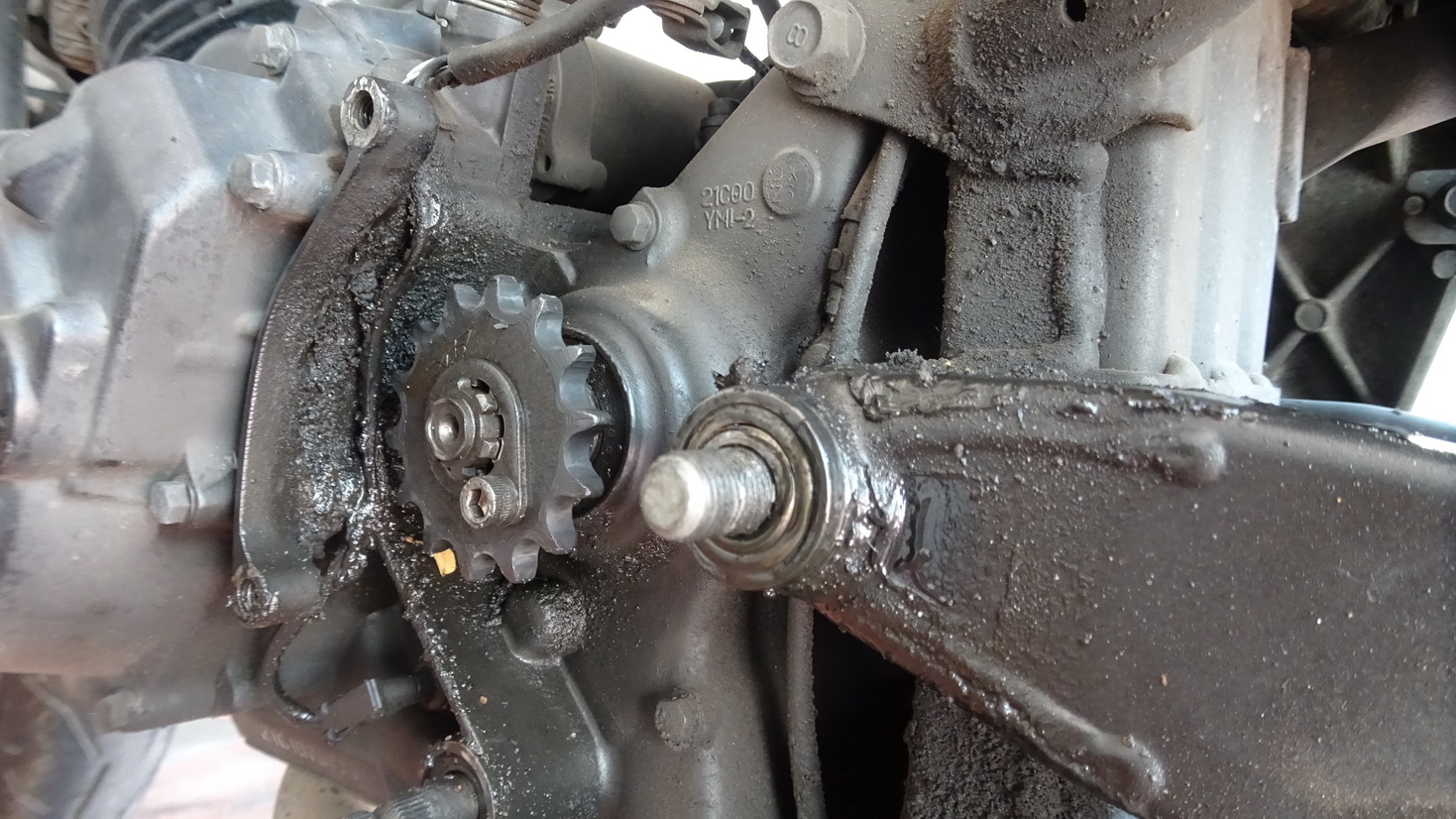

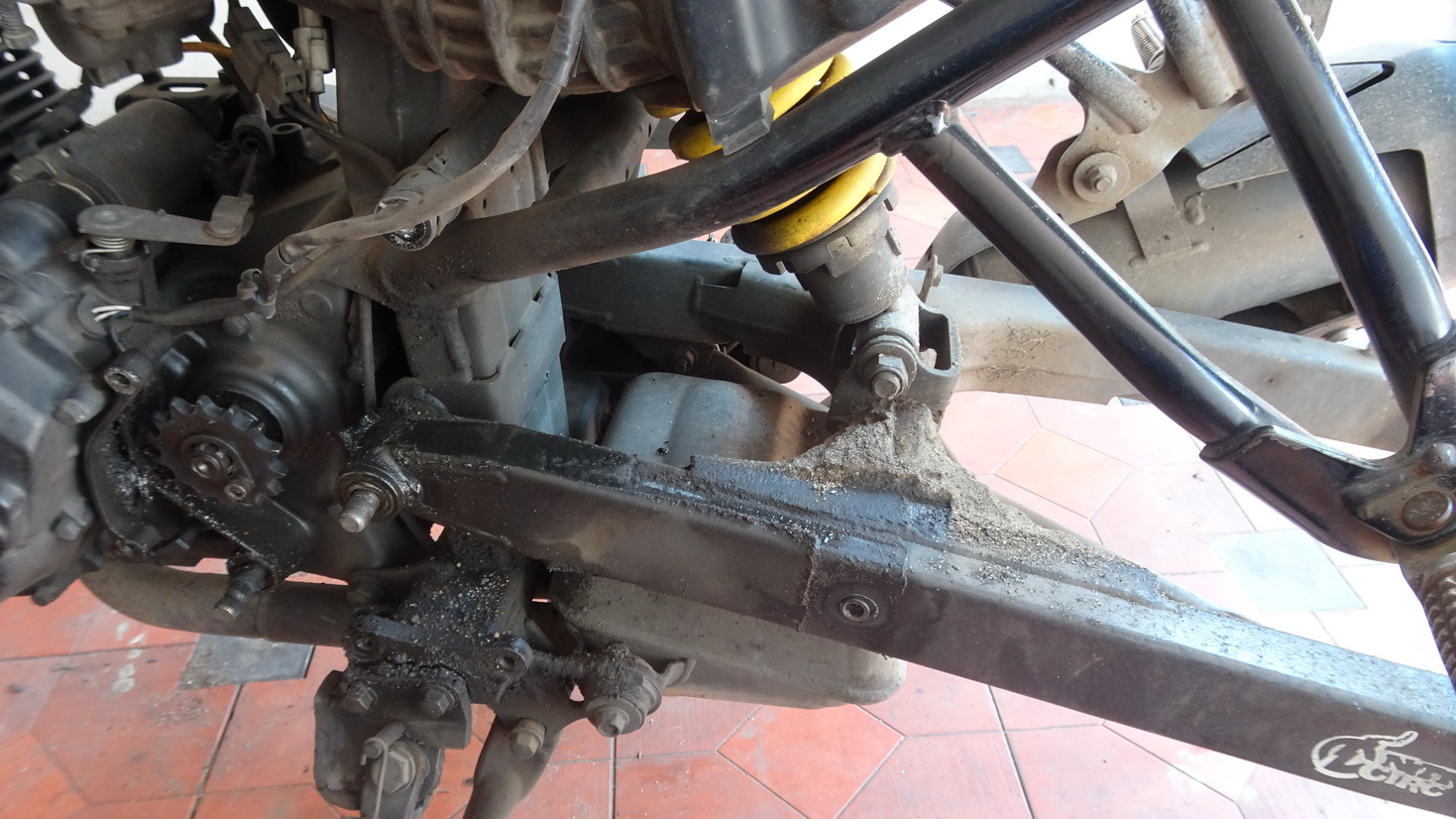

Removed to lube the swingarm. The amount of dirt accumulated.

View attachment 241657
View attachment 241658
View attachment 241659
View attachment 241660

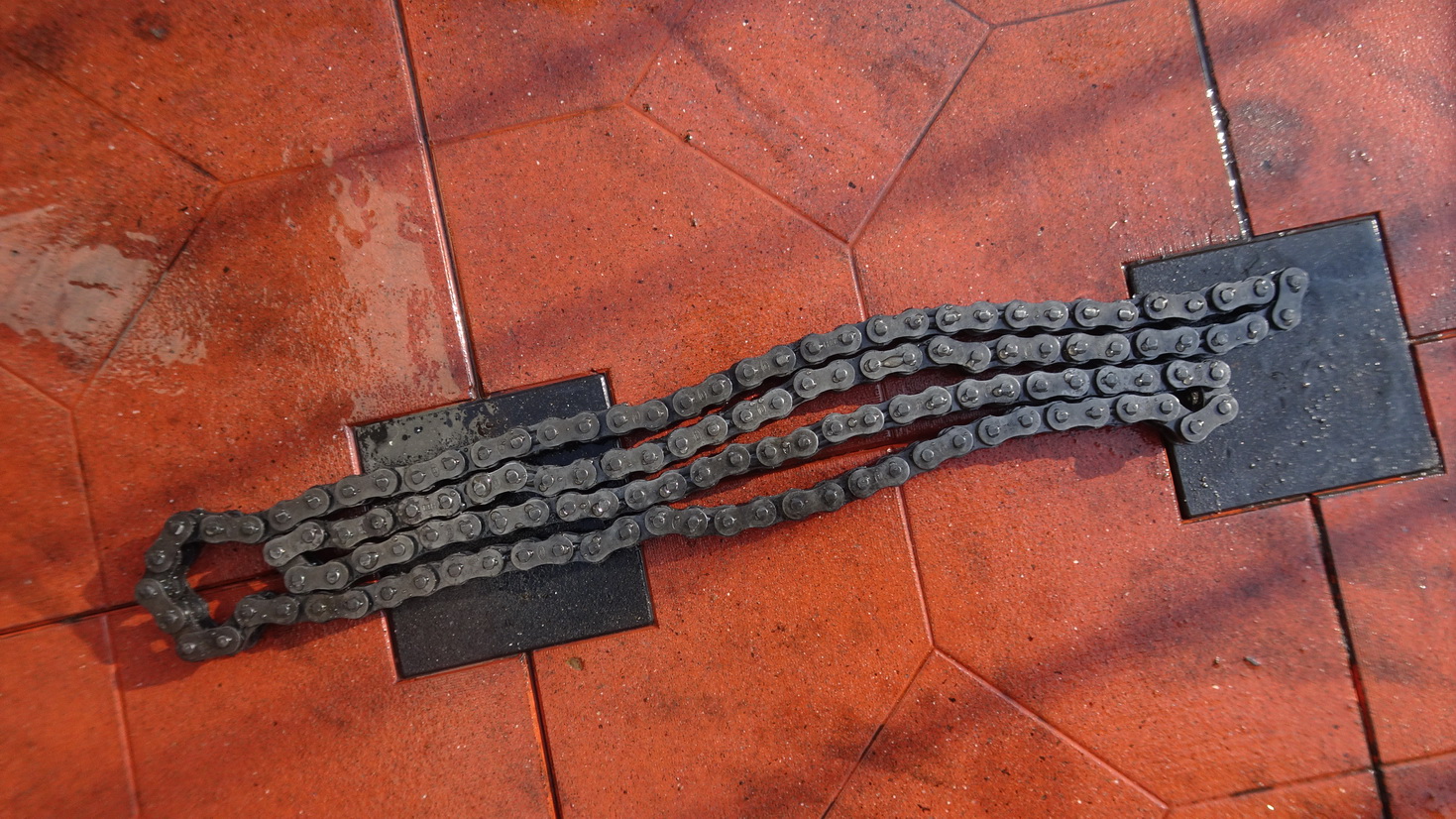

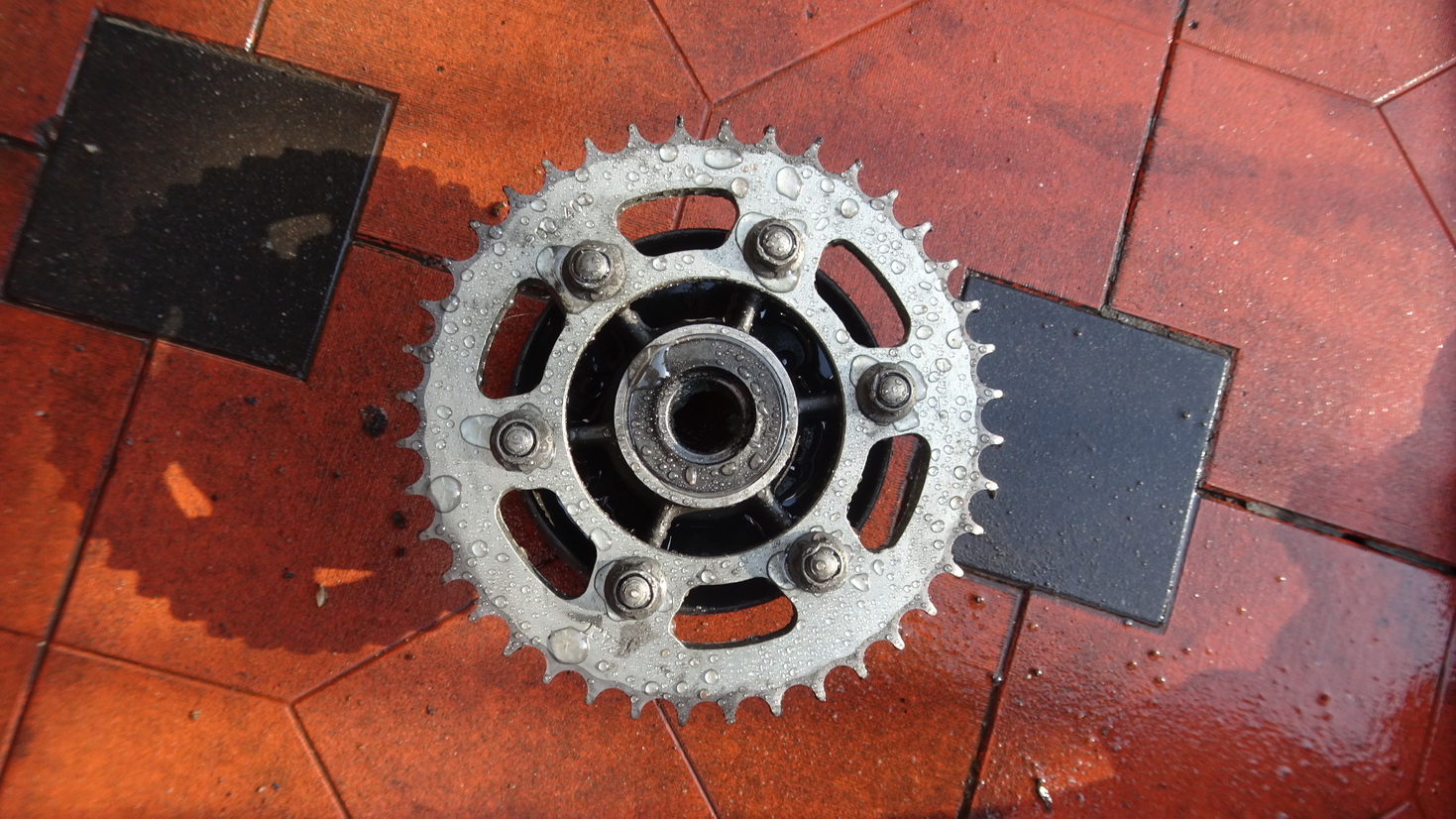

Did a thorough clean up.

View attachment 241661
View attachment 241662
View attachment 241663

Spanking new

View attachment 241664

Some part:

Clutch Lever Boot - 20PF6372000 - ₹ 11.00

View attachment 241665

Sprocket Holder - 4LSE74560000 - ₹ 10.00
Sprocket Holder Flange Bolt - 950270601000 - ₹ 2.00

View attachment 241666

Clutch Lever Adjuster Bolt - 901230804600 - ₹ 20.00

View attachment 241667

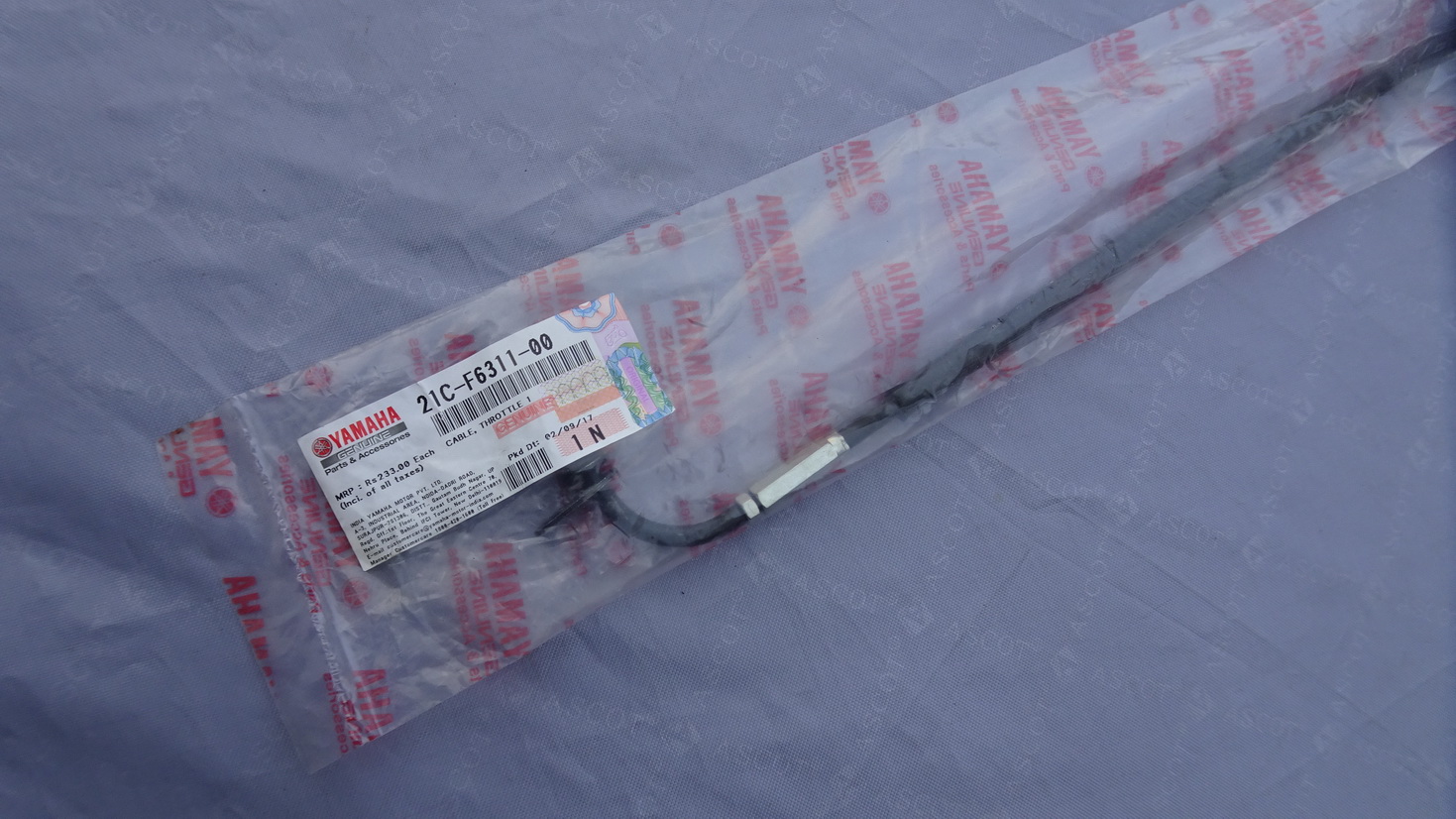

Throttle Cable - 21CF63110000 - ₹ 233.00
First model FZ had extra long throttle cable, later ones won't fit.

View attachment 241668
View attachment 241669
View attachment 241670
(Some local vendor)

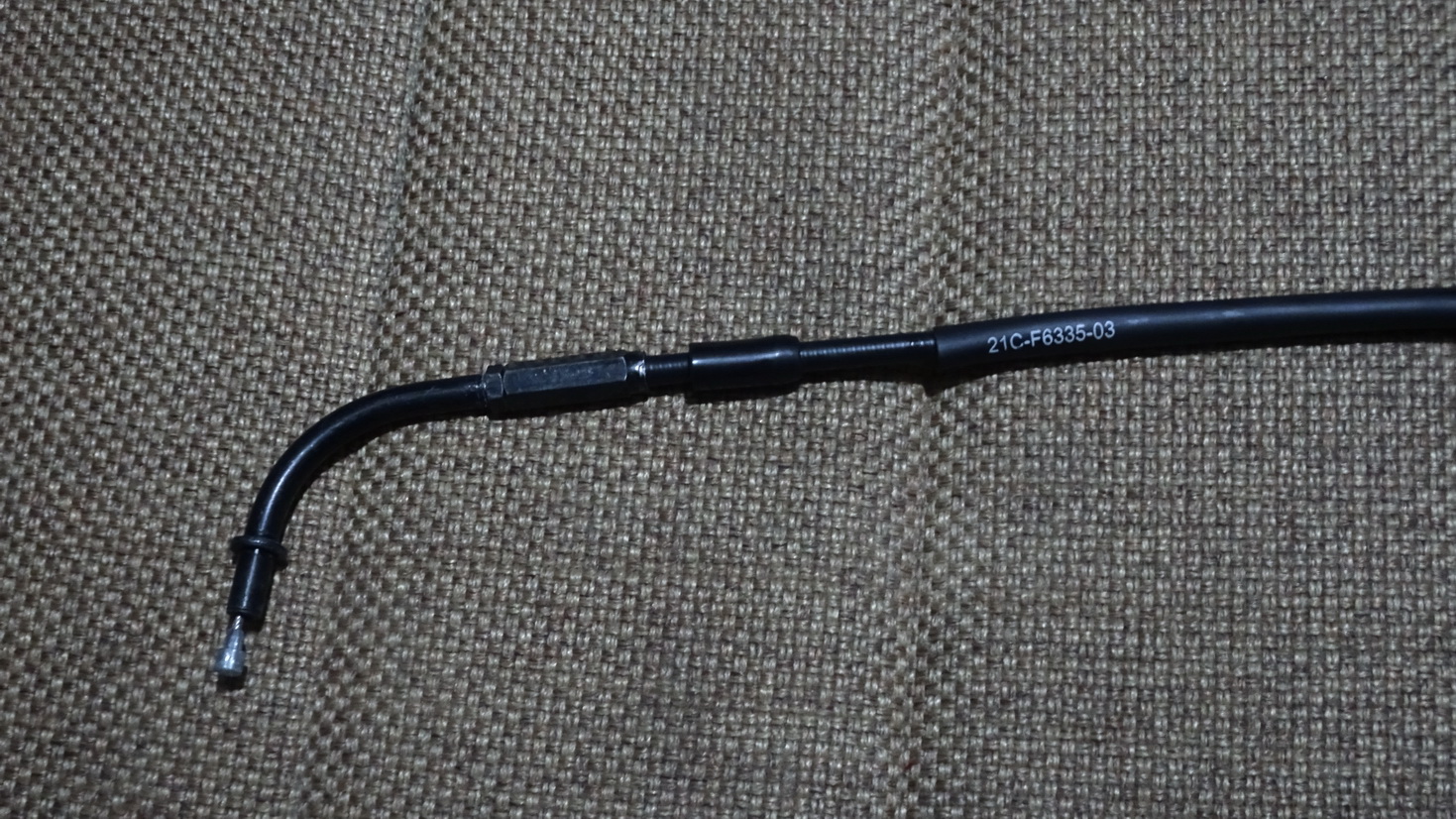

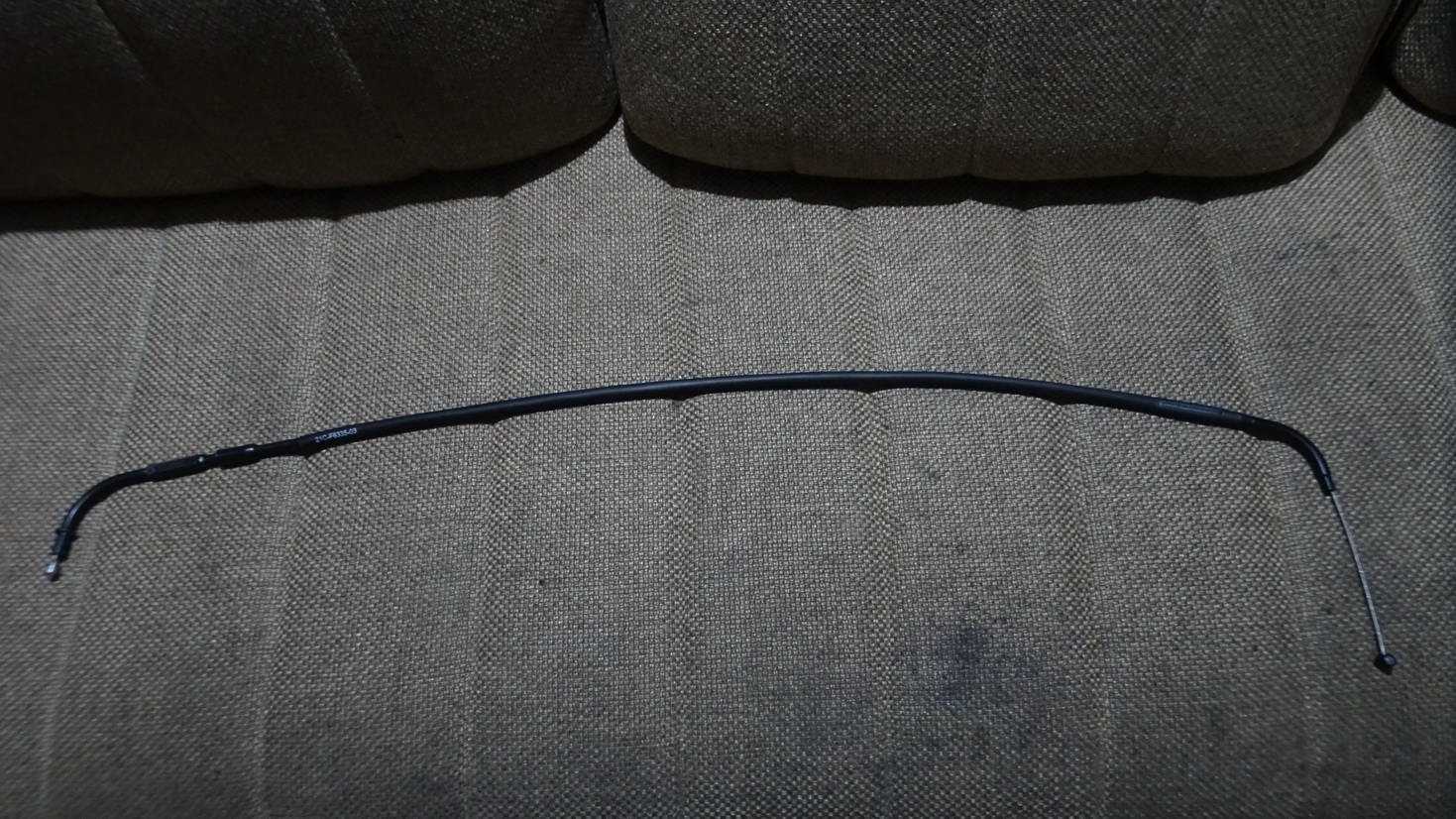

Clutch Cable - 21C-F6335-03 - ₹ 133.00

View attachment 241671
View attachment 241672

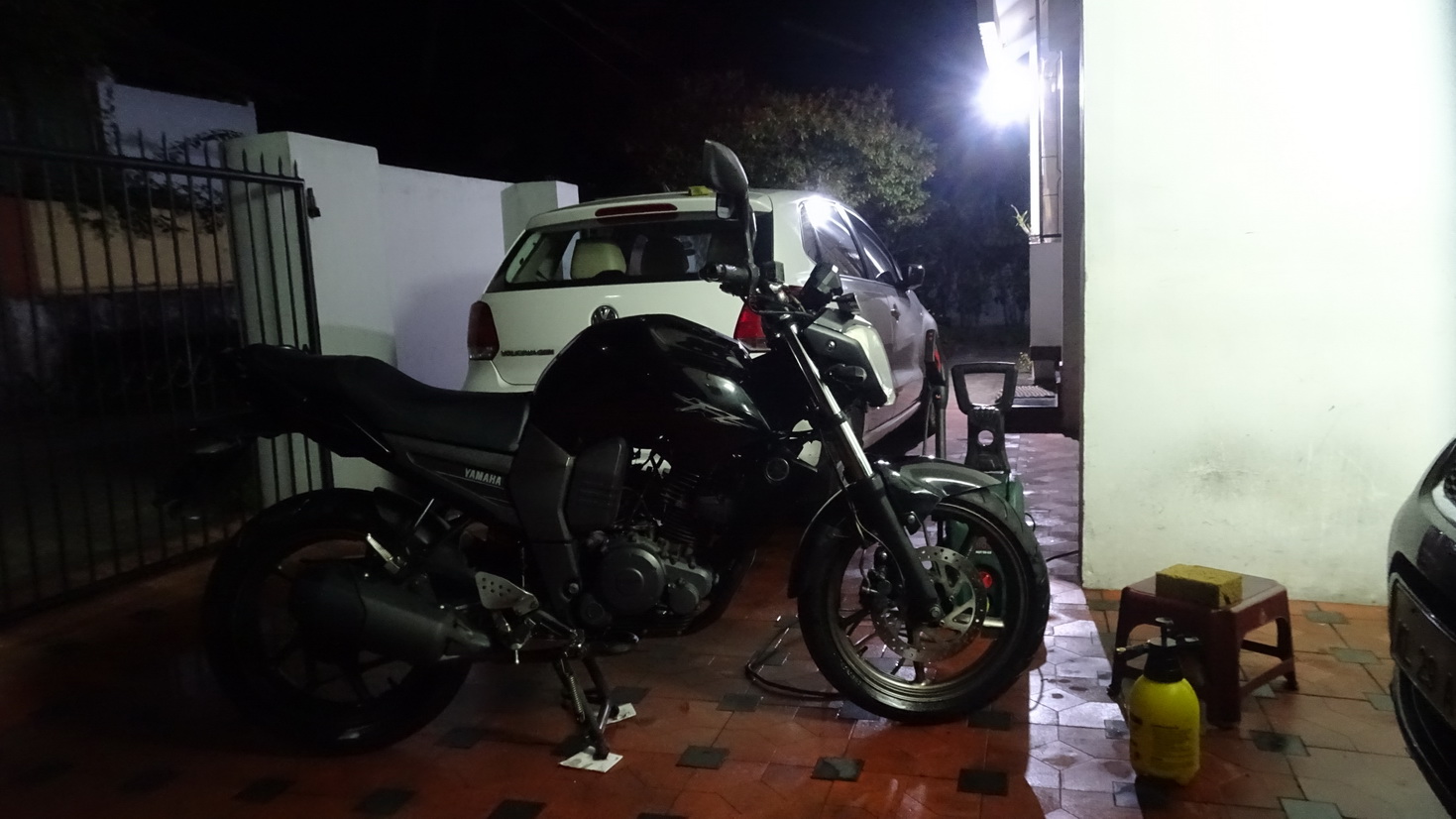

Thorough wash after changing cables.

View attachment 241673

119k

View attachment 241674

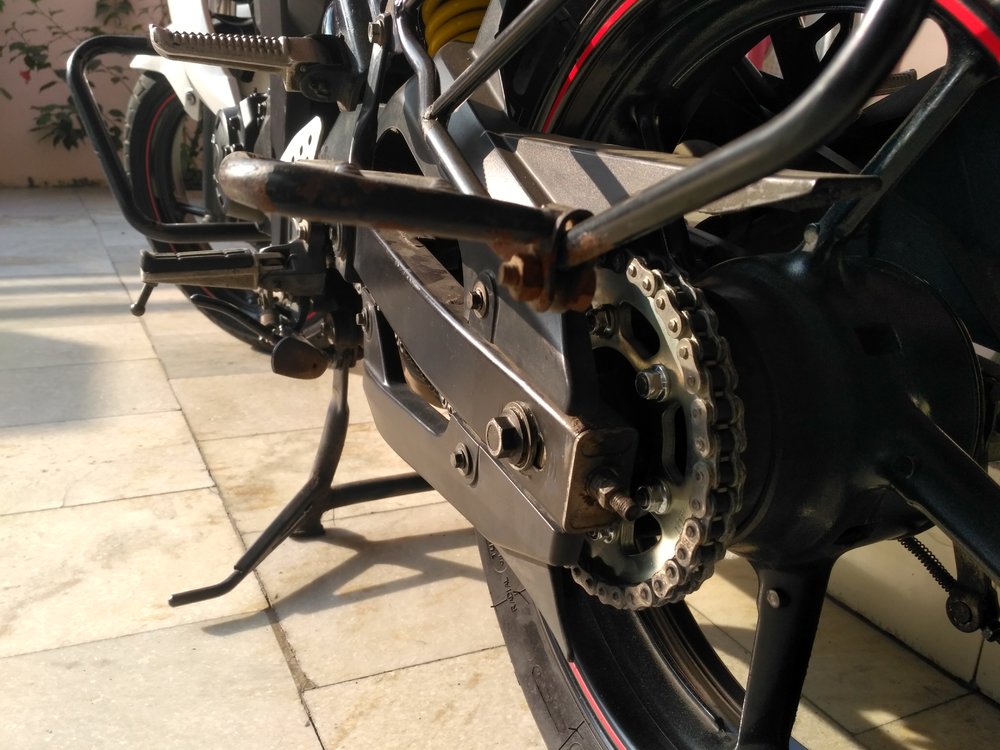

Installed back the footpeg feeler. Removed it long back as folded jeans was getting stuck. Change in habits.

View attachment 241676

Now it someone asks how is the Diablo Rosso.

View attachment 241675

Would simply show this [evil]. This is with mild roundabout cornering. Metzler like leech grip or even more.

View attachment 241677

Gave bike to Riders Garage, the same guy who fixed all the issues with PowerPig. Listens to the customer, understands and fixes every single problem. Wasn't expensive too. Barricade had unresolved tak sound from rear since delivery, asked every time at SVC as well as previous mechanic. He fixed it. Front brake calipers slids out of spring, which I tried fixing multiple times, which also got solved. Brother is planning a 1k km trip, so did not want to take risk with chain as it was making lot of noise. Changed it as well. Changed long due rear wheelbearings. By the by, gave him primarily for clutch overhaul for the trip.

Total bill: ₹ 3450.00 including parts and labor.

Approx parts breakup
Chain kit - ₹ 1,425.00
Damper Clutch - ₹ 100.00
Brake shoe kit - ₹ 306.00
Rear wheelbearing kit - ₹ 280.00 (3 pcs)

Oil and clutch plates provided by me adding another ₹1050.00 approx, making total ₹ 4600.00.

Jobs done:
- Engine reset. (Timing chain and valve install done previously was horrible).
- Valve clearance (A bit loosely set now, climbing rev easily).
- Clutch overhaul (60k on previous set).
- Chain sprocket (Did only 22k km on previous set, changed for trip, forgot to pick the old one).
- Rear wheelbearing.
- Brake shoes.
- Caliper issue fix.
- Tune up.

Bike is now butter smooth. No rattling or annoying sounds even dashing potholes. Accelerates really well, the best ever. Now happy in 60-70 range, no transitional vibrations. Tried 100, does without drama. Mileage back to 42 kmpl with a bit hard revving.

View attachment 241678
View attachment 241679


Any finally wash + detailing.

View attachment 241680

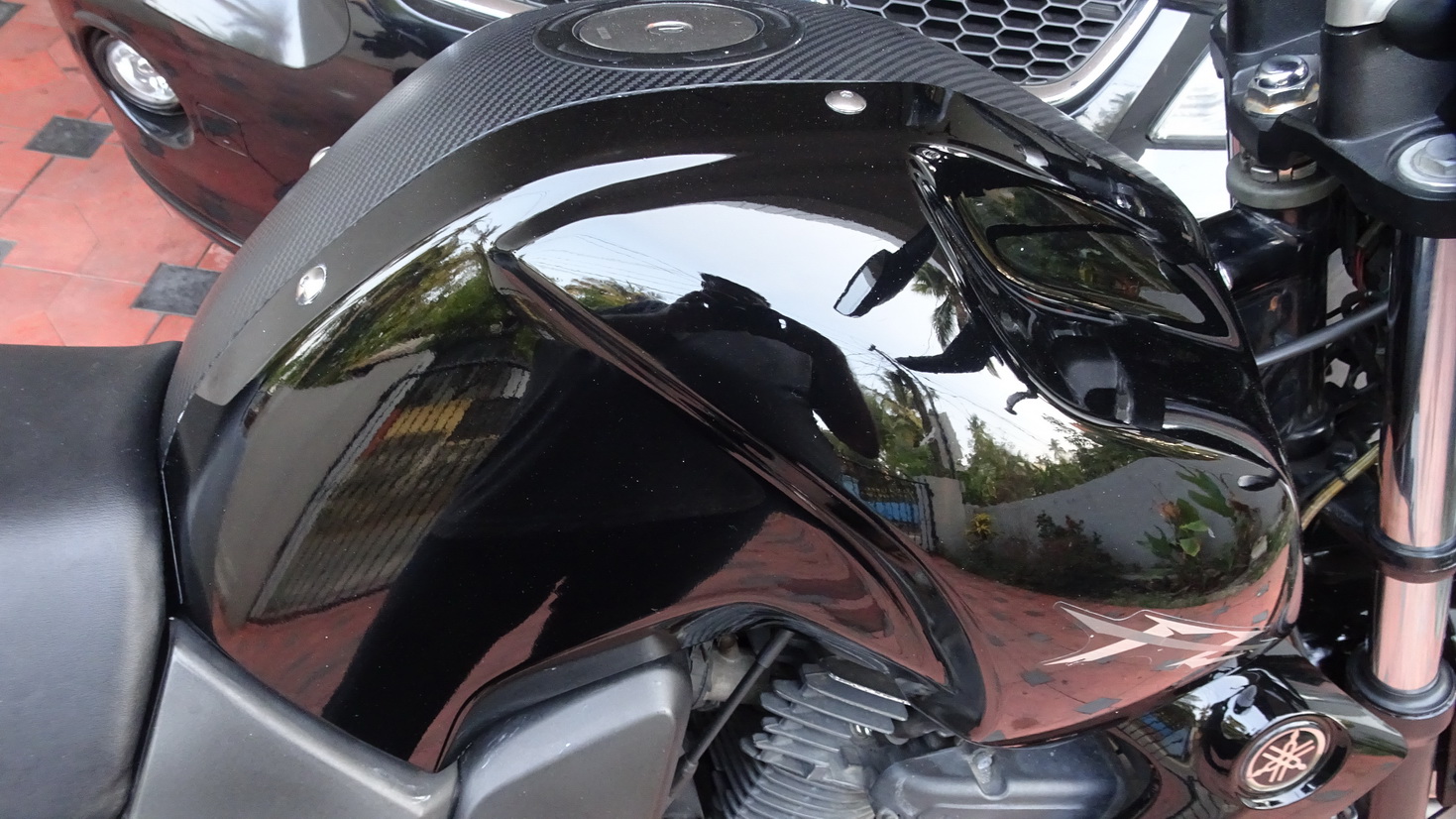

Meguiars Ultimate Compound + Tech Wax 2.0

View attachment 241681
Just after chain sprocket set replacement, is it necessary to lube it immediately, or we can use it for some kilometres and then lube as required? I did the same DIY taking your awesome thread into reference, I must say you have done a great job maintaining the beast.

Thread Starter #343

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,971
Likes
4,807
Location
Trivandrum
Just after chain sprocket set replacement, is it necessary to lube it immediately, or we can use it for some kilometres and then lube as required? I did the same DIY taking your awesome thread into reference, I must say you have done a great job maintaining the beast.
Thanks man.

Most chain comes prelubed, the white greasy texture. No need to lube immediately, but no harm doing so.

Joined
Jan 7, 2019
Messages
3
Likes
2
Location
Ahmedabad
Thanks man.

Most chain comes prelubed, the white greasy texture. No need to lube immediately, but no harm doing so.
Hey! Thanks for the earliest response. I had kept the chain with factory lube itself and it's performing decently.

I am also confused for spark plug replacement between Bosch Twin electrode U5 and NGK G-Power. Are the twin electrode spark plugs really better than single ones as they have better combustion capabilities? Have you ever used it?


Attachments

Thread Starter #345

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,971
Likes
4,807
Location
Trivandrum
Hey! Thanks for the earliest response. I had kept the chain with factory lube itself and it's performing decently.

I am also confused for spark plug replacement between Bosch Twin electrode U5 and NGK G-Power. Are the twin electrode spark plugs really better than single ones as they have better combustion capabilities? Have you ever used it?
Never used the Bosch. Many were complaining of overheating issues with it. Been using G-Power since almost the same year I bought the bike. Bike cranks easily at any cold temp comparing stock. Apart from that nothing really noticeable. It's maintenance free. Fit it, forget it. No cleaning or gap adjustment needed.
