Barricade - Yamaha FZ-16 (2009) - Midnight Black


Thread Starter #166

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,624
Likes
3,638
Location
Trivandrum
September:

Front end started making taktak noise. Was sure that it was wheel bearing. Took it to ASC. SA insisted on changing brake rotor as it was bend. I have been using it so since 1 year of ownership as bite was good and the bend gave an ABS kick in like feel [evil]. Still decided to change it. Made them change both side bearing, they always do only the affected side.

Wheel Bearing 93306252XG00 ₹ 80.00x2
Brake Disc Rotor 21CF582U0000 ₹ 795.00
Front Wheel Bearing Replacement ₹ 70.00
Disc Plate Replacement ₹ 150.00

Total Bill - ₹ 1205.00
2015-10-01 07-09-26.JPG


Random pics:

2015-10-30 10-42-00.JPG
2015-10-30 10-47-30.JPG

Thread Starter #167

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,624
Likes
3,638
Location
Trivandrum
September again:

Had a small spill. Cone set took the toll. Had to change it again in 3 month interval.

Race Bearing Set 5TSW66040000 ₹ 309.00
Race Bearing O-Ring 902022614200 ₹ 2.00
Fork Stem Nut 901792500200 ₹ 30.00
Clamp 904648080200 ₹ 5.00
Racer Bearing Replacement ₹ 125.00

Total - ₹ 471.00


November:

Took it for another off road session. Unfortunately ended up tearing fork oil seal again. This time ended up changing fork inner tubes also since it was fully scratched and tearing oil seal frequently.

More unfortunate was bike ended up being in service center on the day of it's 6th birthday.

Oil Seal 4EB231450100 ₹ 250.00 x 2
Inner Tube 21CF311000000 ₹ 1,240.00 x 2
Fork Overhaul ₹ 200.00

Total - ₹ 3200.00

Renewed insurance the same day. Paid ₹ 907.00 for full cover insurance from New India Assurance.


Pics:

2015-11-19 21-51-36.JPG
2015-11-19 23-59-52.JPG
2015-11-20 08-10-19.JPG

Thread Starter #168

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,624
Likes
3,638
Location
Trivandrum
``

2015-12-04 18-19-14.jpg

Bought some goodies.

Swingarm Bush - 21CF218400 - ₹ 40.00 x 2

2015-12-11 22-48-36.JPG

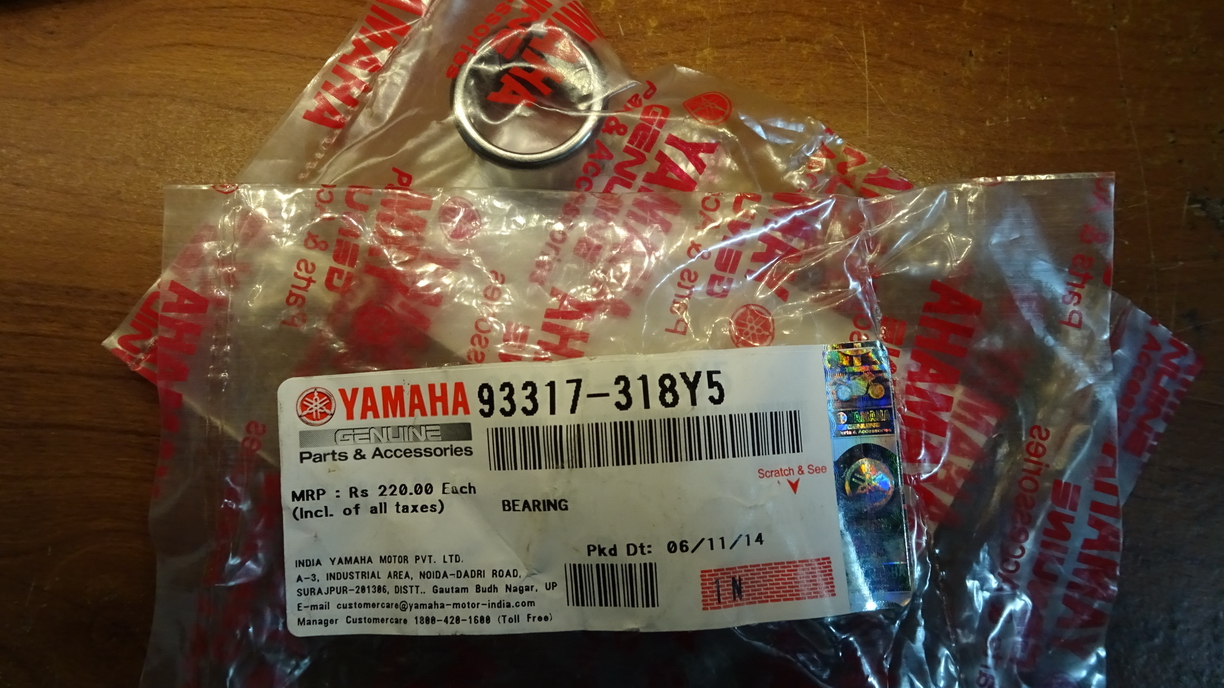

Swingarm Bearing - 93317318YS - ₹ 220.00 x 2
Used to cost only ₹69 a piece in 2012. Now almost 3 times costly.

2015-12-11 22-49-27.JPG

Steelbird Damper Clutch - ₹ 80.00
Genuine Yamaha was ₹ 40.00 in 2011 and ₹48.00 in 2013.

2015-12-11 22-50-54.JPG

Oil Filter - 21CE344000 - ₹ 40.00
It's Purolator make.

2015-12-11 22-51-28.JPG

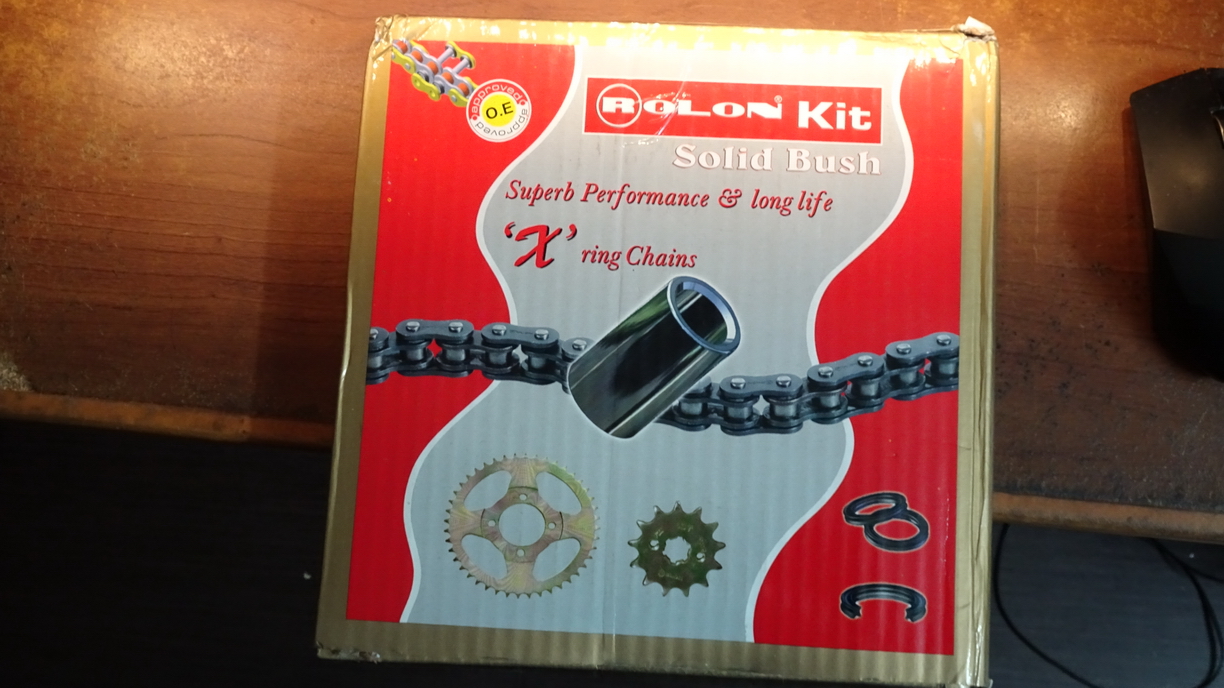

Rolon X Ring Chain Sprocket Kit - ₹ 1,265.00
Claims to have more life. Stock kit is Rolon O-Ring Kit.

2015-12-11 22-52-10.JPG

2015-12-11 22-52-41.JPG

2015-12-11 22-53-22.JPG

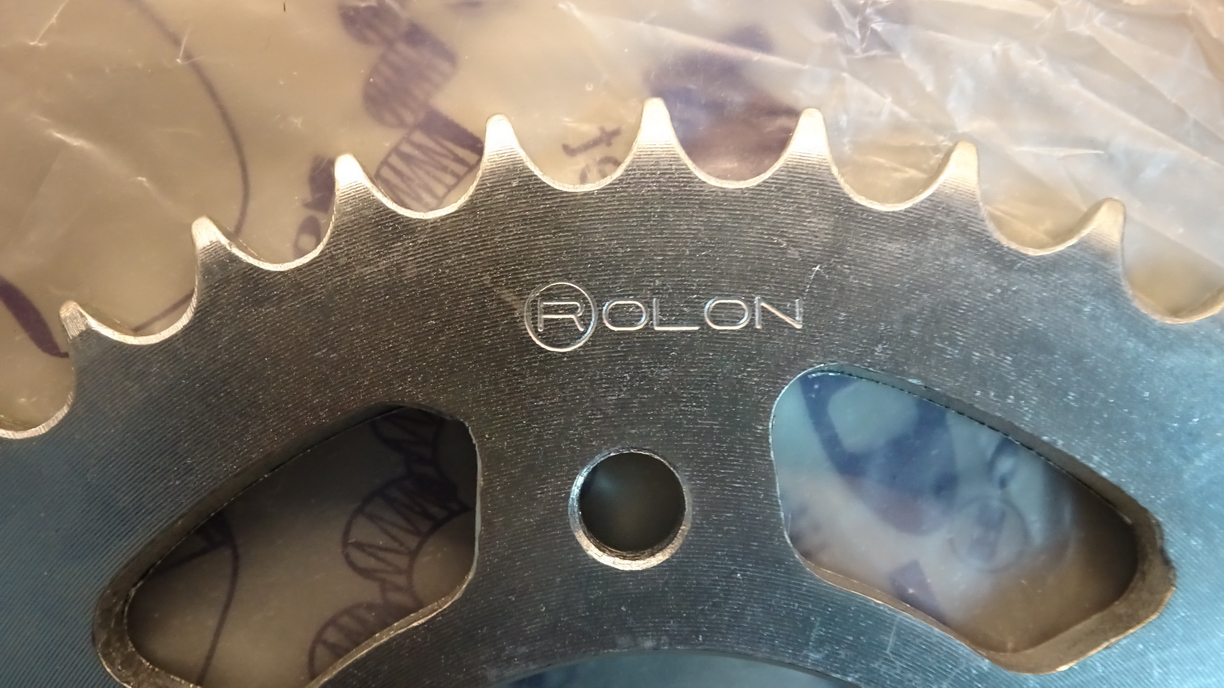

Rear sprocket looks same as stock plus the Rolon markings and specs.

2015-12-11 22-53-32.JPG

2015-12-11 22-54-25.JPG

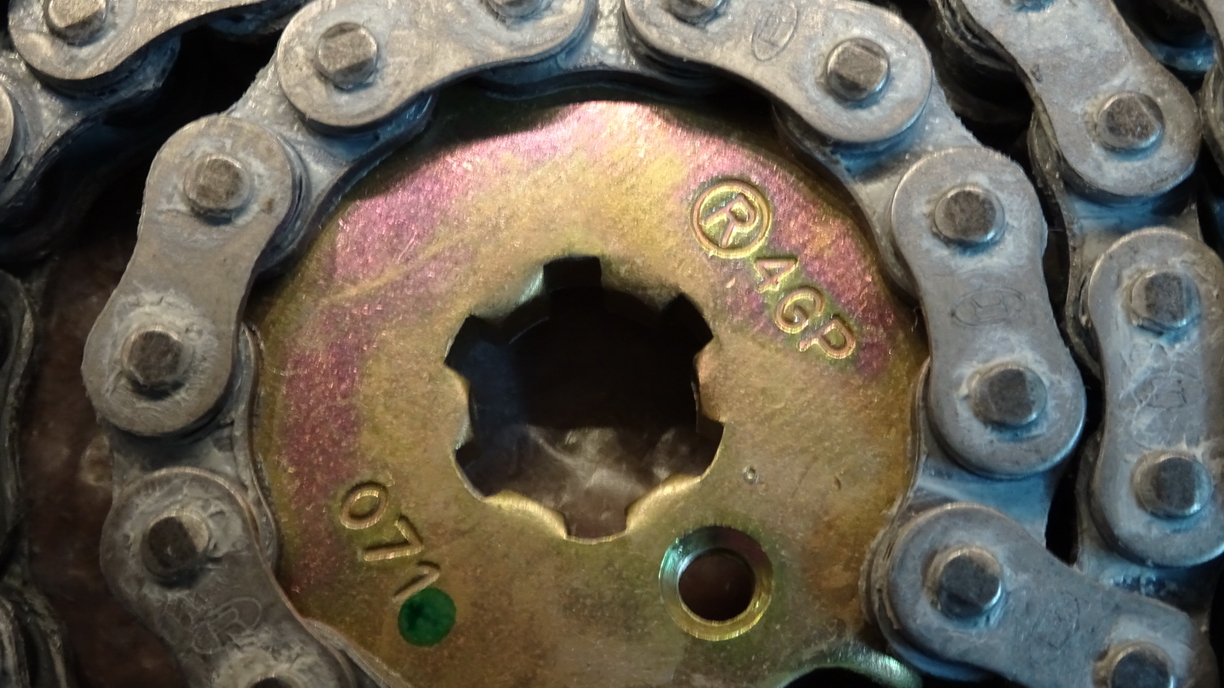

Drive Sprocket comes in different finish than stock.

2015-12-11 22-55-02.JPG

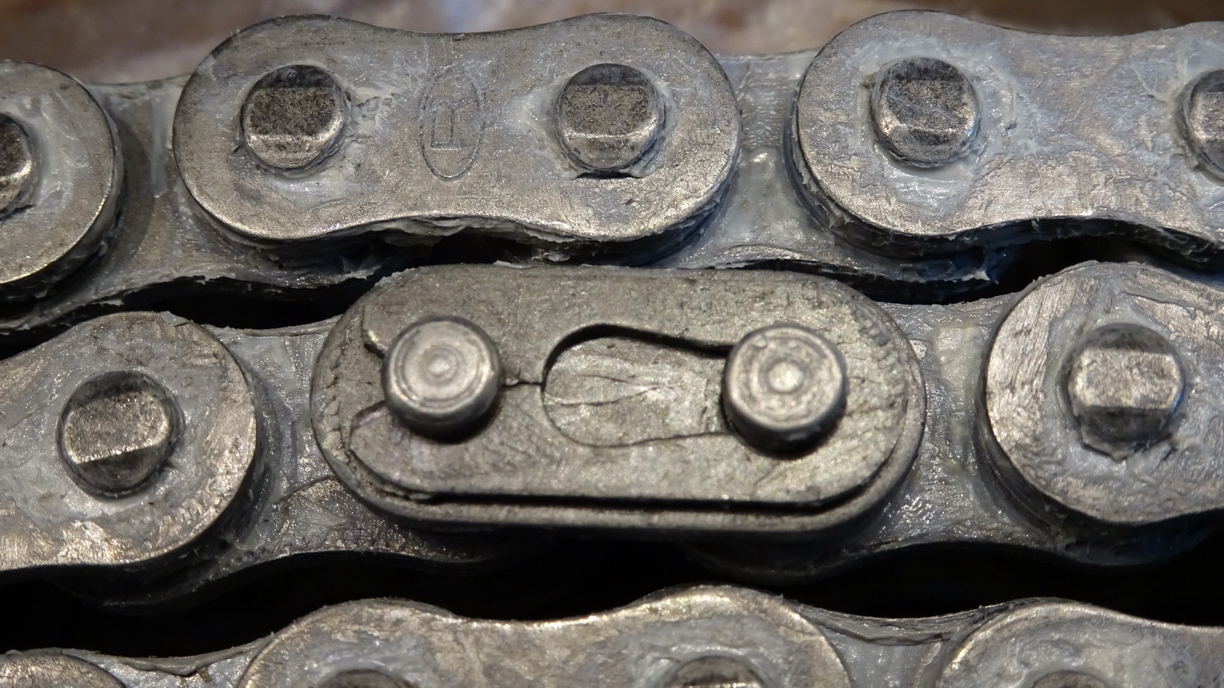

X-Ring chain got removable master link unlike the O-ring.

2015-12-11 22-55-22.JPG

Difference between O and X is the just the rubber gasket in each chain link. It seals grease between each link. X-ring has an X shaped cross section and the depression can hold more lube, that's what they claim.

2015-12-11 22-56-06.JPG

Thread Starter #171

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,624
Likes
3,638
Location
Trivandrum

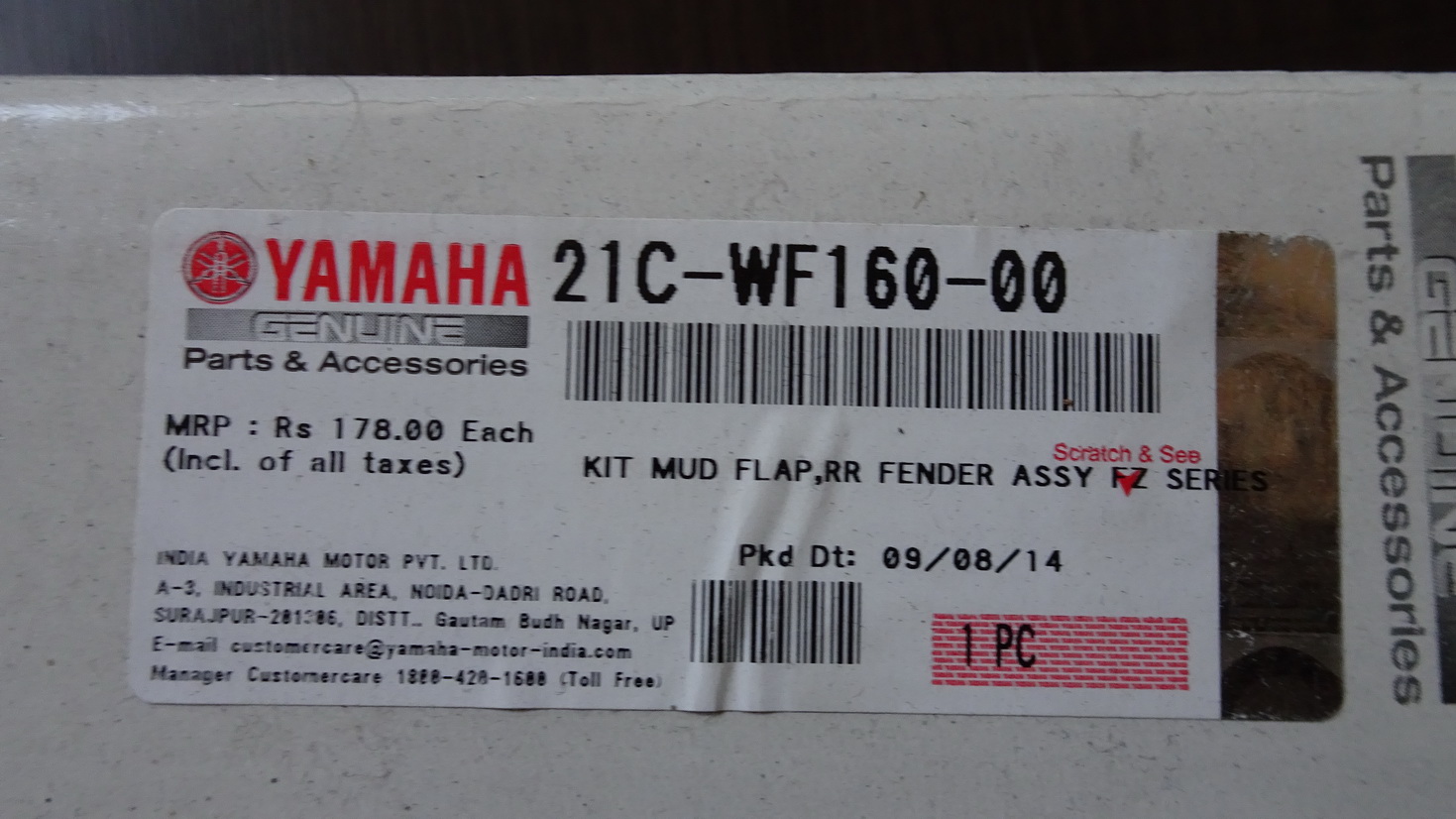

More parts. Mudflap/Fender Assembly Kit
21CWF16000 - ₹ 178.00

2016-01-05 08-19-09.JPG

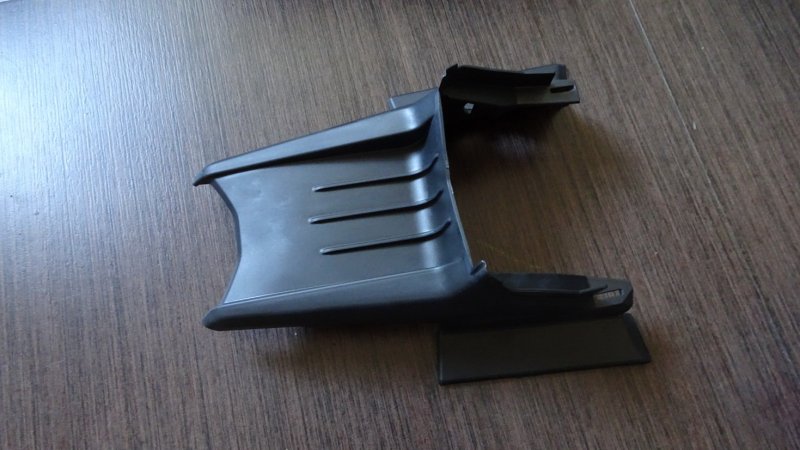

Wanted only this one. Cost was around 40 only, but had to buy full kit as the single piece was out of stock.

2016-01-05 08-19-20.JPG


Original first extension type. Didn't use though.

2016-01-05 08-19-38.JPG


Came with all sorts of required screws and template for drilling hole.

2016-01-05 08-21-08.JPG

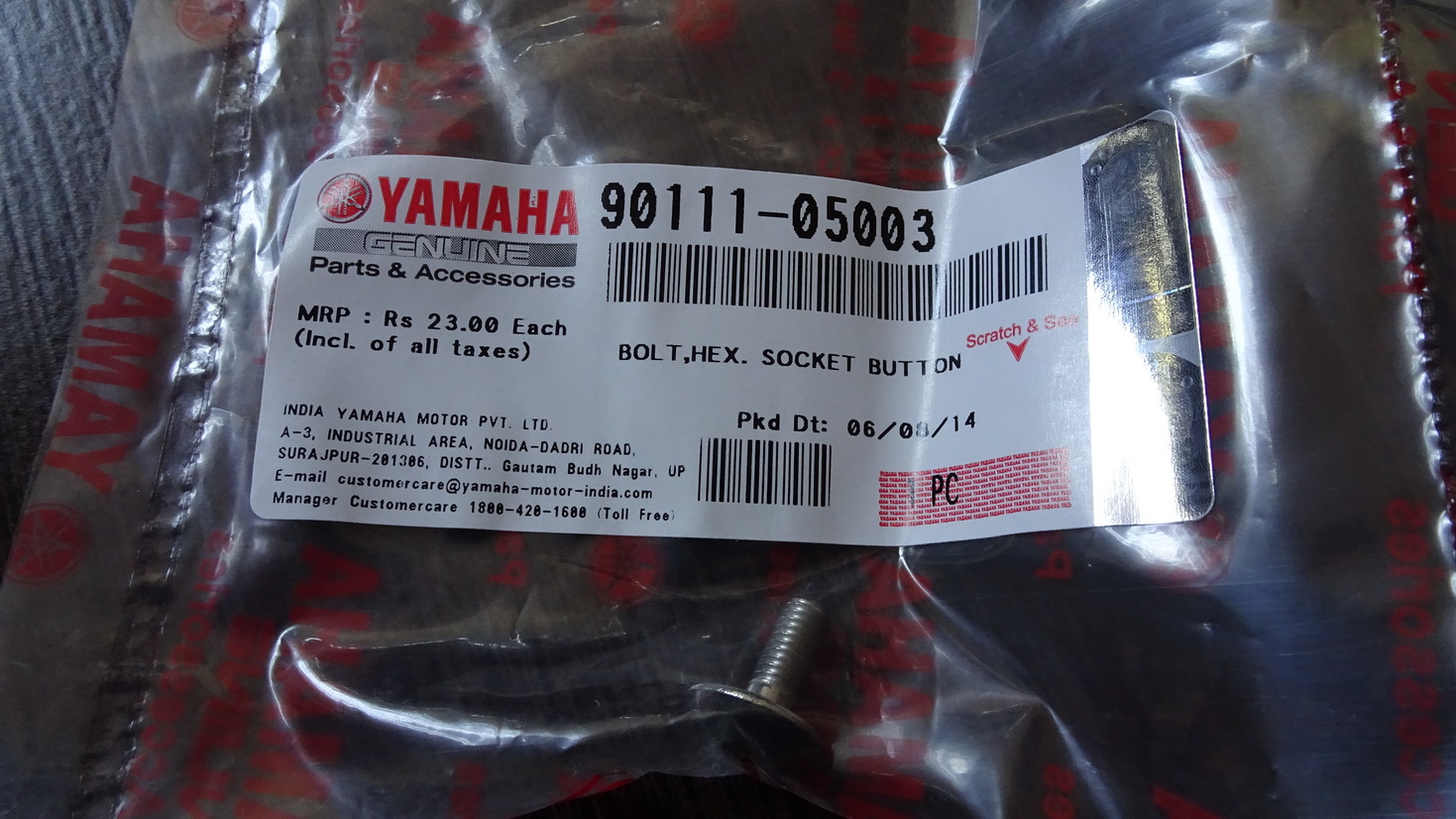

23 bucks for one chrome hex bolt. Same size Pulsar star screw only 10 bucks or so.

2016-01-05 08-21-20.JPG

-------------------------------------------------------------------------------------------------

Motul 5100. Tried and tested.

2016-01-12 07-50-41.JPG

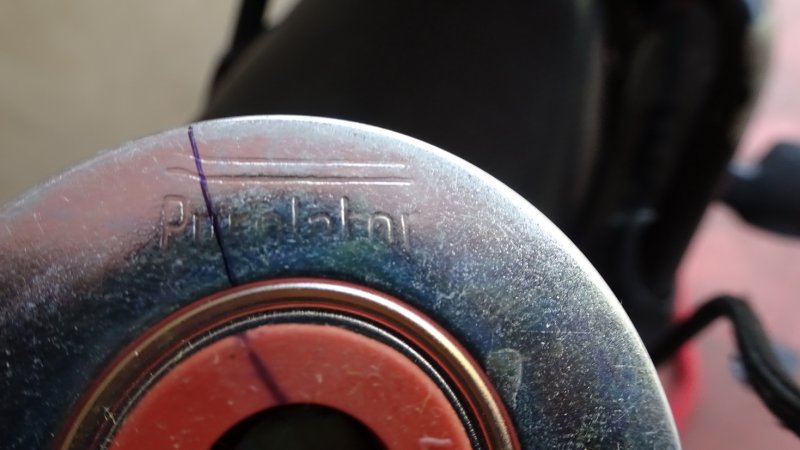

Oil Filter.

2016-01-12 07-51-23.JPG


This time Purolator make.

2016-01-12 07-51-43.JPG

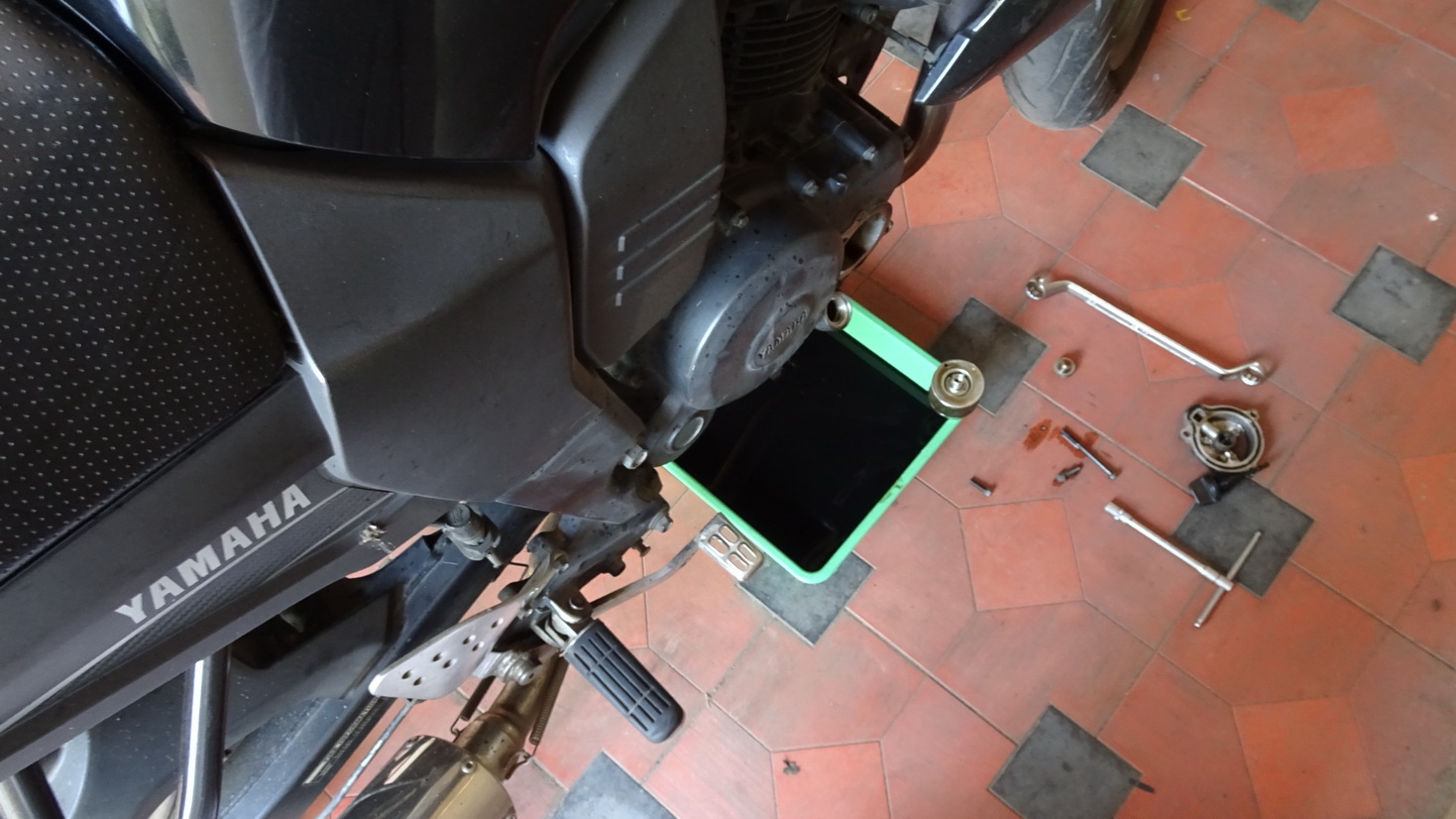

Oil Change. How 3.5k km old oil look like.

2016-01-12 07-48-41.JPG

and 6k km old filter.

2016-01-12 07-48-52.JPG

--------------------------------------------------------------------

Major work Swingarm overhaul, chain-sprocket change, exhaust swap, fender swap, some painting, in-depth cleaning, etc. in single go.

2016-02-07 12-38-25.jpg


Cleaned everything in diesel.

2016-02-07 13-06-22.jpg


Stock exhaust back.

2016-02-07 15-20-16.jpg


Knocked off old bearing.

2016-02-07 15-20-31.jpg

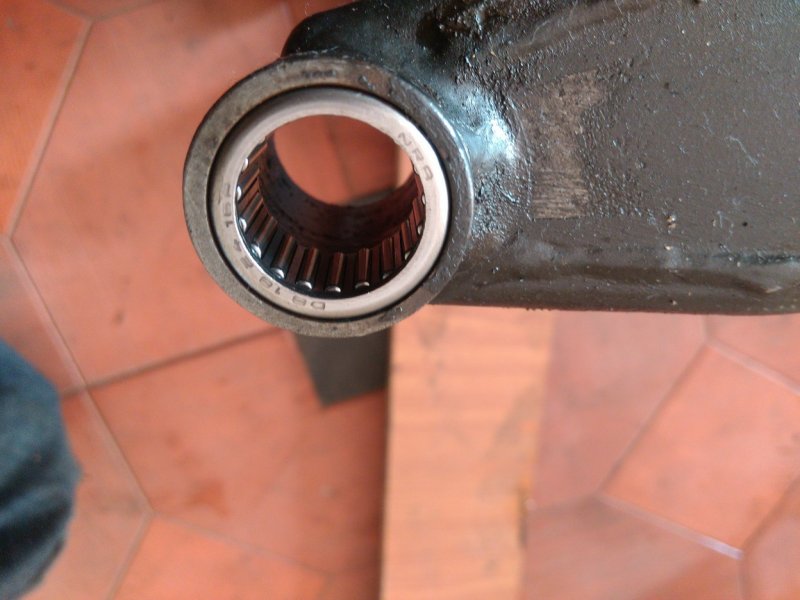

New bearing in.

2016-02-07 15-24-17.jpg


Swingarm bush. Old vs new.

2016-02-07 15-29-46.jpg

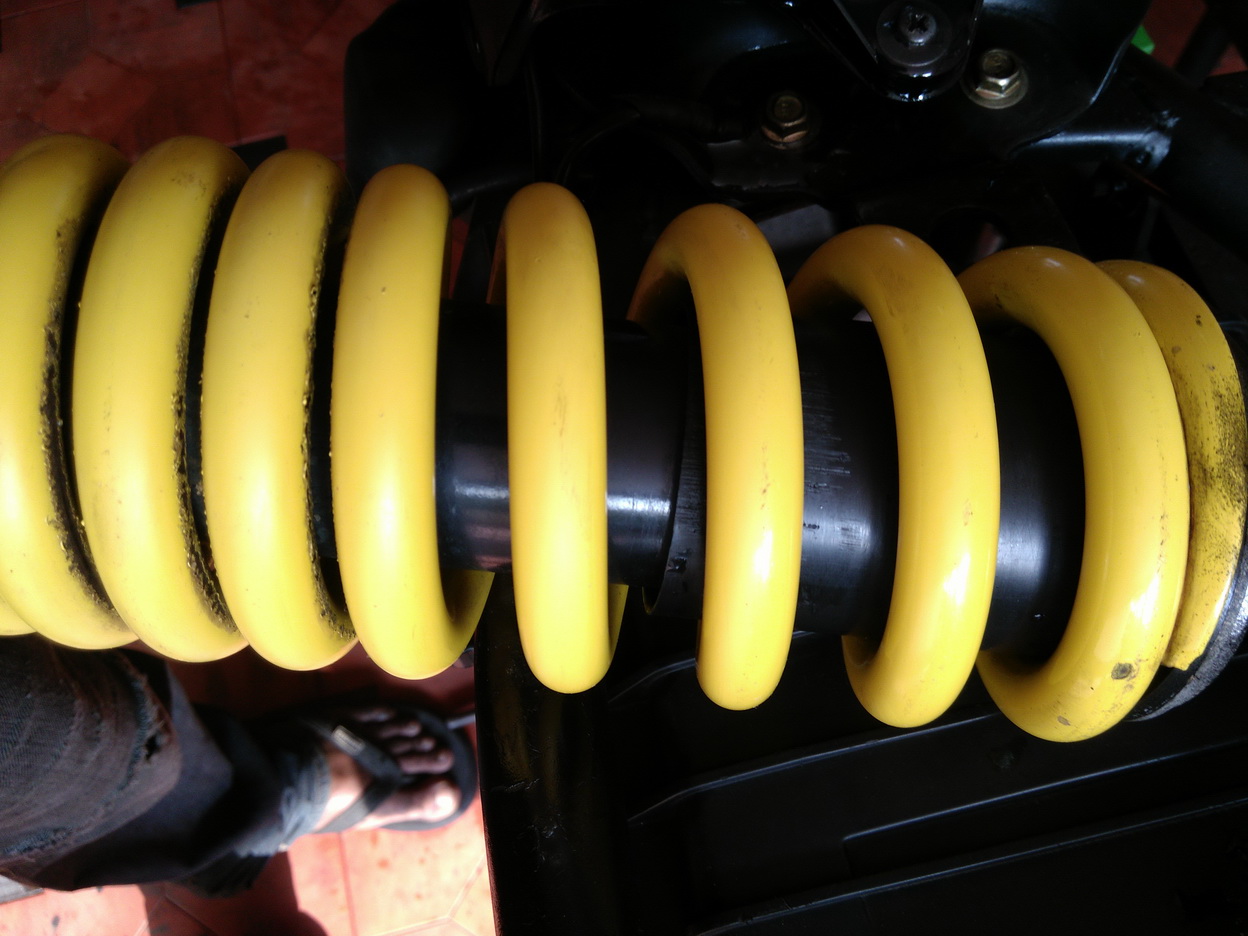

Monoshock. Cleaned. Spring rusted a bit, slight leak, but still works fine. Had a squeeky noise, but gone after adjusting tension.

2016-02-07 15-43-37.jpg


Painted the footpeg set. Primered. Last time missed primering, resulting in premature peeling.

2016-02-07 16-03-07.jpg


Matt black.

2016-02-07 17-07-35.jpg

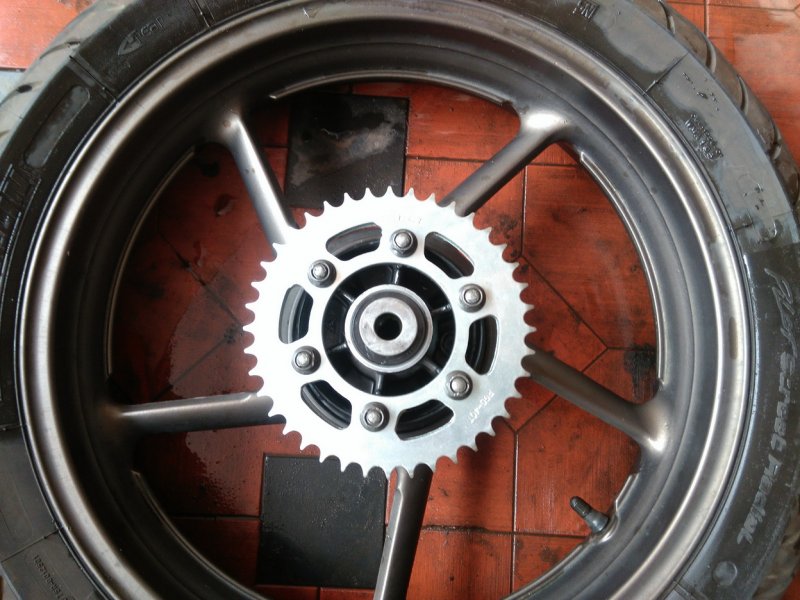

New sprocket

2016-02-07 16-59-54.jpg

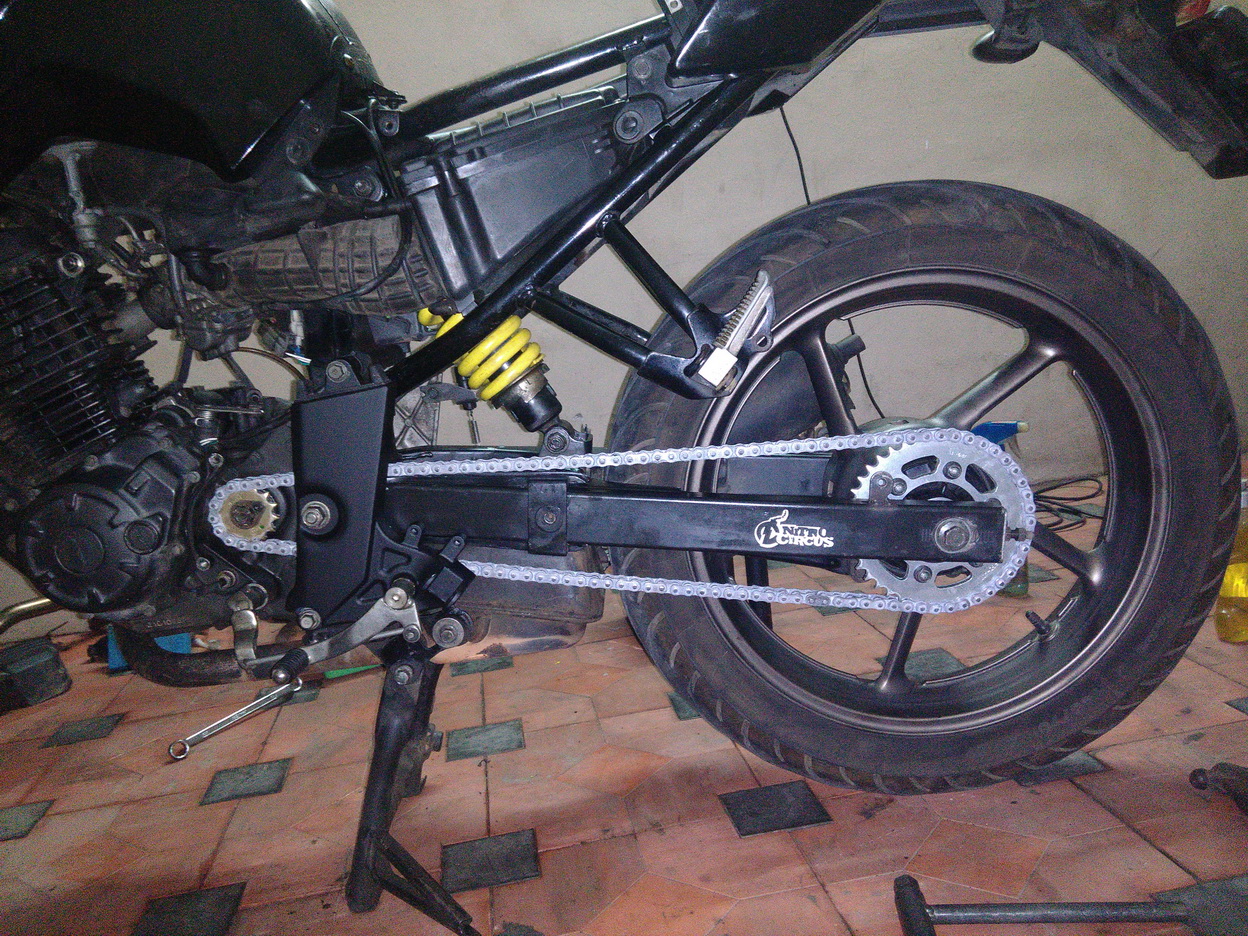

After install.

2016-02-07 19-20-22.jpg

------------------------------------------------

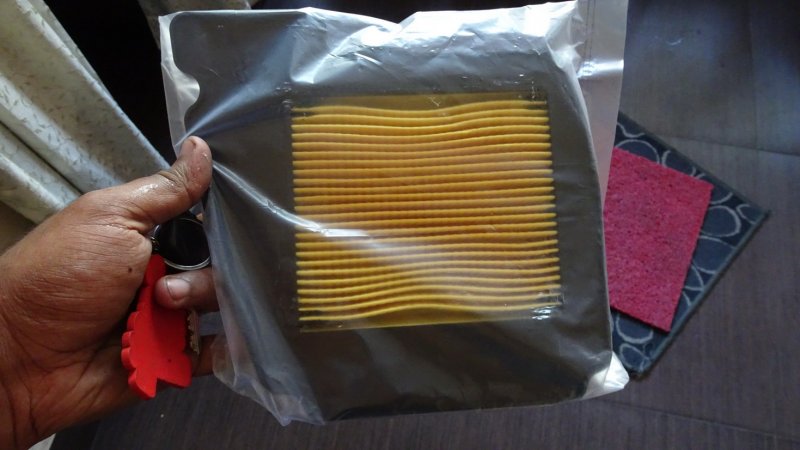

New airfilter. No carton cover, only polythene cover now.

2016-03-13 08-10-37.JPG


21C-E4450-00 ₹ 215.00

2016-03-13 08-10-47.JPG


Blowby oil in filter box.

2016-03-13 08-14-42.JPG


Old vs new.

2016-03-13 08-16-02.JPG

-------------------------------------------

Installed back center stand. New spring. 90506-35916 ₹ 30.00

It was hell of a job putting it back, loading the spring.

2016-03-26 08-42-20.jpg

----------------------------------------------

Front brake started making noise, caliper pin and clip damaged. Sound goes when removing, cleaning and refitting, but starts again in 2 days. Repaired by Royale Yamaha, but again it resurfaces. Finally, he did a thorough clean and refit and now gone. Charged 60 bucks for the same.

Joined
Feb 26, 2013
Messages
912
Likes
730
Location
Pune
hey deville,

need some info on what was the primer that you used and the matt black paint?

Mine has some paint peeled off from the air directors below the tank, can those be repainted as they are fibre parts.

and yeah I am planning to do the swingarm overhaul too this weekend. so may be will ping you if I am stuck somewhere.

Regards,
Kinshuk

Last edited:
Thread Starter #173

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,624
Likes
3,638
Location
Trivandrum
hey deville,

need some info on what was the primer that you used and the matt black paint?

Mine has some paint peeled off from the air directors below the tank, can those be repainted as they are fibre parts.

and yeah I am planning to do the swingarm overhaul too this weekend. so may be will ping you if I am stuck somewhere.

Regards,
Kinshuk
Nippon/Bosny aerosol primer and paint. Each costs around 200-250 a can.

Plastic can be repainted. Sometimes need plastic primer, which is just a solvent liquid, you have to apply it 3-4 hours before painting.

Hope I'll be free while that ping [;)]

Thread Starter #174

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,624
Likes
3,638
Location
Trivandrum

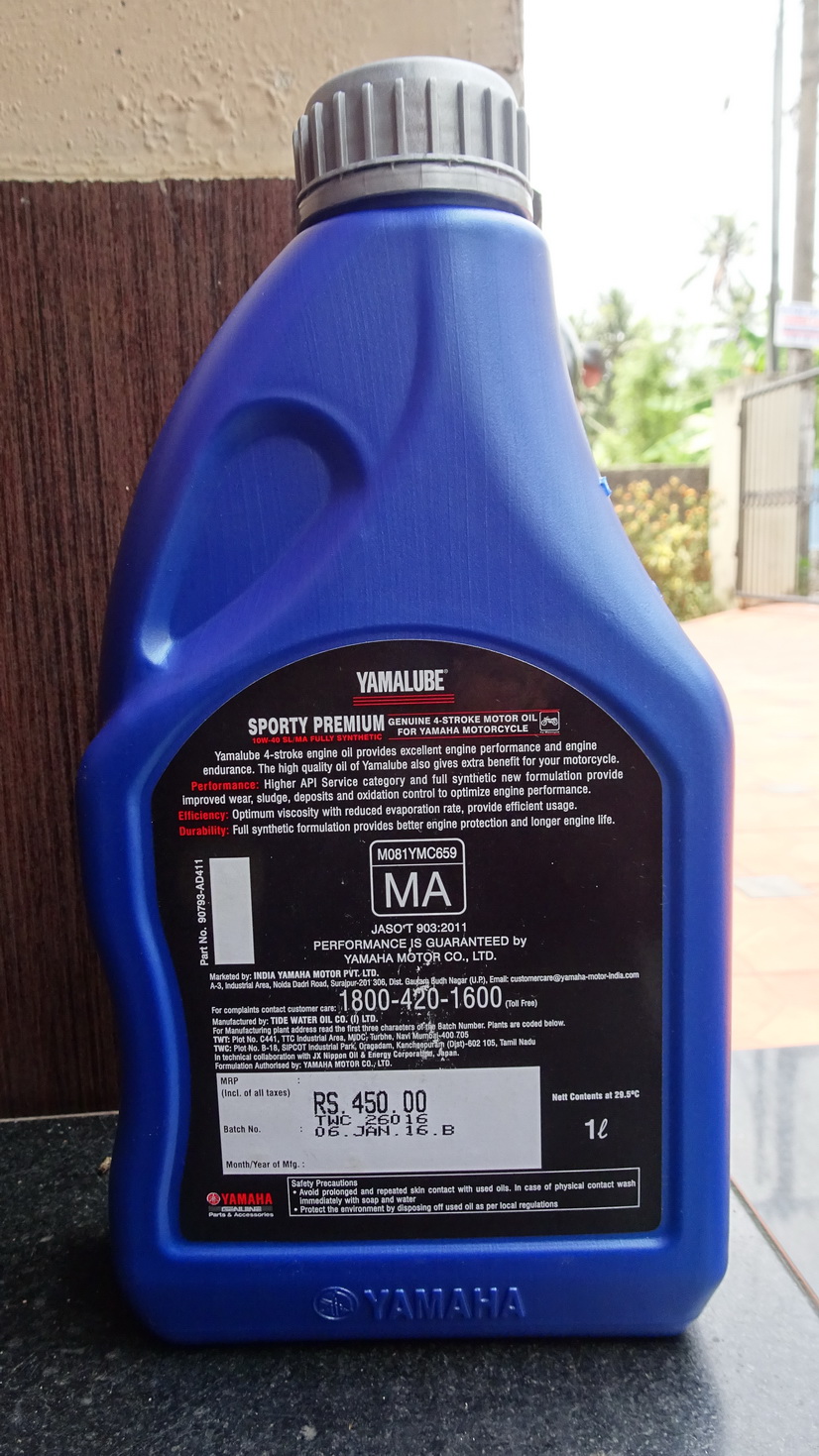

Yamalube Sporty Premium 10W40. Full Synthetic. Value for money at 450 bucks. Better than my fav Motul. Builds revs quickly and zero vibes. I have to look at tach to see I am at 6k rpm, otherwise would have been a bit rougher range after passing 4.5k rpm. Smooth shifts. Gotta see how long it will last. Even a change at 3k km is nearly 100 bucks cheaper than Motul 5100 SS (My fav). Made specifically for R3 and R15.

2016-04-10 11-55-09.JPG
2016-04-10 11-55-21.JPG

(R15 grade used to be 15W50 and all of a sudden then switched to 10w40.

Same with FZ. FZ get a new mineral oil from Yamalube (Optima Prime), which is also 10W40. FZ originally came with 20W40, which they later changed to 20W50 and now 10W40

Joined
May 3, 2016
Messages
27
Likes
0
Location
Kottayam
Yamalube Sporty Premium 10W40. Full Synthetic. Value for money at 450 bucks. Better than my fav Motul. Builds revs quickly and zero vibes. I have to look at tach to see I am at 6k rpm, otherwise would have been a bit rougher range after passing 4.5k rpm. Smooth shifts. Gotta see how long it will last. Even a change at 3k km is nearly 100 bucks cheaper than Motul 5100 SS (My fav). Made specifically for R3 and R15.

View attachment 199798
View attachment 199799

(R15 grade used to be 15W50 and all of a sudden then switched to 10w40.

Same with FZ. FZ get a new mineral oil from Yamalube (Optima Prime), which is also 10W40. FZ originally came with 20W40, which they later changed to 20W50 and now 10W40
Hello deville_56,

I was using mineral oil till these days and my odo is 48000Kms. Now am planning to use Sporty Premium Yamalube. Is there anything i care about suddenly changing from mineral oil to Synthetic.??? Please share your feedback on the Sporty Premium oil ..

regards
Ajit

Thread Starter #176

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,624
Likes
3,638
Location
Trivandrum
Hello deville_56,

I was using mineral oil till these days and my odo is 48000Kms. Now am planning to use Sporty Premium Yamalube. Is there anything i care about suddenly changing from mineral oil to Synthetic.??? Please share your feedback on the Sporty Premium oil ..

regards
Ajit
Just change oil filter, nothing else.

So far, it's better than my beloved Motul 5100. Still too early to comment, did only some 750 km on it so far.

Joined
May 3, 2016
Messages
27
Likes
0
Location
Kottayam
Nippon/Bosny aerosol primer and paint. Each costs around 200-250 a can.

Plastic can be repainted. Sometimes need plastic primer, which is just a solvent liquid, you have to apply it 3-4 hours before painting.

Hope I'll be free while that ping [;)]
How was your experience with Motul 5100?? Is it better than Castrol One semi synthetic ???

Thread Starter #179

deville_56

Honoured Member
Joined
Sep 11, 2009
Messages
2,624
Likes
3,638
Location
Trivandrum
How was your experience with Motul 5100?? Is it better than Castrol One semi synthetic ???
5100 is a great oil. I used it major part. Performance is good and can squeeze out 3.5k km with ease.

Castrol one was crap. It made my smooth and silent engine harsh and lots of vibes. Only oil I changed prematurely.

Joined
Apr 26, 2016
Messages
9
Likes
14
Location
Bangalore/Thrissur
Hey deville, congrats for keeping your ride top notch for 6 years! I'm not much of a DIY-er, but your thread inspires lazy bums like me too [:)].

I too own an FZ for the past 3 years. I plan for some minor modifications or upgrades now as I finally got some free time. It would be great if you can give some suggestions regarding that.

1. Tyres - My stock tyres are running at 24k kms. Rear tyre badly needs a replacement as it is highly unstable in wet surfaces now. Which one do you suggest? I think the front tyres will be good enough for a couple of thousand kms more.

2. Mirrors - Is that P220 NS mirrors in yours a direct fit on FZ?

I'm also thinking about blackening the green parts(mine is an FZ-S) to get the FZ look. Got to refresh the looks a bit as it's been a while.
