Hi All,

I have started a DIY & I need all your valuable inputs here.
This is the Central Locking kit i bought from Ebay costing around Rs.699/- (after discount). I need advice on where exactly to fit the actuators. I dont want to drill too many holes (anywhere) in the car & since my car has already seen 3Owners before me, I find screw positions already existing in the doors (interiors). Pics will say the rest.

Thanks in advance.



The contents of the box.


This is how all the parts are fit. (the black thing has a motor inside which does the push & pull job, its called actuator)

actuator dummy fit.JPG

another angle of actuator.JPG

Existing screw holes in the door (may be previous owner had Central locking)
existing screw points.JPG

I tried mounting the actuator with that guide rail thing on these two holes & this is how it fits.
mounting on old points.JPG

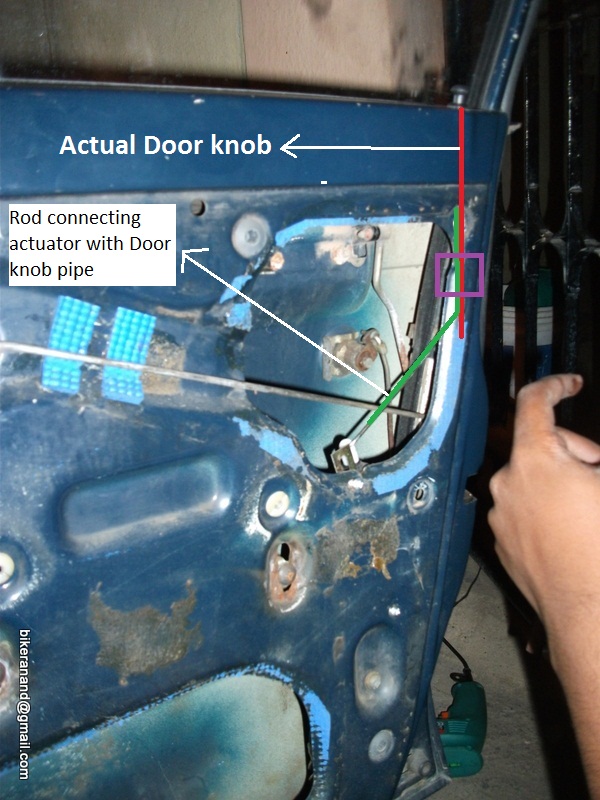

This is how it works,
CLearer post.JPG

This is a pic of my rear right door, where do I fit the actuator here?
Rear door pic.JPG

I want to fix these asap. :help:

Thanks in advance


Varun560061

Honoured Member
Joined
May 1, 2011
Messages
3,588
Likes
724
Location
Bangalore
Hi SS80..

The position of the actuator / motor is incorrect, it should be straight, you can use those metal strips provided to mount it properly.

For the rear doors directly fit them to the know connecting rod.

I would suggest you to drill new holes so that would perfectly fit in place.

Joined
May 10, 2012
Messages
26
Likes
5
Location
Bangalore
Hello ss80
As per the pictures suggest you have installed the actuators vertically rather it should have been horizontal. will post the pictures in my car when i reach the home.[:)]

Last edited by a moderator:
Thread Starter #5
Joined
Dec 13, 2011
Messages
1,713
Likes
1,074
Location
Bangalore
I searched in the internet & found that it can be mounted either ways depending on the space available. So I went ahead with the Vertical installation on two doors. Ran short of screws (the Ebay kit supplies less screws than you actually need) so had to stop today.

Here are pictures of the work so far.
Front doors.JPG


rear 1 (1).JPG

rear 1 (2).JPG

Thread Starter #10
Joined
Dec 13, 2011
Messages
1,713
Likes
1,074
Location
Bangalore
Hello ss80
As per the pictures suggest you have installed the actuators vertically rather it should have been horizontal. will post the pictures in my car when i reach the home.[:)]
Here are some pic's for you. I did an DIY in my friends car (800).
Thanks guys, got the right idea now & installed the Central locking today. The trick is in getting the wires inside the chassy & using the exact holes to route the wires. Here are few pictures of revised Actuator mounting.

rear door 1.JPG

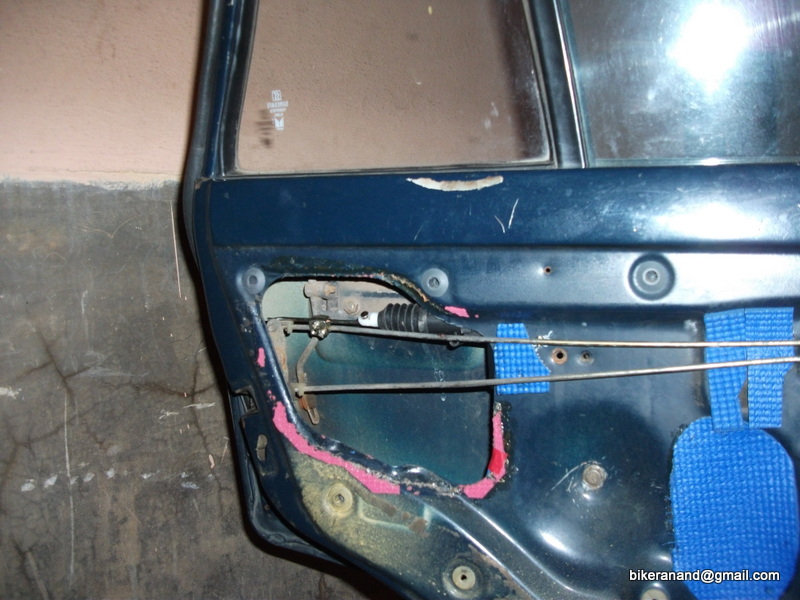

rear door 2.JPG

Most of the wires are inside the chassy (neatly tucked in)
enetring chassy.JPG

bunch of wires inside.JPG
Maximum Wires are inside the driver door (later I tied them to the inside wall using a plastic knot.

Joined
Feb 28, 2013
Messages
30
Likes
1
Location
Bangalore
Hi SS80,

This unit is a real economic one. just for Rs 699. As suggested by Varun, I checked
Autocop, but they quoted around 3K.
BTW How is it working.
What type of model is compatible for M800.
I need a basic model for my M800, do you think its still available?

Regards,
Sri
