Is time for ikon to blow up the roads.

the set up will be fixed tomorrow , the mdf are being made up . No fibre glass enclosure as the car need to sing in 2 days

Alpine cda 117 - head unit
rock ford fosgate 500 mono approx 13300/-
Rf 300 - 4 channel approx 9800/-
front comps , hertz energy series. approx 8900/-
rear hertz coax , both 6 incher. approx 5300/-

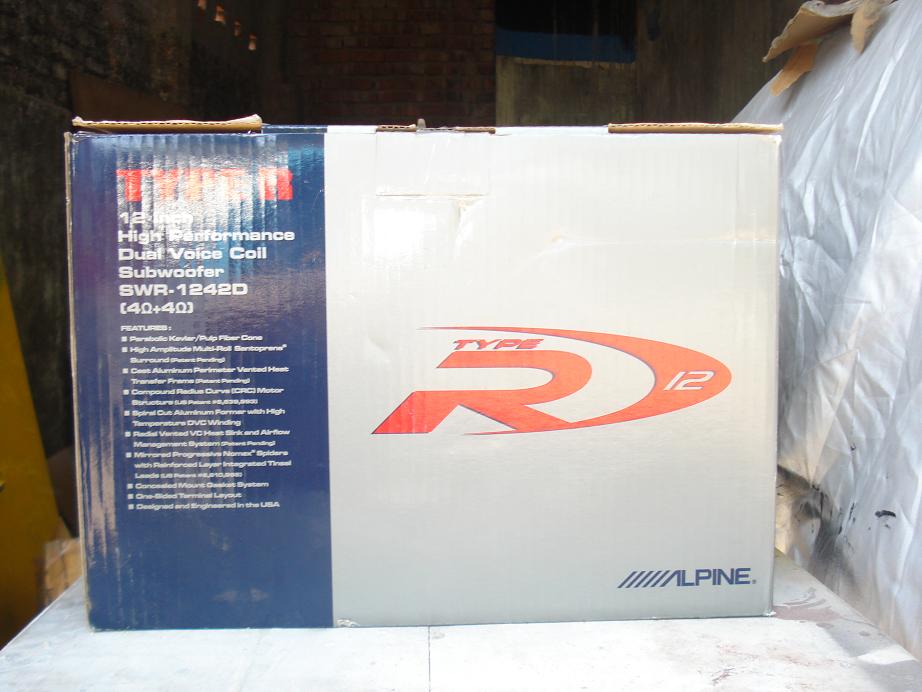

sub , the bomb! type R 12 incher. approx 12500/-

wiring , connection audison - approx 7000/-

holy satan has been saving for ages to buy them!!!

ok the pictures ,


Attachments

Thread Starter #4
Joined
Sep 12, 2009
Messages
4,036
Likes
248
Location
Pondicherry
Subwoofer box spec for type R 1242 model
this is for ported type.

trying the ported type for the first time.

1.75 cubic ft[evil]

All the measurement are inner one. not inclusive of mdf thickness


Attachments

Last edited:
Thread Starter #5
Joined
Sep 12, 2009
Messages
4,036
Likes
248
Location
Pondicherry
Morning did the wiring ,
just the rca and power cables

i took a whole 2 hour just to do this!! hehe actually worked just 1hr , removing seats half an hr ,
wiring half an hour.

yet to get the mdf from carpenter.

that is all the update for now guys!
cheers!


Akash

Core Team
Joined
Sep 22, 2009
Messages
6,346
Likes
451
Location
NYC
ilango[speed thirst];67281 said:
Morning did the wiring ,
just the rca and power cables
i took a whole 2 hour just to do this!! hehe actually worked just 1hr , removing seats half an hr ,
wiring half an hour.
yet to get the mdf from carpenter.
that is all the update for now guys!
cheers!
Another good work from Ilango. I am sure the setup will be flawless, but looks like you are keeping some suspense for Holysatan which is visible in the post below.

Yippee[clap]
where are you?[confused]

Thread Starter #7
Joined
Sep 12, 2009
Messages
4,036
Likes
248
Location
Pondicherry
Yep holysatan is in chennai!

yet to get mdf boxes from carpenter.
finished the wiring today.

rca and speakers on right side of the car ,
power cables on left of the car.

Thread Starter #15
Joined
Sep 12, 2009
Messages
4,036
Likes
248
Location
Pondicherry
pictures loaded here
-----------Next Post-----------
:) ,pictures of the installation
-----------Next Post-----------
the rear speakers , sadly it didnt have any grill


Attachments

Last edited:
