DIY- Repairing MM540 Fibreglass Dashboard


Thread Starter #1
Joined
Jun 20, 2011
Messages
185
Likes
97
Location
Bangalore/Thrissur
Hi all, this is an ongoing DIY for my friend's MM540.


We all know that getting parts for old vehicles is very difficult and most of times we end up in gujris or chor bazaars.
Like that we bought the dashboard for this beast.

It was in decent condition except some minor cracks and broken areas of screw holes.
With my assurance that it's repairable, he bought it. I was more happier that i got a chance to do another DIY! [;)]

So here it is!

Man, Materials and Machineries used:

Manpower - 2

Machinery - one dremel with cylindrical grinding bit and one grinder with sand disk.

Materials -

Fibreglass materials


  • Resin (1 Ltr) - Rs.145
  • Glass mat (0.4 Kg) - Rs.46
  • Accelerator (100 ml)- Rs.35
  • Catalyst/Hardener (100 ml)- Rs.35
Masking tape, paper, card boards, knife, scissors, gloves, masks, toothbrush etc

The repairing is like, grind off the broken or brittle areas and patch them with fibreglass. Let the photos speak now!

The dashboard condition.


Yeah that's me! You guys can wish me! [:D]

Last edited:
Joined
Nov 19, 2011
Messages
3,309
Likes
696
Location
Sydney / Mumbai
Re: DIY- Repairing the MM-540 fibreglass dashboard

Very excited to see the final outcome. Please post rest of pics as well.
All the best. :-)


Varun560061

Honoured Member
Joined
May 1, 2011
Messages
3,588
Likes
724
Location
Bangalore
Re: DIY- Repairing the MM-540 fibreglass dashboard

Hi sreejeshtpl, you are back with a SURPRISE..
Nice DIY.. please update.

BTW the jeep is looking cool, is it B'lore ?

Joined
Dec 28, 2010
Messages
985
Likes
62
Location
Bangalore
Re: DIY- Repairing the MM-540 fibreglass dashboard

Hey good to see you back buddy! Good luck! Eagerly waiting for more updates and pics [thumbsup]


350Z

Core Team
Joined
Aug 10, 2009
Messages
18,399
Likes
6,144
Location
New Delhi
Another awesome upcoming DIY. Keep it up. Waiting for more details and images of the restoration process. :smile:

Drive Safe,
350Z

Joined
Dec 13, 2011
Messages
1,713
Likes
1,074
Location
Bangalore
I am stuck to this thread, you are an expert in precision plastics & fibre stuff. Eagerly waiting for further progress.

Thread Starter #10
Joined
Jun 20, 2011
Messages
185
Likes
97
Location
Bangalore/Thrissur
Fibreglassing process begins!!

The glass mat can be separated as layers and then make into pieces for easy application. The fibreglassing process was done at night so considering the low temperature I used the ratio like, for 100ml resin, 4ml of hardener and 4ml of accelerator. It will be good if you mix and use them in small quantities. Paper cups are used for mixing the resin.




If the gloves become sticky, pour some talcum powder on them.

I used an old toothbrush to apply the resin.

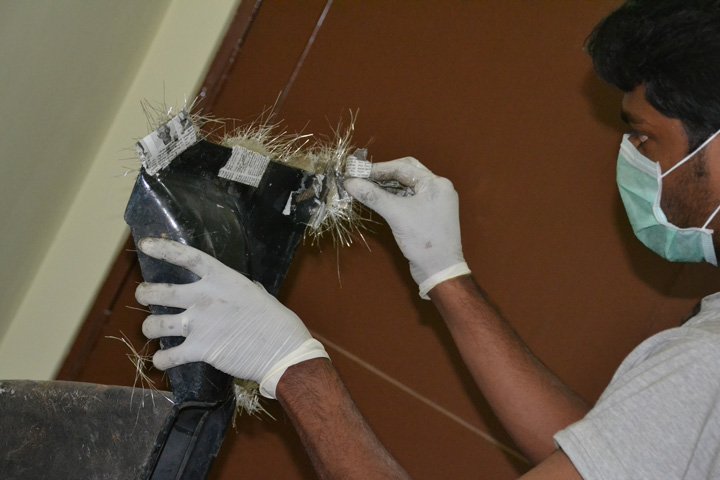

Removing the paper supports after the resin cured.

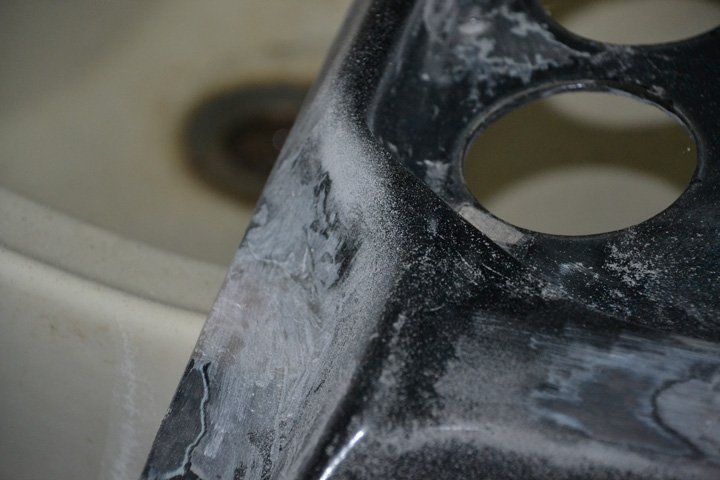

The grinding process.
