Putting down the details on performing a DIY on cleaning the MAF Sensor on my Swift ZDi.

Q: What is an MAF?
A: It is a Mass Air Flow Sensor.

Q: Where is it located?
A: It is located between the Air filter box and intake manifold.

Q: What is it's function?
A: It measures the density of the air and flow of air to the intake manifold.

Q: Will there be any difference post cleaning? Will the pick up or FE increase?
A: I'd say no! May be there would be a finer change but nothing eye opening. As the MAF on my car was good with no issues in drivability or FE.


Source: Google Images.

Things required to perform the DIY (Below Picture):
  1. Zip Lock bags - 3 no's
  2. Flat head No.: 7mm
  3. Philips Head No.: 2
  4. Flank Socket: 10mm
  5. Extension Bar
  6. Ratchet Handle
  7. IPA - 100% (preferably as it dries up faster) --- 1 Litre is enough IMO.

1. Tools.jpg

NOTE: Though there was nothing wrong with my car for me to perform this DIY. It was just to see how is the condition of the sensor after 1.2 years and 39,000 kms on the odometer. No low performance or smoke or low FE being experienced. Now the car is 2 years old and has 66,000 kms on its odometer. I'll be repeating this after the car touches 70,000 kms which is another 40 days max.

Thread Starter #2
Joined
Dec 29, 2015
Messages
81
Likes
110
Location
Hyderabad
Procedure to perform the Cleaning of the MAF is as follows in 2 broad steps:
  1. Removing MAF for cleaning,
  2. Cleaning the MAF.
______________________________________________________________

1) Removing the MAF for Cleaning:
  • Clean the area around the air filter box, MAF and the Air intake pipe (rubber hose);
  • Disconnect the battery terminals
  • Remove the electric coupler;
  • Using the Philips head 2, open the screws holding the air filter box;
  • Once the air filter box is opened, use the flat head screw - 7mm to loosen the clamp;
  • With the clamp now loose, Detach the rubber air intake pipe;
  • Using the Flank socket 10mm, unscrew the two bolts holding the MAF sensor. MAF is now free and ready for cleaning.

-------------------------------------------------------------------------------------

2) Cleaning the MAF:
  • Once the MAF is removed, first thing to do is - wipe it gently with a damp cloth to remove the dirt/dust before cleaning it with IPA.
  • Put the MAF in the Zip-lock pouch, pour in the IPA.
  • Lock the pouch and shake it gently to loosen the dirt trapped by the mesh;
  • Let it rest for 10-15 mins. Remove the sensor from the pouch and collect the IPA used first time, add some fresh IPA and let it sit for 2-3 minutes;
  • Repeat the above step depending on how dirty the sensor is as it will evident after the first bath
  • Remove the sensor from the IPA bath and let it dry completely.

Last but not the least:
Did check the ECU for any error codes or any such indication but good that nothing came up.
______________________________________________________________

Now I'll let the pictures do the talking:

Air Filter box + MAF
2. Filter + MAF.jpg

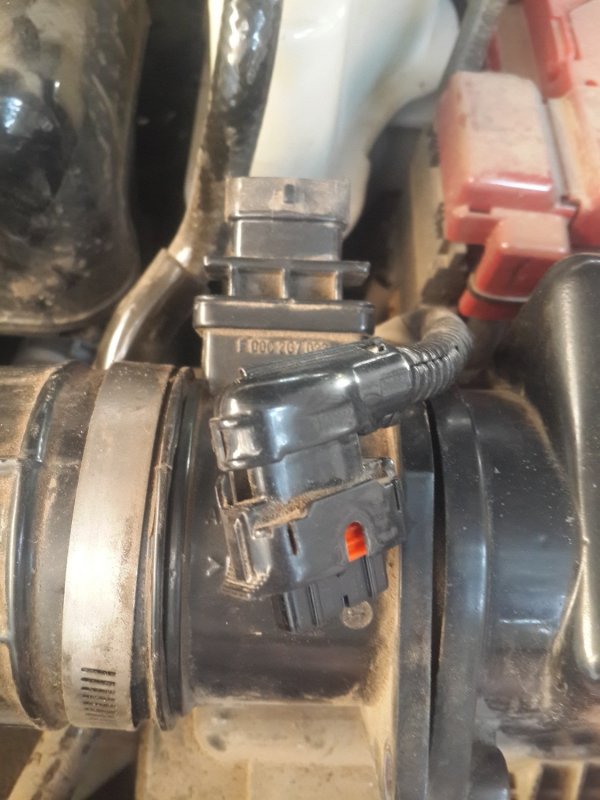

MAF Sensor
3. MAF.jpg

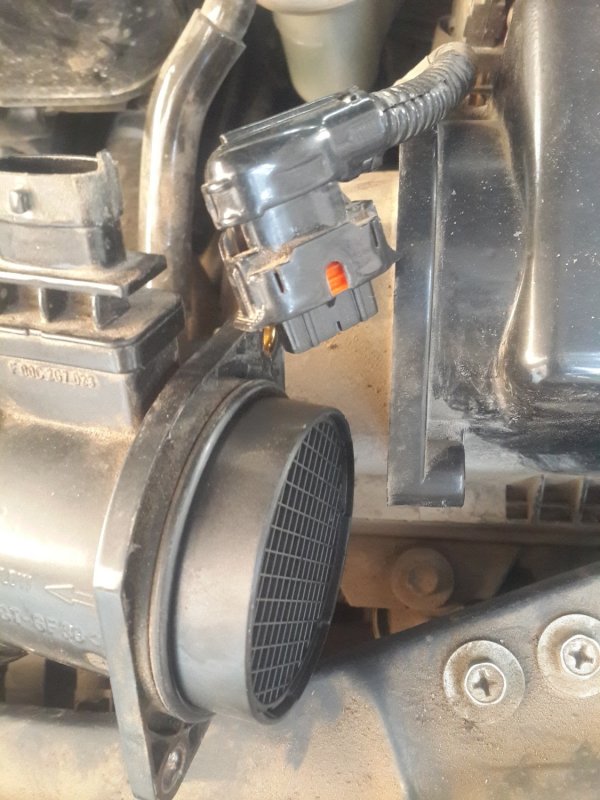

Coupler Removed
3a. Coupler removed.jpg

Air Filter box base
4. Filter box.jpg

Air Intake Pipe
4a. Intake pipe.jpg

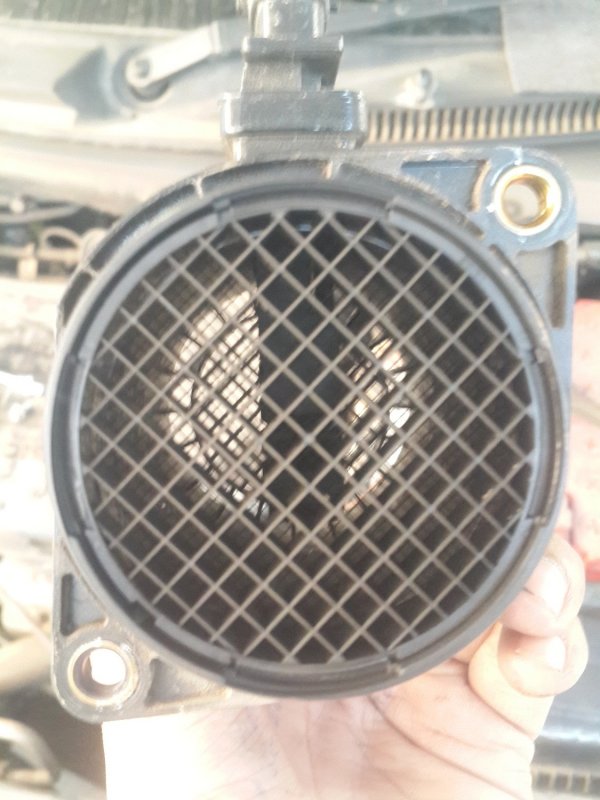

Intake manifold side mesh
5. Engine Side Mesh.jpg

Air filter outlet side
6. air filter intake side mesh.jpg

Electrical connection in centre
7. Elec in centre.jpg

MAF - Free for cleaning
8. MAF - for cleaning.jpg

MAF dipped & soaked in IPA
9. MAF chilling in IPA.jpg

First Bath residue
10. First bath.jpg

IPA Collected after cleaning
11. IPA after cleaning.jpg

Details from ECU - Before & After cleaning the MAF
Details from ECU.jpg

Checked the ECU for any Error Codes, If stored (DTC's)

Hope this helps for all who are thinking of attempting to clean this as the ASC's never touch this unless a problem is reported by the customer.

Thanks for reading guys. :)

Joined
Jan 27, 2015
Messages
45
Likes
18
Location
HYDERABAD
Good info Anurag ,
in first service the Mass guy did a air filter cleaning by blowing air into it,is there any way to clean it with liquid?
and good to see you in TAI
I follow your thread on swift zdi ,literally after reading your thread I made my decision on my swift dzire vdi
AND my car clocked 7k on odo and mid shows a constant 18.4 kmpl,at first I thought this was due to my driving style but then no matter how I drive
it shows the same.
Recently did a trip of 200 kms driving around 70-80kmph and once the mid goes up to 18.6 and settled at 18.5,is this normal??
and car is in 80% highway 20% city driving

Thread Starter #5
Joined
Dec 29, 2015
Messages
81
Likes
110
Location
Hyderabad
Good info Anurag ,
in first service the Mass guy did a air filter cleaning by blowing air into it,is there any way to clean it with liquid?

AND my car clocked 7k on odo and mid shows a constant 18.4 kmpl,at first I thought this was due to my driving style but then no matter how I drive
it shows the same.

Recently did a trip of 200 kms driving around 70-80kmph and once the mid goes up to 18.6 and settled at 18.5,is this normal??
I change the air filter every 10K kms which is every 3 months for my driving. I don't blue pressurized air into any other filters. I tap it against the ground to loosen out the dirt then use a vacuum cleaner to pull out anything that is stuck.

NO usage of liquids whatsoever. NEVER. These filters are all dry ones that only need to be replaced once dirty. No washing or heavy cleaning to be done.

Regarding the FE display in the MID, make it a habit to reset the average FE after every refill. It'll give you the exact reading and keep you updated with real time FE. I am getting between 20.4 to 21 kmpl. My usage of 55% city and 45% highway with 110 kms a day at minimum.

Joined
Aug 15, 2014
Messages
1,420
Likes
530
Location
Mumbai
While i dont intend to clean my MAF, i would really like to own that torque settable rachet wrench. Where did you get it from & at what cost?

Ameyam

Joined
Sep 15, 2016
Messages
10
Likes
0
Location
Gurgaon
Procedure to perform the Cleaning of the MAF is as follows in 2 broad steps:
  1. Removing MAF for cleaning,
  2. Cleaning the MAF.
______________________________________________________________

1) Removing the MAF for Cleaning:
  • Clean the area around the air filter box, MAF and the Air intake pipe (rubber hose);
  • Disconnect the battery terminals
  • Remove the electric coupler;
  • Using the Philips head 2, open the screws holding the air filter box;
  • Once the air filter box is opened, use the flat head screw - 7mm to loosen the clamp;
  • With the clamp now loose, Detach the rubber air intake pipe;
  • Using the Flank socket 10mm, unscrew the two bolts holding the MAF sensor. MAF is now free and ready for cleaning.

-------------------------------------------------------------------------------------

2) Cleaning the MAF:
  • Once the MAF is removed, first thing to do is - wipe it gently with a damp cloth to remove the dirt/dust before cleaning it with IPA.
  • Put the MAF in the Zip-lock pouch, pour in the IPA.
  • Lock the pouch and shake it gently to loosen the dirt trapped by the mesh;
  • Let it rest for 10-15 mins. Remove the sensor from the pouch and collect the IPA used first time, add some fresh IPA and let it sit for 2-3 minutes;
  • Repeat the above step depending on how dirty the sensor is as it will evident after the first bath
  • Remove the sensor from the IPA bath and let it dry completely.

Last but not the least:
Did check the ECU for any error codes or any such indication but good that nothing came up.
______________________________________________________________

Now I'll let the pictures do the talking:

Air Filter box + MAF
View attachment 189652

MAF Sensor
View attachment 189653

Coupler Removed
View attachment 189654

Air Filter box base
View attachment 189655

Air Intake Pipe
View attachment 189656

Intake manifold side mesh
View attachment 189657

Air filter outlet side
View attachment 189658

Electrical connection in centre
View attachment 189659

MAF - Free for cleaning
View attachment 189660

MAF dipped & soaked in IPA
View attachment 189661

First Bath residue
View attachment 189662

IPA Collected after cleaning
View attachment 189663

Details from ECU - Before & After cleaning the MAF
View attachment 189666

Checked the ECU for any Error Codes, If stored (DTC's)
View attachment 189667

Hope this helps for all who are thinking of attempting to clean this as the ASC's never touch this unless a problem is reported by the customer.

Thanks for reading guys. :)

Sir i will be thankful if you tell which OBD tool u are using and which software on the mobile ?

Last edited by a moderator:
Joined
Jul 13, 2016
Messages
20
Likes
9
Location
Delhi
Hi Anurag,

Let me start by saying that I am a newbee and this is my first post.
I started following a4anurag few months back on and on this as well and I must say you truly love your car.

Swift VDi is my first personal car, 4 years of ownership and driving +85K, I must say I never spent a second on things like detailing or gave a thought on which speaker/AMP or HU I should install in it until I accidentally bump on Team-BHP website and your posts.

Now after reading your posts and love towards your car I am trying to redo all the things in my car as well and I must say I am loving it.

So thank you so much for your detailed posts and I am sure there are thousands of others like me getting inspired from your posts.

Thanks,
Ankur Karanwal

Last edited by a moderator:
Joined
Sep 15, 2016
Messages
10
Likes
0
Location
Gurgaon
Procedure to perform the Cleaning of the MAF is as follows in 2 broad steps:
  1. Removing MAF for cleaning,
  2. Cleaning the MAF.
______________________________________________________________

1) Removing the MAF for Cleaning:
  • Clean the area around the air filter box, MAF and the Air intake pipe (rubber hose);
  • Disconnect the battery terminals
  • Remove the electric coupler;
  • Using the Philips head 2, open the screws holding the air filter box;
  • Once the air filter box is opened, use the flat head screw - 7mm to loosen the clamp;
  • With the clamp now loose, Detach the rubber air intake pipe;
  • Using the Flank socket 10mm, unscrew the two bolts holding the MAF sensor. MAF is now free and ready for cleaning.

-------------------------------------------------------------------------------------

2) Cleaning the MAF:
  • Once the MAF is removed, first thing to do is - wipe it gently with a damp cloth to remove the dirt/dust before cleaning it with IPA.
  • Put the MAF in the Zip-lock pouch, pour in the IPA.
  • Lock the pouch and shake it gently to loosen the dirt trapped by the mesh;
  • Let it rest for 10-15 mins. Remove the sensor from the pouch and collect the IPA used first time, add some fresh IPA and let it sit for 2-3 minutes;
  • Repeat the above step depending on how dirty the sensor is as it will evident after the first bath
  • Remove the sensor from the IPA bath and let it dry completely.

Last but not the least:
Did check the ECU for any error codes or any such indication but good that nothing came up.
______________________________________________________________

Now I'll let the pictures do the talking:

Air Filter box + MAF
View attachment 189652

MAF Sensor
View attachment 189653

Coupler Removed
View attachment 189654

Air Filter box base
View attachment 189655

Air Intake Pipe
View attachment 189656

Intake manifold side mesh
View attachment 189657

Air filter outlet side
View attachment 189658

Electrical connection in centre
View attachment 189659

MAF - Free for cleaning
View attachment 189660

MAF dipped & soaked in IPA
View attachment 189661

First Bath residue
View attachment 189662

IPA Collected after cleaning
View attachment 189663

Details from ECU - Before & After cleaning the MAF
View attachment 189666

Checked the ECU for any Error Codes, If stored (DTC's)
View attachment 189667

Hope this helps for all who are thinking of attempting to clean this as the ASC's never touch this unless a problem is reported by the customer.

Thanks for reading guys. :)
Sir may i know which OBD tool u are using ? nd if u can post the link to the same ! and the phone software please so that it would be easy for us to check our cars

Joined
Sep 15, 2016
Messages
10
Likes
0
Location
Gurgaon
Sir can you provide the link please ? The one which you purchased !![:)][:)]
Because their are tons of them on same name
and I am having Swift VDi 2012 (Without ABS)
