DIY: LED Tail Lamps for Maruti 800


Thread Starter #1
Joined
Mar 28, 2012
Messages
582
Likes
80
Location
Lucknow
I have seen many cars and bikes with led tail lamps. Wanted to make one for my car as a DIY.
Things used:
Soldering iron
Soldering paste and wire
Wire cutter
Blank PCB
Led's

The reverse Light
Connected Led's in a pattern of 4*3


Parking Lights

Reverse and Parking Lights






More pics and updates coming soon . .

Joined
Jun 29, 2010
Messages
813
Likes
39
Location
Chennai
That's quiet interesting. waiting for the update. One thing that irks me is the LED fails often.


Varun560061

Honoured Member
Joined
May 1, 2011
Messages
3,588
Likes
724
Location
Bangalore
Waiting for the end result.. But what about indicators it will start blinking very fast as the voltage consumed will be less.

Thread Starter #4
Joined
Mar 28, 2012
Messages
582
Likes
80
Location
Lucknow
I have not yet tried the indicators on the car. I hope the indicator will not blink fast, as once I had removed the front and side indicators but the rear one was blinking at normal speed. If the LED indicators blinks fast then I'll make an IC based flasher and use it in place of the relay.

Thread Starter #5
Joined
Mar 28, 2012
Messages
582
Likes
80
Location
Lucknow
Today completed all the soldering and placed the PCB's into the back light. While testing the light with a 12v battery the output was like this.

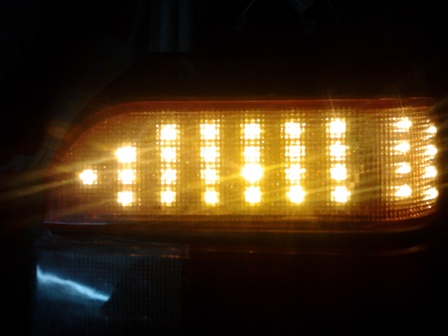

Indicator

Parking light

Brake Light

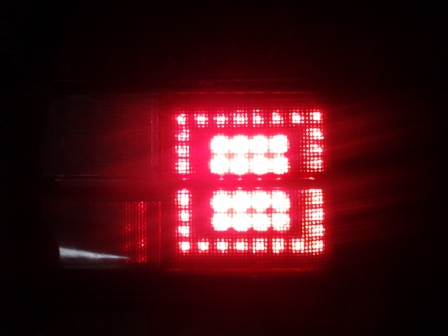

Brake & Parking Light

Reverse Light


Without the cover.


But when I connected the lights to the car, The indicator was glowing very dim [surprise] [cry]. This is because the supply is only for a fraction of second. The bulbs can glow with such a supply but the LED's need a constant 12v supply. I'll try some voltage regulator. If it does not work then I'll have to use bulbs for the indicators. As if I alter the relay or make a IC based relay the indicator blink rate will be slow. . .


Varun560061

Honoured Member
Joined
May 1, 2011
Messages
3,588
Likes
724
Location
Bangalore
Final result is good.. But you could have used higher wattage LED's so that it would be more brighter.

For park and brake lamp you could have used smd's or may be more number of LED's..
BTW : Have you used resistors or connected them in serial ?

Thread Starter #8
Joined
Mar 28, 2012
Messages
582
Likes
80
Location
Lucknow
Thanks Varun,
I have used Higher wattage LED's in Reverse and stop lights. The other LED's are smaller but SMD type LED. I have not yet tested the lights in night. But I have packed the Lights using fevibond. [frustration] Will try and post the results soon.

Thread Starter #11
Joined
Mar 28, 2012
Messages
582
Likes
80
Location
Lucknow
Thanks all, I'll upload a video soon . .

@ Varun I have not used any resistor, but connceted them in series of 4 LED's

After installing the lights on the car

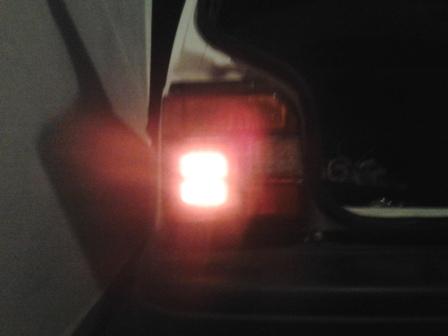

LED brake Light

Stock Brake Light

LED Parking Light

Stock Parking Light

LED Indicator

Stock Indicator

LED Reverse Light


Will take a video and photos in daylight and upload them soon.

Thread Starter #14
Joined
Mar 28, 2012
Messages
582
Likes
80
Location
Lucknow
Thanks for the reply Arjun,

Presently I have Installed LED lights only in the rear. The rear Indicators are working fine.
BTW: the product is nice & useful.
I'll soon install front LED indicators. If they blink fast I'll have to surely buy one or try making one myself.
