DIY FIBERGLASS Sub Woofer Enclosure, Speaker Box for my Scorpio


Thread Starter #1
Joined
May 13, 2011
Messages
67
Likes
7
Location
chennai
hi every one,
i am starting this threat to show how i did my sub encloser[:)] and speaker box in my scorpio. i also changed my door pads colour

mateials and cost:
1. sub woofer encloser box - i allready had one
2. plywood - SQ feet cost me Rs.33 i got 4X6 but i didn't use it fully
3. wood stapler - Rs.325
4. old t-shirt
5. fiber glass mat - Rs.200 per kg i got 2Kgs
6. fiber glass resin - Rs.120 rs per kg got 4Kgs
7. fiberglass activater - 100ml Rs 150
8. fiberglass hardner - 100ml Rs 200
9. rexine mat for door padding Rs 250 for 2 sq meters
10. fevical SR for sticking mat to door pads Rs 100

first Picture before of my old box and door pads


Attachments

Thread Starter #3
Joined
May 13, 2011
Messages
67
Likes
7
Location
chennai
I started by cutting the top of the woofer box and made a pentagon out of the same wood and positioned it with a support. Then took an old banian and wrapped it with that. On the other hand I started my speaker box too. I had to normal folds which were used to fix to speaker in the doors. I joined both that in by plywood on its back and check that my speakers will fit, then I made a base for that, decided how I want that to look like and positioned it on the base. Once again the same wrapped it with a shirt. but at that time i didn't have wood stapler [frustration]used small nails.


Attachments

vijay

Moderator
Joined
Aug 23, 2009
Messages
3,135
Likes
788
Location
Ahmedabad
intresting, would also like to see did you did any sound dampening on your doors as well, awaiting to see the complete project.

Thread Starter #6
Joined
May 13, 2011
Messages
67
Likes
7
Location
chennai
@truecitylover: you are right. You can just pull the cloth in the way you want and press the trigger pin comes out like a bullet penetrates the wood and hold the stuff in place. If possible in the next post I will post my stapler's pic in the next threat.


Attachments

Thread Starter #7
Joined
May 13, 2011
Messages
67
Likes
7
Location
chennai
Here is some more picture of my WORK [thumbsup] . i got a new wrap for the door pad and now it look better. i will post that pic soon.s


Attachments

Joined
Sep 12, 2009
Messages
4,036
Likes
247
Location
Pondicherry
MAN you are just revealing our jobs!

method is 100% perfect

But the sub box and collor are wood. why u need a fibre glass only on top.
imo entire thing must be made in fibre glass to reduce space and take shape of the car!

Thread Starter #9
Joined
May 13, 2011
Messages
67
Likes
7
Location
chennai
ilango[speed thirst];78630 said:
MAN you are just revealing our jobs!

method is 100% perfect

But the sub box and collor are wood. why u need a fibre glass only on top.
imo entire thing must be made in fibre glass to reduce space and take shape of the car!
Actually I didn’t have any experience that time that is my first DIY. So I thought of trying some thing that it and now I thinking of going it the way you said[cheers]


Akash

Core Team
Joined
Sep 22, 2009
Messages
6,346
Likes
451
Location
NYC
Excellent DIY job Thomas.

DIY stuff needs a lot of patience for proper execution, which you seem to have in abundance.

Joined
Sep 12, 2009
Messages
4,036
Likes
247
Location
Pondicherry
yeah you need patience and tools to smoothen the outcome of fg .
then putty work to mould them

Your door pad looks too rough , good for a diy.

WORKING with FIBRE GLASS IS HIGHLY CARCINOGENIC. esp while grinding them

Joined
Sep 12, 2009
Messages
4,036
Likes
247
Location
Pondicherry
yeah you need patience and tools to smoothen the outcome of fg .
then putty work to mould them

Your door pad looks too rough , good for a diy.

WORKING with FIBRE GLASS IS HIGHLY CARCINOGENIC. esp while grinding them

Thread Starter #15
Joined
May 13, 2011
Messages
67
Likes
7
Location
chennai

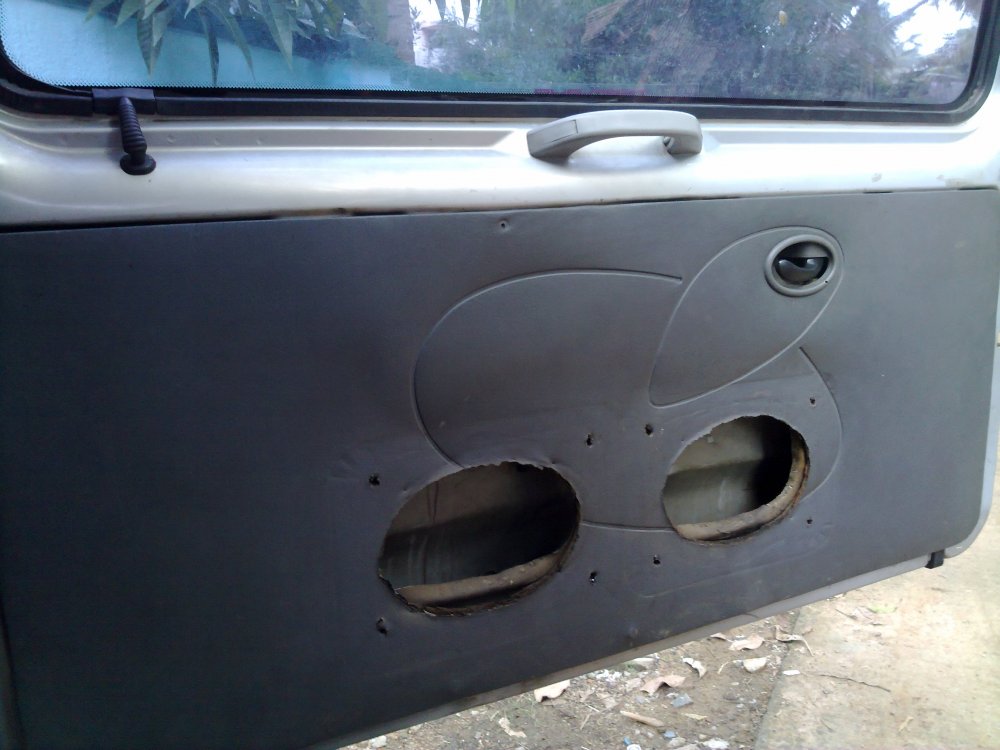

@ilango[speed thirst]: i have changed my door pad now once again and i have wrapped my speaker box with the same stuff i used for the pad.

@auto luver: i will come up with the pic soon by the next post possible.

@akash: thanks dude. i will soon post my othe DIY i did.

really thanks for all you peoples reply. THANK YOU.
