Hello friends, this is my current DIY for my friend who owns a Fiat Uno.

His gear boot plastic frame was broken. You people know that the Uno parts are difficult to get. He searched for the gear boot, but never found a good one. So am going to help him. I am only making the plastic frame for it. The leather part can be reused.


Started detaching the plastic frame parts

Broken parts of the frame. am going to glue them. So that i can measure the size.

Glued.

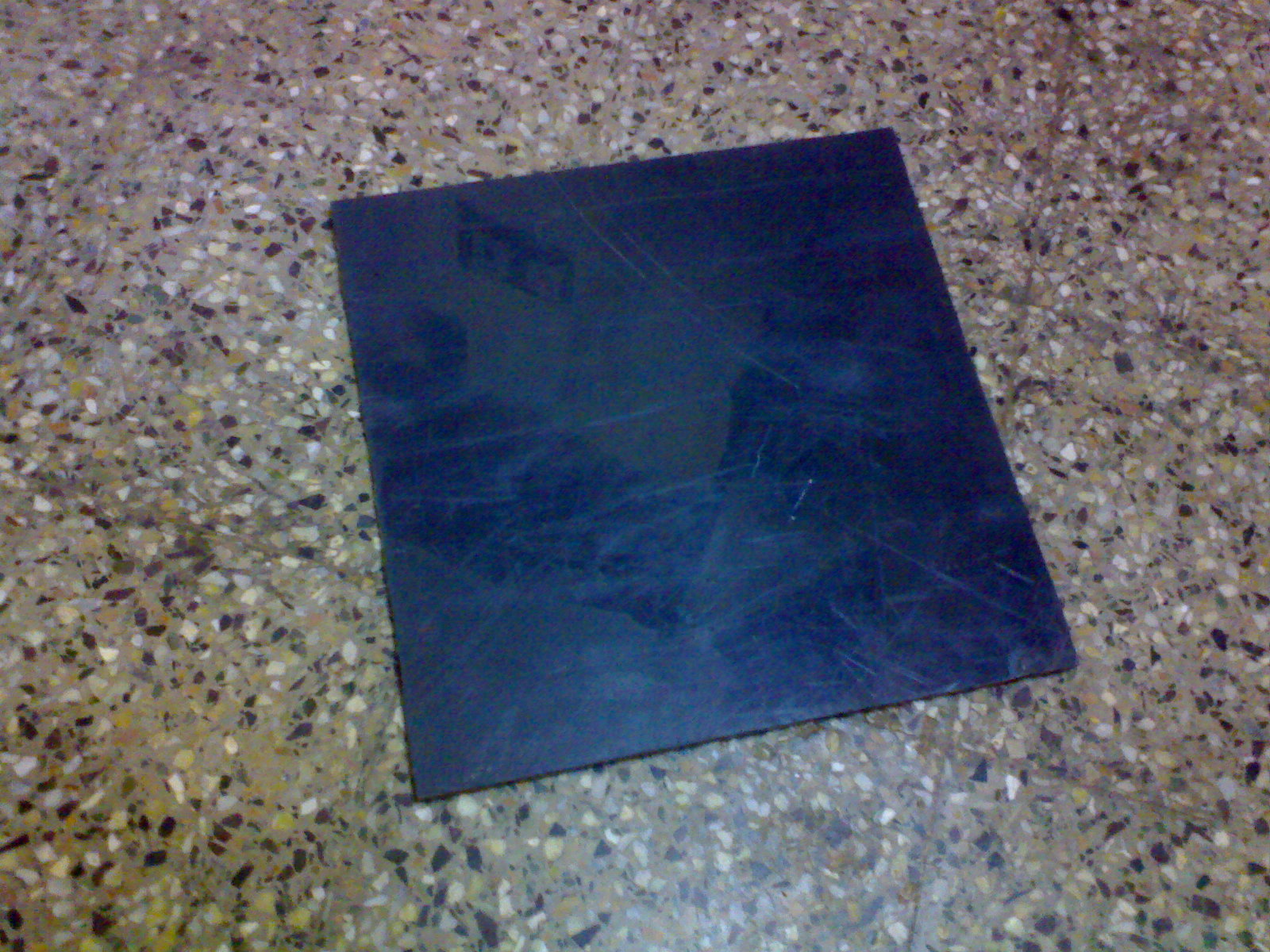

Bought one Sq. feet of plastic sheet with thickness 5mm.


[;)] My Dremel 300 series rotary tool. Recently bought. Very useful powertool for a DIYer.


Finished cutting the required size.





Am leaving the side wall with that much thick so that it will be strong.

Now i have to make the legs which holds the frame in the center console.
Will keep you updated.

Joined
Nov 1, 2010
Messages
4,237
Likes
371
Location
Kannur,Kerala
Re: DIY- Fiat Uno Gear Boot Frame Making

awesome work dude,
DIY heaven!!
keep it coming.
do let us know the name and procurement details too.

Joined
Jun 22, 2011
Messages
321
Likes
7
Location
Pune
Re: DIY- Fiat Uno Gear Boot Frame Making

Hats off sreejeshtpl !
Simply amazing. I should mention here that you are well equipped for DIY.
Please keep us updated.


350Z

Core Team
Joined
Aug 10, 2009
Messages
18,409
Likes
6,164
Location
New Delhi
Re: DIY- Fiat Uno Gear Boot Frame Making

Just came across this thread. Another commendable DIY. Can you please update us?

Drive Safe,
350Z

Thread Starter #6
Joined
Jun 20, 2011
Messages
185
Likes
97
Location
Bangalore/Thrissur
I made four legs out of the plastic sheet. but in the power test they failed.[cry]

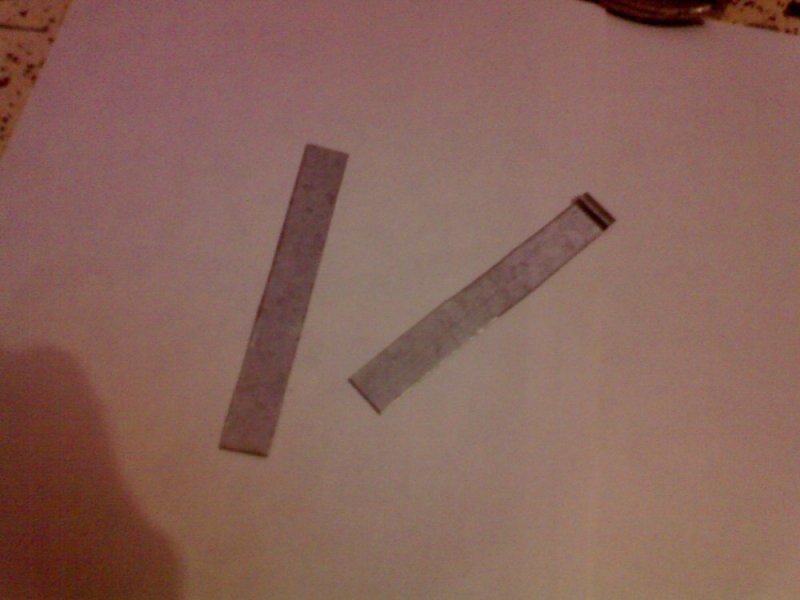

So I searched for other material and found one metal sheet. The plan was to cut and make the legs and rivet it with the plastic sheet.
