1998 Yamaha RX135 Restoration: Completed


#31
S

shivmagesh

V2
#31
Joined
Apr 27, 2014
Messages
3
Likes
0
Location
chennai
Yamaha RX135

Hi all,

Yesterday i bought a Yamaha Rx135 98 model and planned to reconfigure it can you suggest me the best for the yamaha especially in the parts like. Type of battery,tyre,spark plug,chain type,engine oil.

Give me your valuable suggestions.

Thanks,

Mack:)[:)]

Last edited by a moderator:
#32
Ambylovers

Ambylovers

V10
#32
Joined
Sep 28, 2011
Messages
1,253
Likes
608
Location
Coimbatore
Hi Shivmagesh,
Welcome Onboard to TAI group. Below were the details of my RX135,
Tyres : MRF.
Battery : Exide (Dont go for Amaron, it will not work for RX Bikes).
Spark Plug : Bosch.
Engine Oil : Castrol 20/40 always.

Above mentioned were only the details of my ride and its just a suggestion for you. Try analysing further and proceed your Restoration.
So Hows is the Engine? Whether you are going to rework that too?

Thread Starter #33
Mr.Boss

Mr.Boss

V10
#33
Joined
Mar 28, 2011
Messages
2,924
Likes
2,199
Location
Madras
Ambylovers said:
Battery : Exide (Dont go for Amaron, it will not work for RX Bikes).
Click to expand...
Any specific reason? I'm sung AMARON in one of my RX and the other is running with AMCO and I don't find any issues with them. Earlier before restoration I was using a 3 year old AMCO battery without any problem (both in terms of charging and output)

#34
S

shivmagesh

V2
#34
Joined
Apr 27, 2014
Messages
3
Likes
0
Location
chennai
Hi Bro,

Please find attached file for complete yamaha catalogue

Thanks,
With Regards,
Mack.

Ambylovers said:
Hi Shivmagesh,
Welcome Onboard to TAI group. Below were the details of my RX135,
Tyres : MRF.
Battery : Exide (Dont go for Amaron, it will not work for RX Bikes).
Spark Plug : Bosch.
Engine Oil : Castrol 20/40 always.

Above mentioned were only the details of my ride and its just a suggestion for you. Try analysing further and proceed your Restoration.
So Hows is the Engine? Whether you are going to rework that too?
Click to expand...
yes,due to some noise we are forced to work on engine too

Mr.Boss said:
Confused!! Which color should I go with?
1) Blue - matching the body color
2) Silver - matching the YAMAHA & YEIS stickers

View attachment 128743
Click to expand...
silver[:)]


Attachments

Last edited by a moderator:
#36
Ambylovers

Ambylovers

V10
#36
Joined
Sep 28, 2011
Messages
1,253
Likes
608
Location
Coimbatore
Mr.Boss said:
Any specific reason? I'm sung AMARON in one of my RX and the other is running with AMCO and I don't find any issues with them. Earlier before restoration I was using a 3 year old AMCO battery without any problem (both in terms of charging and output)
Click to expand...
Hi Mr.Boss,
In Bangalore(Singasandra) and Hosur the dealer of Amaron refused to give the batteries for RX bikes. They got many complaints and since its replaceable warranty, all the time they replaced it seems.
It will be a loss to them and for that only they are not offering here.

Thread Starter #39
Mr.Boss

Mr.Boss

V10
#39
Joined
Mar 28, 2011
Messages
2,924
Likes
2,199
Location
Madras
It is more than 8 months without any updates on this thread.
Almost an year passed after restoration and bike clocked only 3k km (blame the other RX couples and Sunny) Now it's time to do something on the bike. Safety first, and to start with the brakes. Upgrading to Front Disc Brake very soon (after completing the pulsar project) All necessary parts procured long back and kept idle do to various commitments. Watch out for more upgrades [:)]

Thread Starter #41
Mr.Boss

Mr.Boss

V10
#41
Joined
Mar 28, 2011
Messages
2,924
Likes
2,199
Location
Madras
dj_kirin said:
Do you know of any shop that can ship RX135 parts to Singapore?
Click to expand...
I'm not sure if you could get parts from India to Singapore. RX is so popular in South-East Asian countries and why don't you try sourcing from Malaysia / Indonesia?

Thread Starter #42
Mr.Boss

Mr.Boss

V10
#42
Joined
Mar 28, 2011
Messages
2,924
Likes
2,199
Location
Madras
I got some free time to work on my RX again.

Oil pump was leaking and I couldn't get the oil seal for a while. A couple of weeks back when we went around hunting parts for RX100 restoration, fortunately we got a couple of oil seals. Last evening I opened the Oil pump and found oil is leaking at both the oil seals and packing.

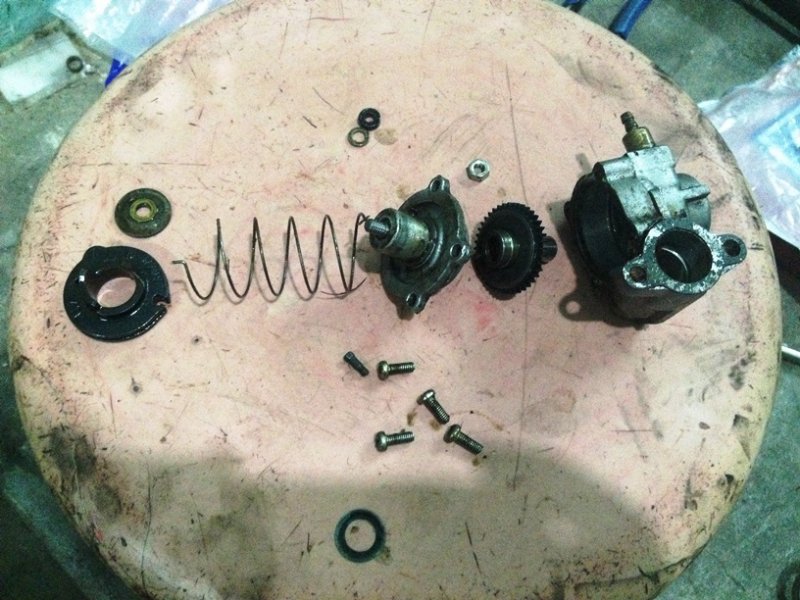

Pump taken out

Dismantled it completely and cleaned them with petrol.

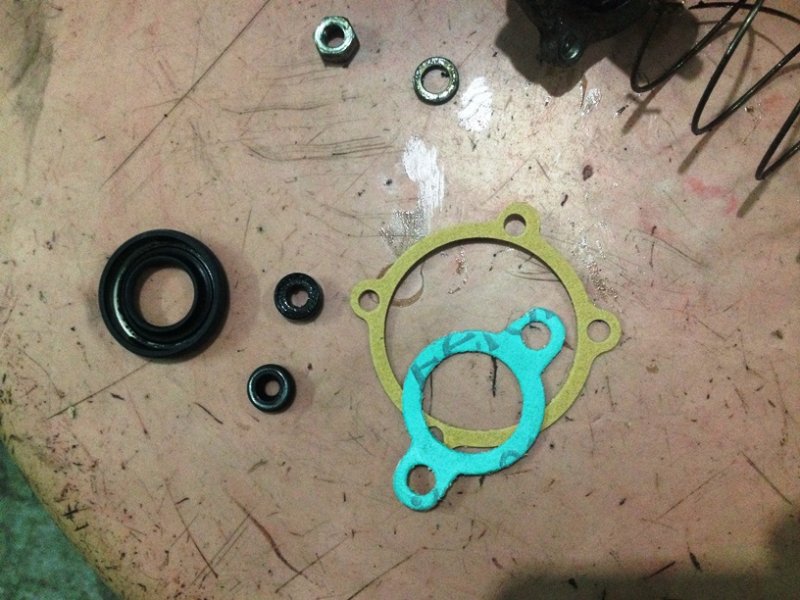

Oil seals


New oil seal and packing

Assembled them back, fitted to the vehicle and confirmed it is working well[:)] Let me monitor for few hundred kms and keep this thread updated.
