fantastic work to give a fresh update to the safari.[cheers].I can understand how paint work can eat away hours during preparation state .But the final finish just evaporates the hardwork put in to get the desired finish
Thanks!
I like your rim painting work very much.Good honest job there!! Very meticulous too.
Thanks !
It looks like you always get assistance from your staff/house worker ,as seen in all the numerous pics posted so far .He gets the hard part of labour.Nothing wrong in it. Lucky you!
Yes. Buddy is good for coarse work. Especially lower grit sanding where a lot of material has to be removed for flattening scars & Scratches. Upper sanding & all Painting is by me.
Nope. Generally dad drives it.
XUV is due for 1L service. Which looks like some major service.

Joined
May 16, 2014
Messages
1,008
Likes
1,788
Location
kanpur

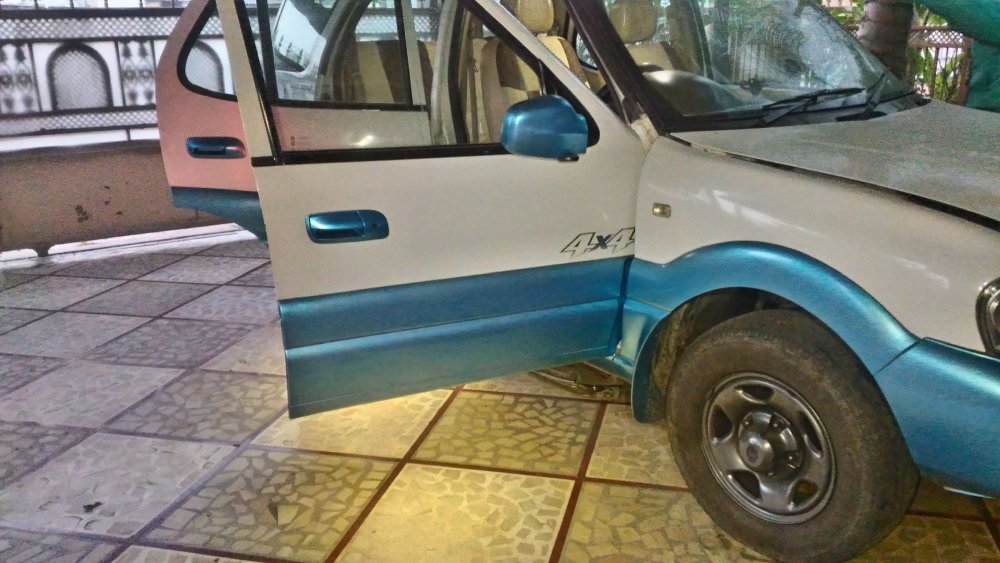

IMO matt graphite gels better than the blue for claddings.
100% AGREE!!
I have been shouting from the rooftops all this while,for this only!! Just look at my post no=118.
Here I am quoting my own post...


"The safari in the start of your post 115 is looking beautiful and is a good example of it.You have already made such a huge effort,now maybe just switch to a better colour scheme.
p.s It was not intended to damp your spirit,but just my opinion.Even if you don't agree with me ,I am now,and still will be 100% with you in your project. "

Last edited:
Thread Starter #214
Joined
Oct 15, 2011
Messages
4,862
Likes
4,149
Location
Some Village
IMO matt graphite gels better than the blue for claddings. Again, just my opinion
100% AGREE!!
I have been shouting from the rooftops all this while,for this only!! Just look at my post no=118.
Here I am quoting my own post...
I am aware of this.

Graphite body trims are reserved for 2nd innings with the beast.
But then my Blue elephant will be come African (Grey) elephant.[surprise]

Thread Starter #215
Joined
Oct 15, 2011
Messages
4,862
Likes
4,149
Location
Some Village
b17- DIY Noise & Heat Insulation for doors -

Since having both XUV & Safari in one garage, I was always bothered about High NVH from the Safari. There is night and day difference although both use the same 2.2 Block developed by AVL.
I thought I would be wise to try some DIY insulation and add to the royal feel.

Damping vs Insulation-
Damping means adding mass to the panel to change its resonant frequency. This is useful to minimize buzzing and vibration if you have High powered audio system.
Insulation means adding an absorbent/Spongy layer between the source and your cabin to Minimize transmission or Absorb the Sound. Sound Insulation also often works as Heat insulation.

Material Choice-
The material chosen was Neoprene. This is a closed cell foam with excellent Noise & Heat insulating properties. Does not absorb water like yoga mats. And Is very easy to work with.

Part 1 Cutting all the pieces to size-


2. Sticking the foam. I used Rubber adhesive like Fevicol SR or Speb 7.
The foam was Glued on the interior of Door pads, as well as Insides of doors. This will give me 2 layers of Excellent insulation. The Already Solid doors of Safari now close like a tank.

Every nook and cranny foamed up.



This is not a shop! Its how I placed weights to let the glue settle overnight-

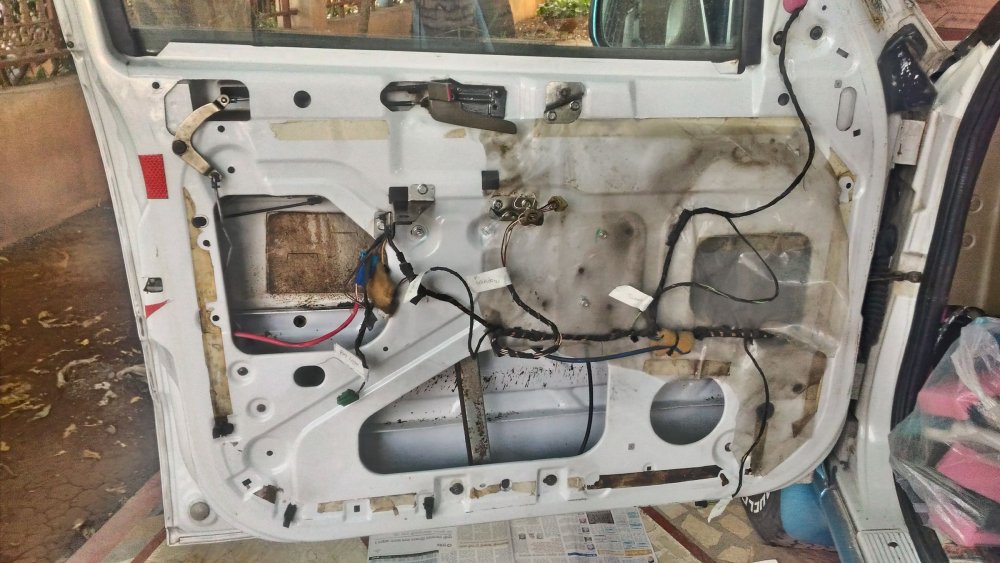

Insulation glued on internal metal sheet-




How a ready door pad looks-



Attachments

Last edited:
Thread Starter #217
Joined
Oct 15, 2011
Messages
4,862
Likes
4,149
Location
Some Village
4. Perks and niceties-
They say, Insulation is all about Luxury & Finesse. Then It would not make sense to keep any rough edges around. The perks and niceties involved focusing on smaller aspects.

The hole behind ORVM mount was filled with 3 layers of Foam. There was a hole within hole within Hole. So 3 layers. All glued nicely. This hole solved most of the howling wind noise everyone has been complaining of (In safari) at 100+ Kmph.
Minorly rusty ORVM bolts were dabbed with Varnish.



Any Possible rattling or Creaking attachments were filled with a support of Foam to prevent so.



AC ducts were sealed with tape once again to prevent AC air leakage or Dust/Noise entry.


Attachments

Thread Starter #218
Joined
Oct 15, 2011
Messages
4,862
Likes
4,149
Location
Some Village
b18- LED puddle lamps for all doors.

Xuv comes with nice & white puddle lamps for every door. However they are a little on the weaker side. Safari comes with Incandescent bulbs but only on front 2 doors. Lets take our DIY 2 steps forward, shall we?

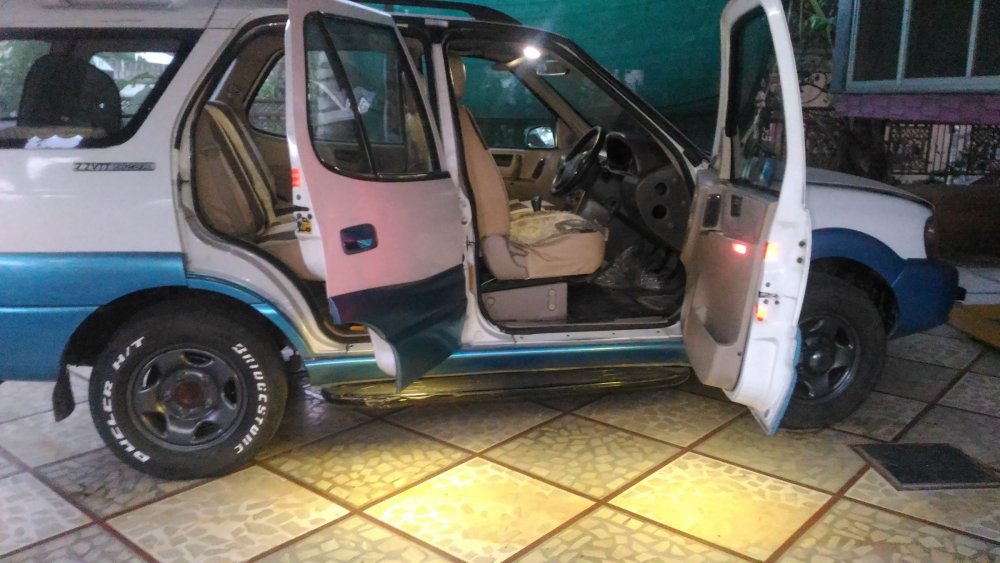

The Pics are mostly self explanatory. I have used a section of 5050 LED strip in Warm white Color (looks more royal IMO). The section of each strip was simply glued to the bottom of Door panel where it would not block or Hit anything. Then the power was simply taken from Red light circuit thats present on each door. I did forget taking Working & Soldering pics.
The LED strip consumes just 2W per door and has been working flawlessly, whilst being significantly brighter than any factory puddle lamps I've seen on a car!


Joined
Oct 7, 2015
Messages
283
Likes
324
Location
Bengaluru
My my my what a detailed workmanship ! absolutely love the details.Small things make big difference.The puddle lamp work is simply superb ..one thing about insulation when water seeps during rain won't it retain moisture and cause dampness of the metal causing it to rust faster ?

Thread Starter #221
Joined
Oct 15, 2011
Messages
4,862
Likes
4,149
Location
Some Village
Thanks! I'm glad you liked.
one thing about insulation when water seeps during rain won't it retain moisture and cause dampness of the metal causing it to rust faster ?
No. Closed cell foam does not hold moisture like open cell material (Aka Sponge).
I have seen this material being used by Bus/ Coach builders. Its quite robust and troublefree.
Quote below-
Material Choice-
The material chosen was Neoprene. This is a closed cell foam with excellent Noise & Heat insulating properties. Does not absorb water like yoga mats. And Is very easy to work with.
Note- DO NOT use yoga mats for damping!!
